iris-python-apps Works

Summary

IRIS Dashboard build by using embedded python with the help of Python Flask Web Framework.
Application also demonstrates some of the Python functionality like Data Science, Data Plotting, Data Visualization and QR Code generation.

Features

• Responsive bootstrap IRIS Dashboard
• View dashboard details along with interoperability events log and messages.
• Python plotting from IRIS
• Use of Jupyter Notebook
• Introduction to Data Science, Data Plotting and Data Visualization.
• QR Code generator from python.

Application Layout

Dashboard

Tables Data

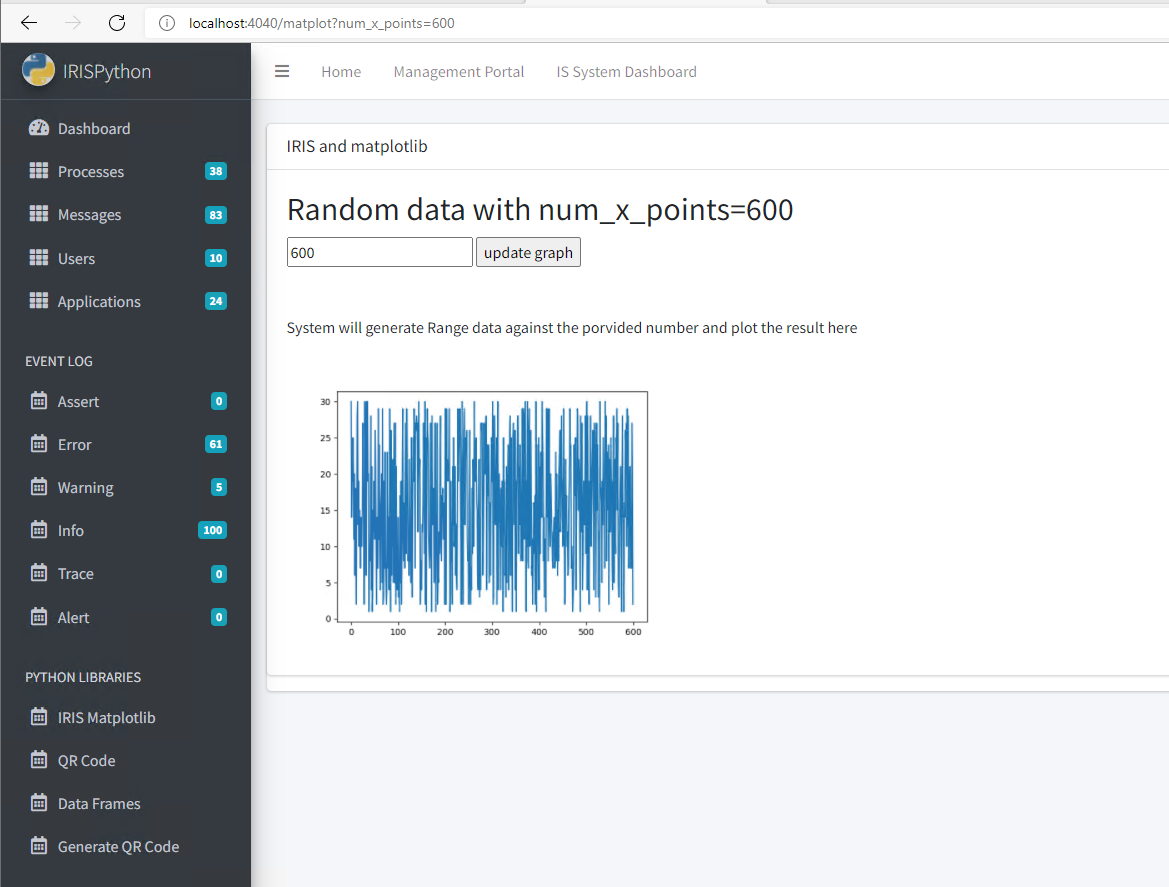

Plotting with Python matplotlib library

Introduction to Data Science by using jupyter Notebook

Dataploting by using python matplotlib Library

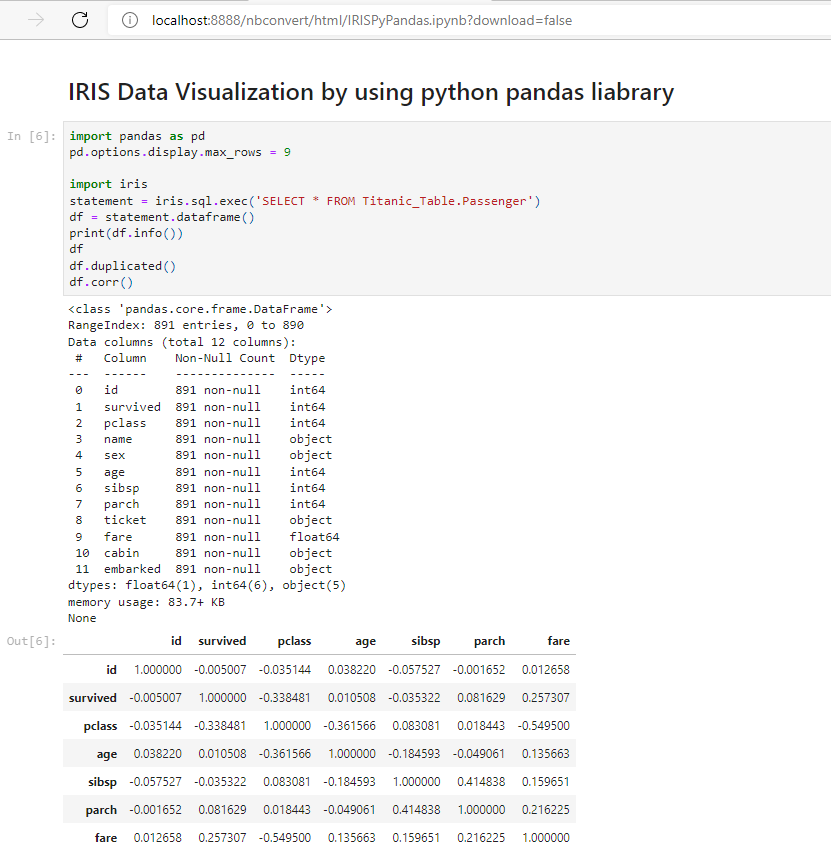

Introduction to Data Visualization by using jupyter Notebook

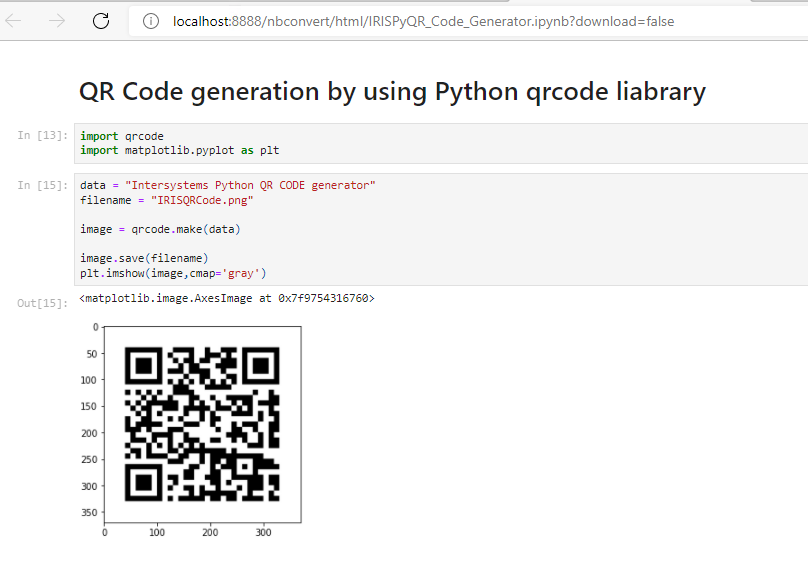

QR Code generation with Python

Recommendation

• Read related documentations Embedded Python Overview.

Installation

1. Clone/git pull the repo into any local directory

git clone https://github.com/mwaseem75/iris-python-apps.git

2. Open a Docker terminal in this directory and run:

docker-compose build

3. Run the IRIS container:

docker-compose up -d

To run the application Navigate to http://localhost:4040
