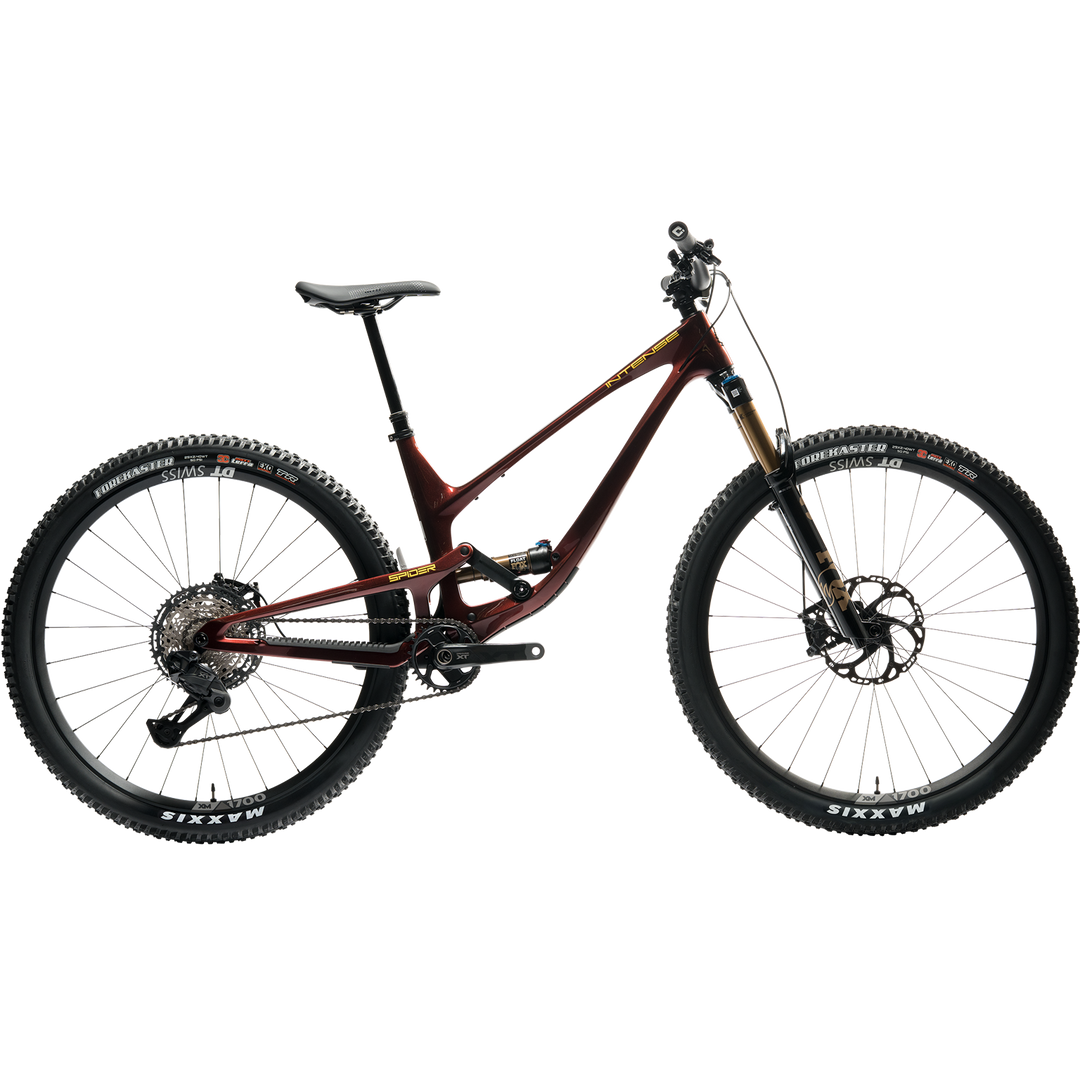

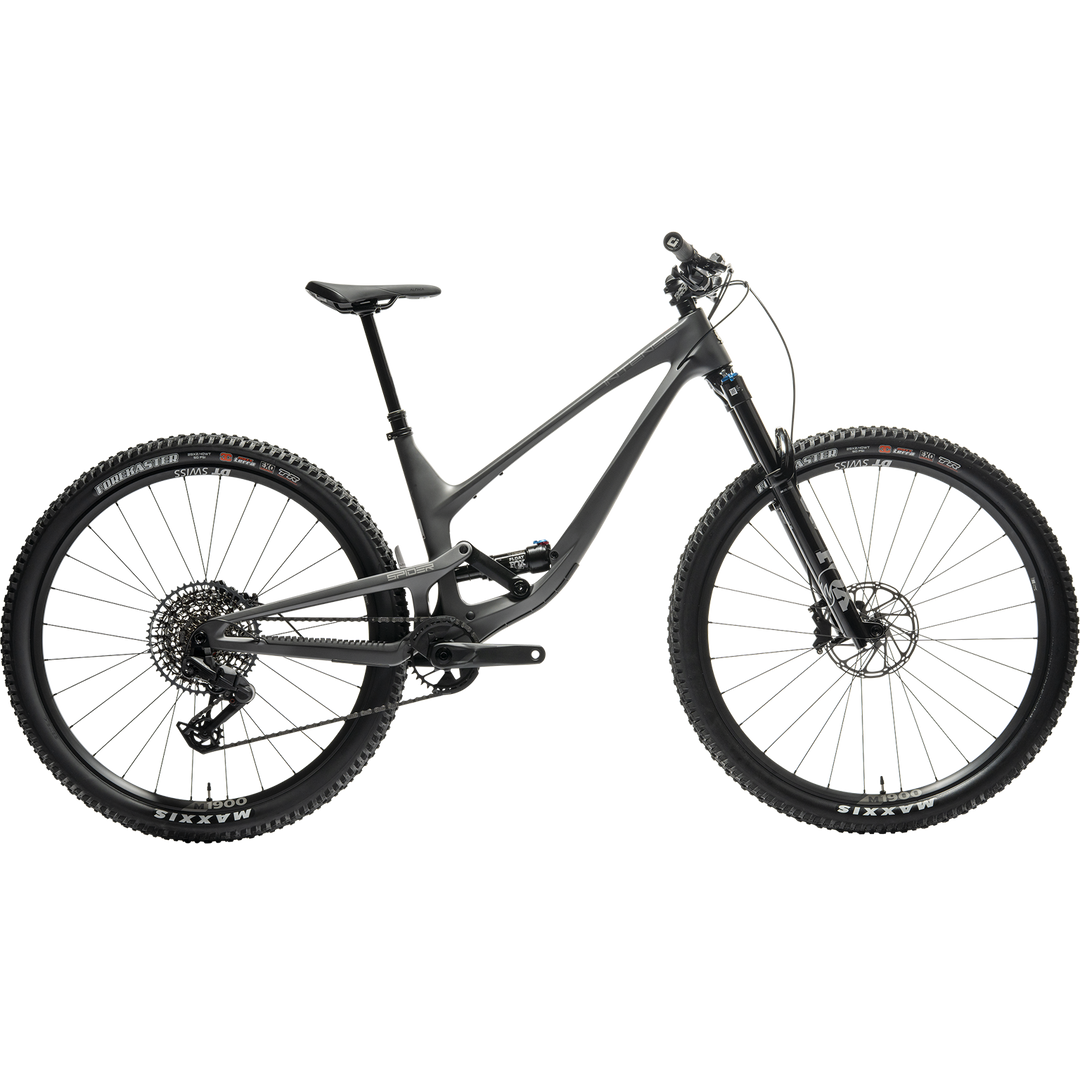

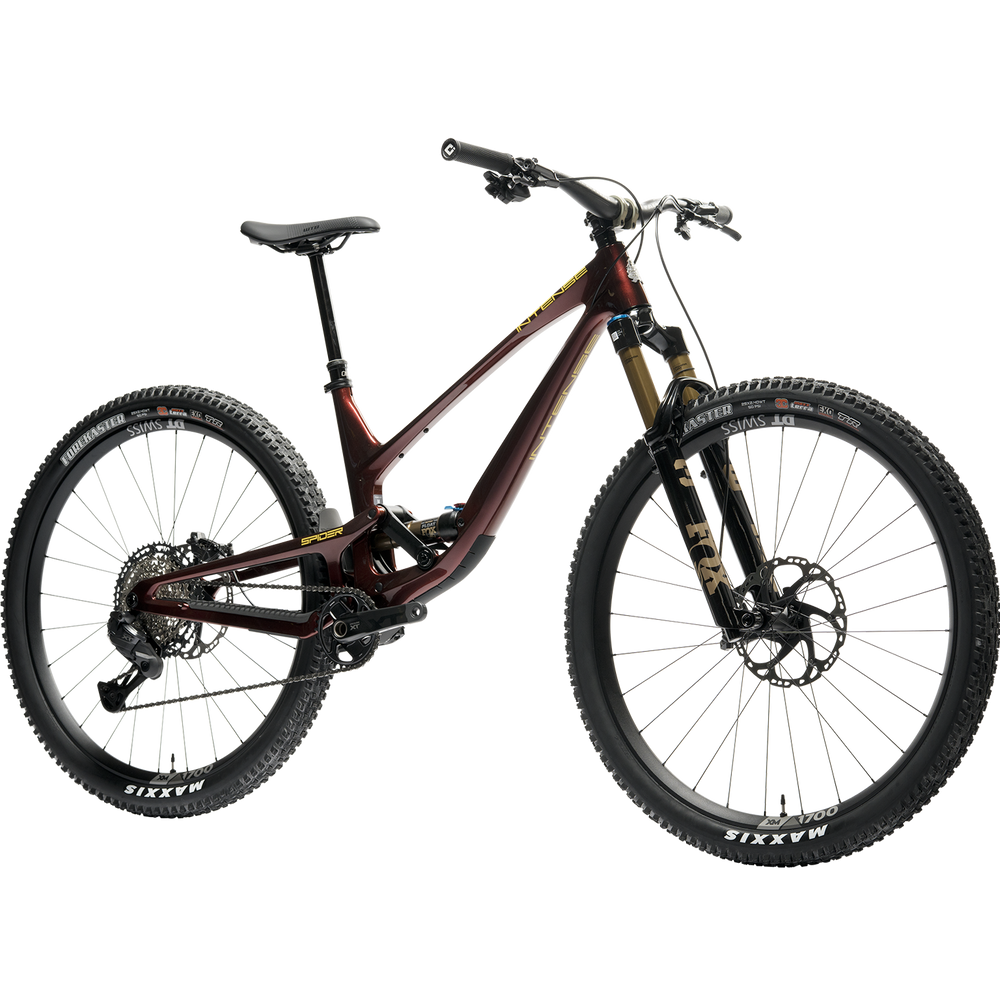

TRAIL | 130mm/130MM | 29" wheels
Forged from decades of racing heritage and innovation, the all-new Spider is our answer to what modern trail riding demands. With speed, control, and relentless capability, it's light on its feet yet formidable on technical terrain. The Spider moves with calculated precision, striking the perfect balance between efficiency and aggression.
With 130mm of precisely tuned front and rear travel on a full 29” platform, it thrives on all-day epics while carving clean, confident lines through the most demanding sections of trail. At it's core is the Dual Co-Rotating Link (DCR) suspension system. Engineered for exceptional pedaling efficiency, traction, and controlled, progressive travel. Combined with modern, confidence-inspiring geometry, the Spider is always poised to strike.
Bring your All-New Custom Spider build to life, with our 3D Configurator
| Frame Size | SM | MD | LG | XL |
| Reach | 430mm | 455mm | 475mm | 505mm |
| Headtube Angle | 65° | 65° | 65° | 65° |
| Seattube Angle (Effective) | 78° | 78° | 78° | 78° |
| Seattube Angle (Actual) | 74° | 74° | 74° | 74° |
| Wheelbase | 1177mm | 1206mm | 1230mm | 1264mm |
| Chainstay Length | 435mm | 435mm | 435mm | 435mm |
| Front Center | 742mm | 771mm | 800mm | 829mm |
| BB Height | 336mm | 336mm | 336mm | 336mm |
| Stack | 602mm | 612mm | 620mm | 630mm |
| Toptube Length | 557mm | 585mm | 607mm | 639mm |
| Headtube Length | 100mm | 110mm | 120mm | 130mm |
| BB Drop | 38.5mm | 38.5mm | 38.5mm | 38.5mm |
| Seattube Length | 390mm | 415mm | 440mm | 465mm |
| Max Seatpost Insertion Depth | 215mm | 250mm | 275mm | 300mm |
*Based off a 537mm axle to crown, 44mm offset fork // **Based off front tire OD of 750mm, rear tire OD of 750mm
| Model Year: 2026 |
| Category: Trail |
| Available Sizes: S, M, L, XL |
| Available Colors: Oxblood Red, Satin Gray, & Chalk White |
| Frame Weight (No Shock): (S) 5 lbs 12 oz / 2.61 kg | (M) 6 lbs / 2.72 kg | (L) 6 lbs 3 oz / 2.80 kg | (XL) 6 lbs 6 oz / 2.89 kg |
| Headset: ZS44 Upper / ZS56 Lower |
| Seattube Diameter: 31.6mm |
| Seatpost Clamp: 36.4mm |
| Max Seatpost Insertion Depth: (S) 215mm | (M) 250mm | (L) 275mm | (XL) 300mm |
| BB Shell Width: BSA 73mm |
| Rear Hub Spacing: 148mm x 12mm Thru-Axle Boost |
| Max Front Travel: 130mm |
| Max Rear Travel: 130mm |
| Non-Compatible Shocks: All Coils | FOX Live Valve, X2 | RockShox Flight Attendant, Vivid Air |
| Shock Size: 210mm x 50mm |
| Front Shock Mount Hardware: 8mm x 30mm |
| Rear Shock Mount Hardware: 8mm x 20mm |
| Max Chainring: 34T |
| Chainline: 52mm Shimano 12S | 52mm SRAM Eagle 12S | 55mm SRAM T-Type 12S |
| Derailleur Hanger: UDH |
| T-Type Compatible: Yes |
| Recommended Max Tire Width: 2.5" |
| Type: Disc Brake Hydraulic, Post Mount / Direct |
| Min Rotor Size: 180mm |
| Max Rotor Size: 203mm (with adapter) |
Strikingly Precise.

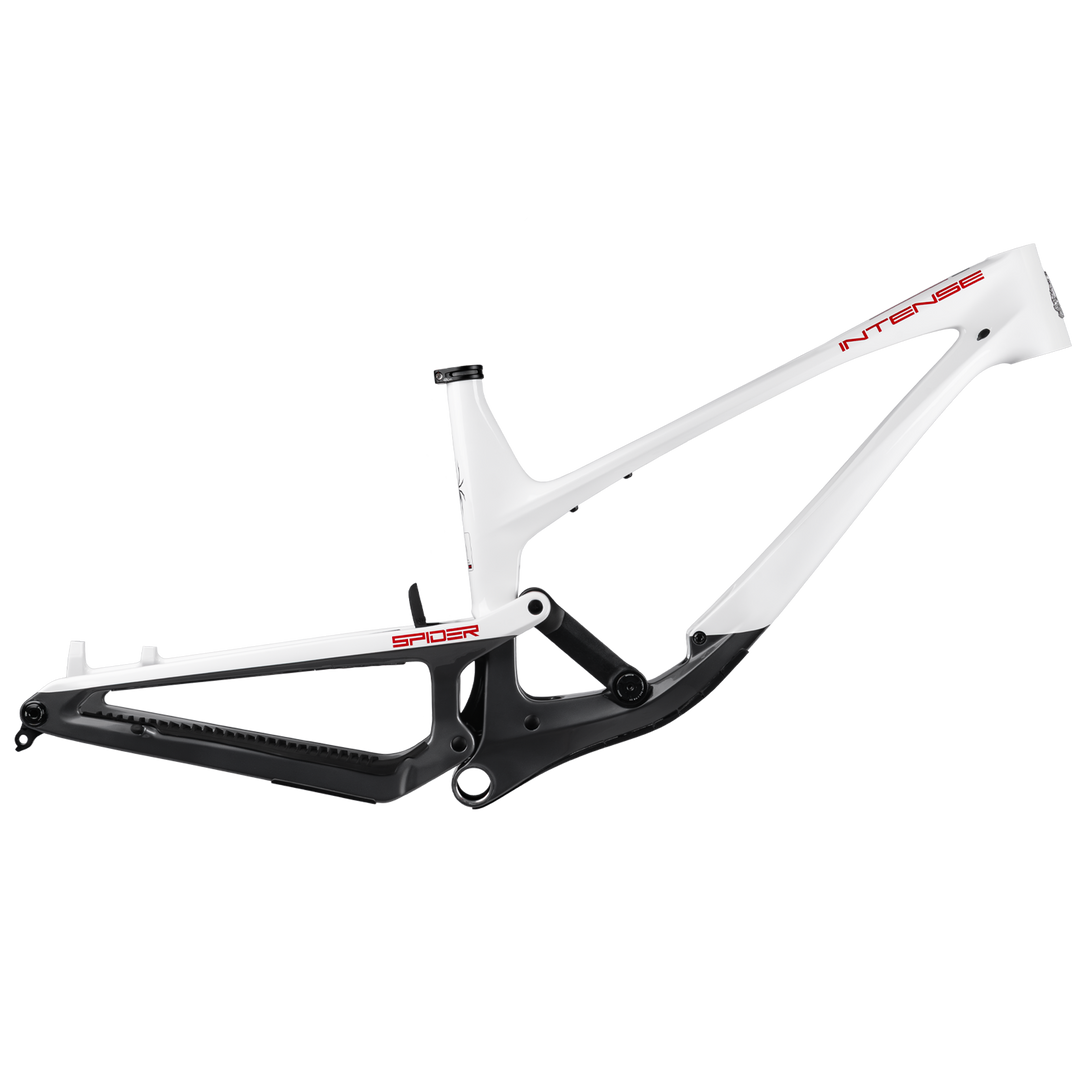

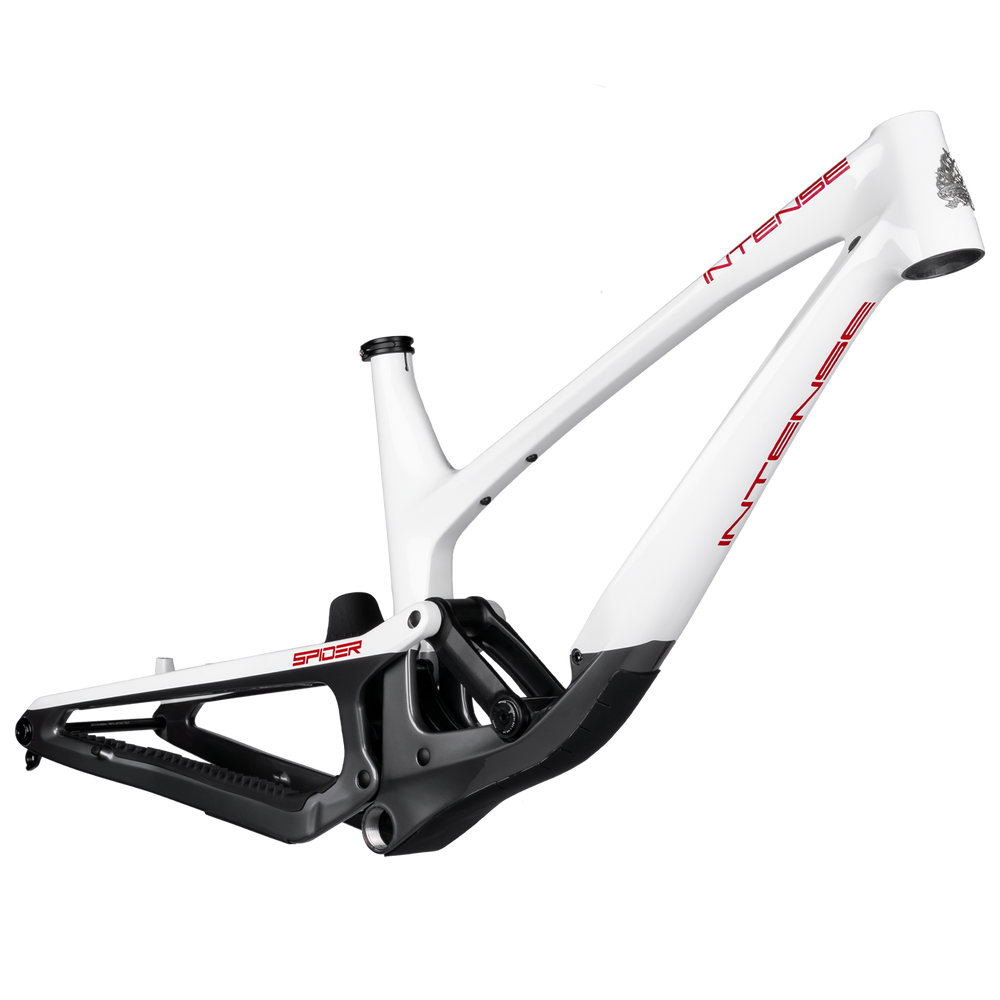

The new INTENSE Spider has arrived—redefining what a trail bike can do. More than an update, it’s a completely reimagined carbon frame, shaped by decades of INTENSE engineering and innovation. At its core, the DCR Link suspension system is tuned to maximize pedaling efficiency while maintaining consistent traction and control. With limit-pushing geometry and a lightweight carbon frame, the Spider delivers precision, stability, and speed.
FEATURES

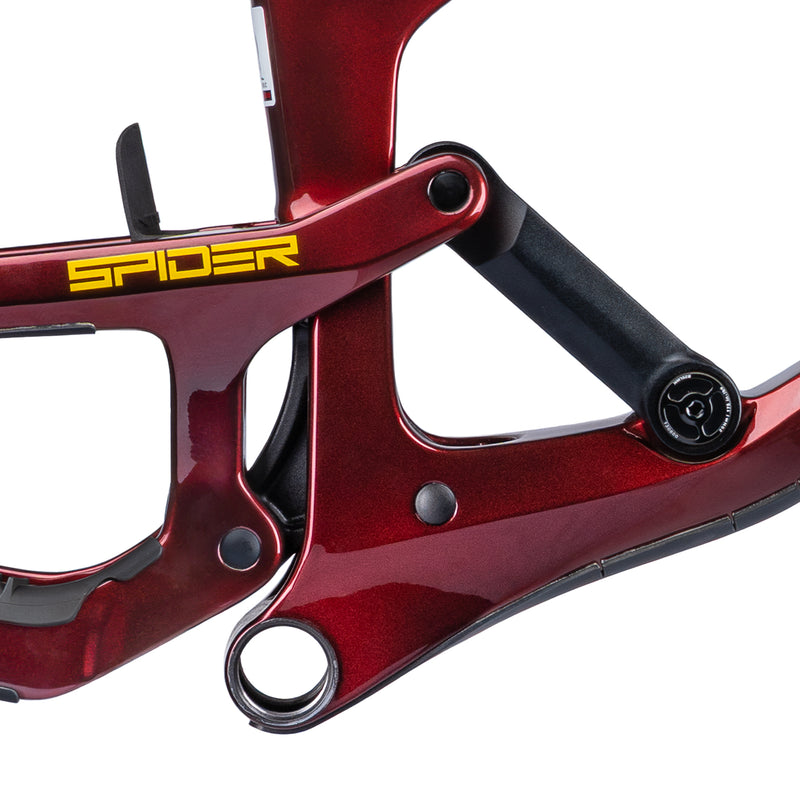

Dual Co-Rotating Link Suspension
Our Dual Co-Rotating Link (DCR) suspension keeps the chassis low, calm, and planted, so the bike tracks the ground and gives you incredible cornering traction, yet still feels playful, and highly active when you push into the trail.

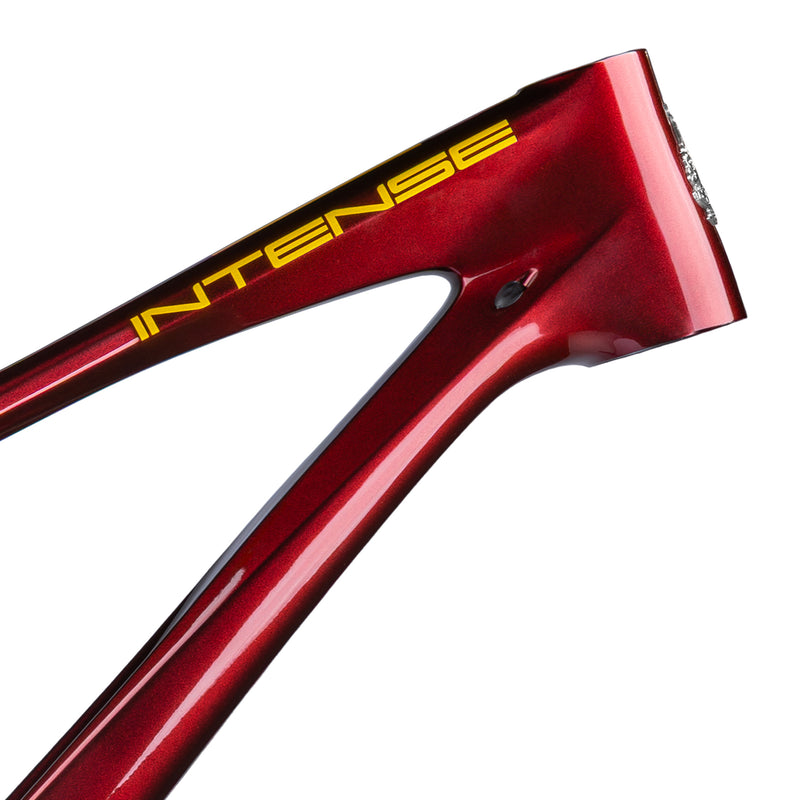

Internal Cable Routing
Fully internal cable routing keeps the frame clean, organized, and quiet while protecting your cables from wear and the elements.

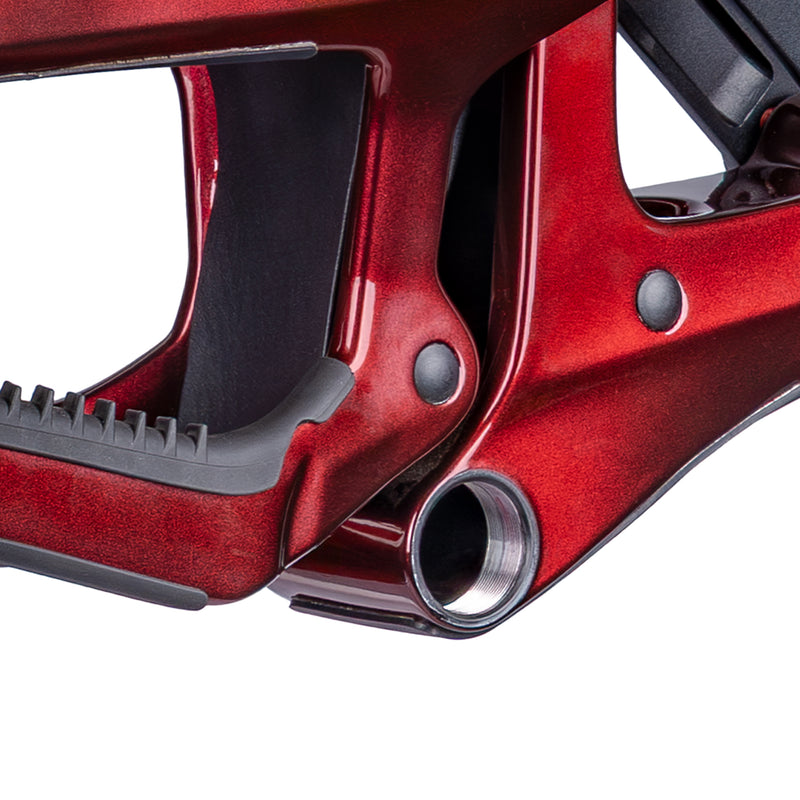

Threaded BB
The Spider’s threaded bottom bracket is the preferred choice for maintenance-minded riders, offering reliable, creak-free performance over the long haul.

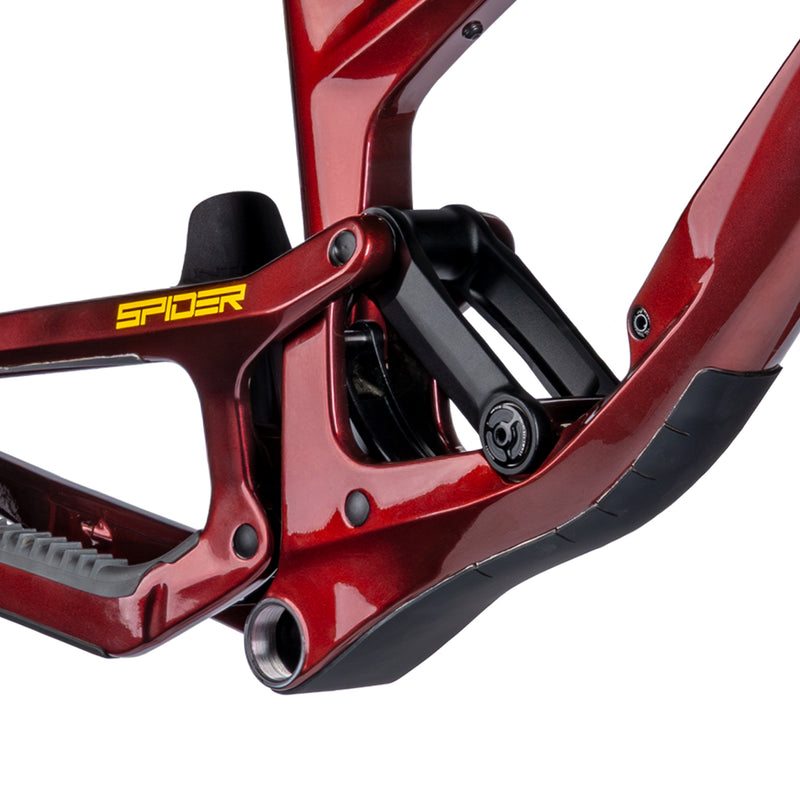

Frame Protection
Integrated frame protection keeps the front and rear triangle looking new, while a built-in rear fender helps shield the shock from dirt and debris.

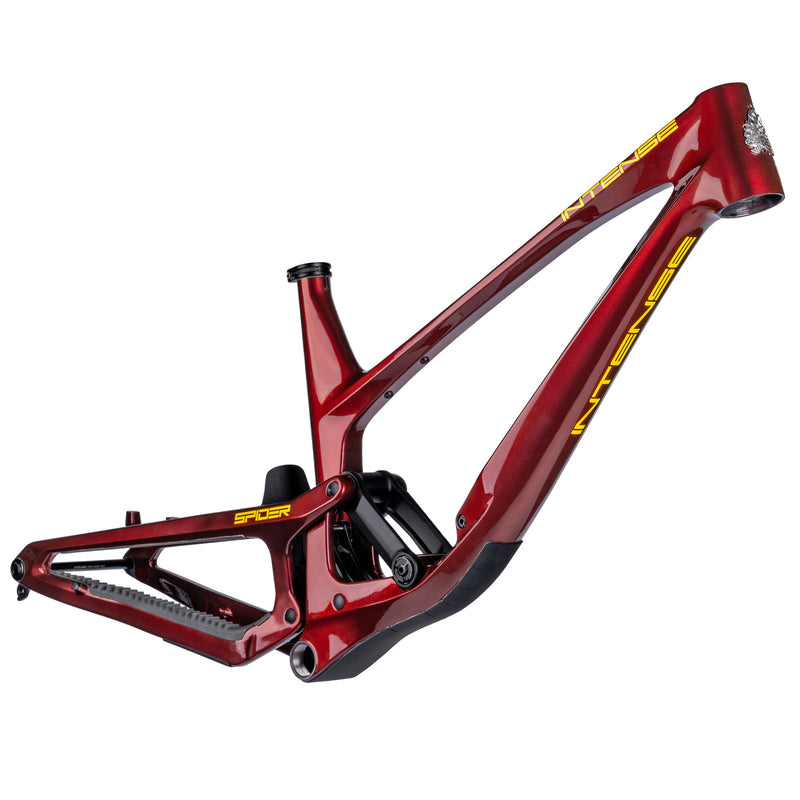

Carbon Fit
The Spider’s carbon layup is optimized for each frame size to deliver the ideal balance of stiffness, strength, and compliance for riders of all sizes. This ensures consistent responsiveness and performance across the entire size range.

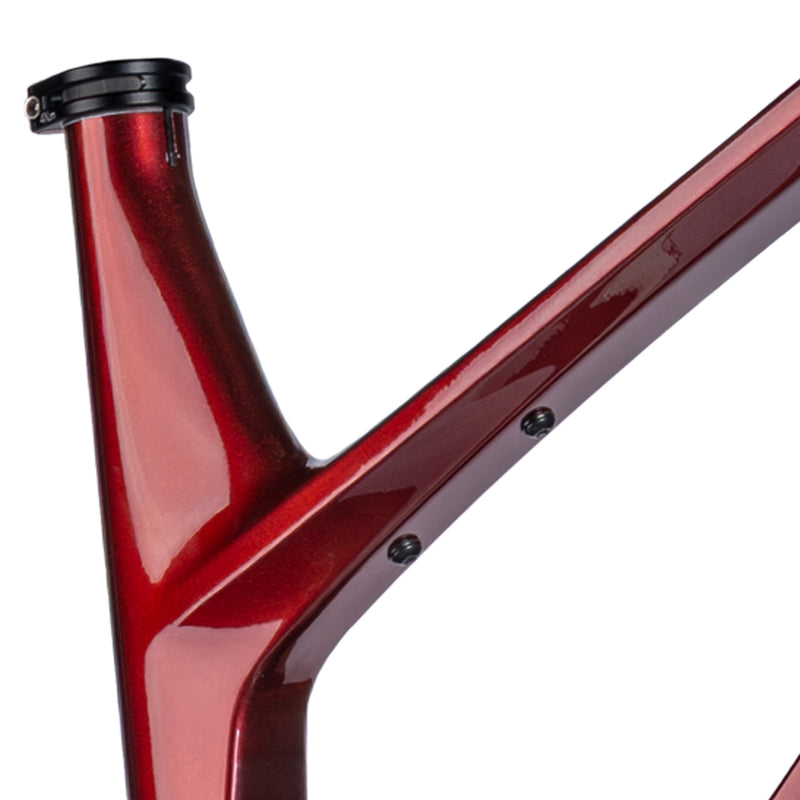

Accessory Mount
An integrated accessory mount under the top tube gives you a secure place to carry tools, air canisters, tire irons, and other essentials.
MEDIA REVIEWS
Vital MTB Spider Long-Term Review
The Spider continues to impress with its performance and style, we’re excited to see it featured by Vital MTB - "Responsive when you want it to be, and planted when you need it to be, the Spider does indeed ride as good as it looks."

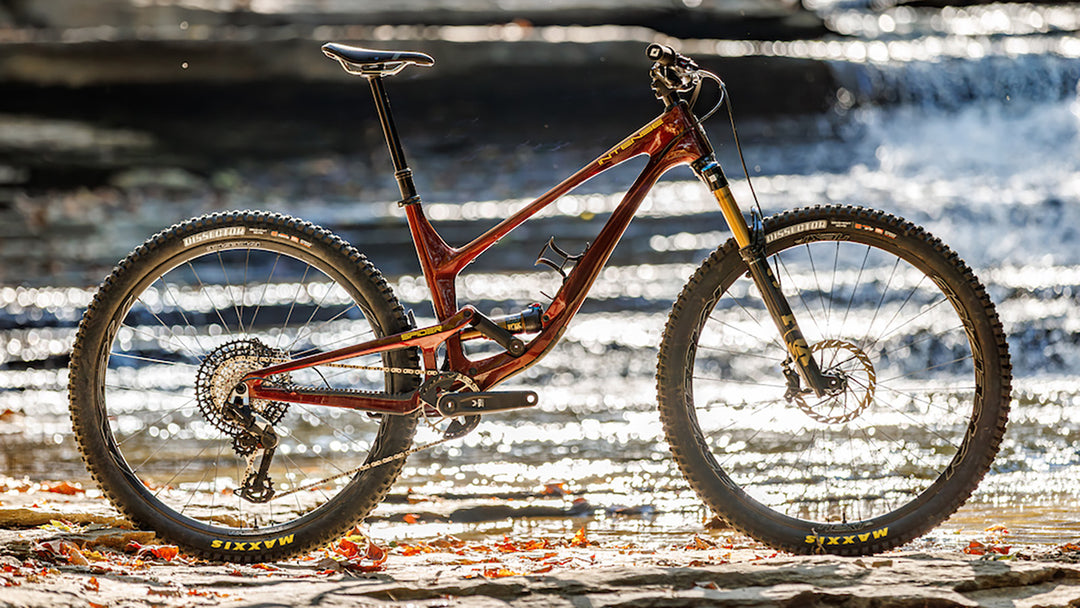

Pinkbike Field Test
