Underline style and color rendering#3921

Merged
Tyriar merged 26 commits intoxtermjs:masterfrom
Tyriar:underline
Jul 30, 2022
Merged

Underline style and color rendering#3921
Tyriar merged 26 commits intoxtermjs:masterfrom
Tyriar:underline

Conversation

@Tyriar
Copy link
Copy Markdown
Member

@Tyriar Tyriar commented Jul 23, 2022 •
edited
Loading

Fixes #1145

This sets up the infrastructure for 3-keyed glyphs where the new key is ext. Currently ext is set to underlineStyle but will be moved to use the packed ext format, similar to fg/bg.

DOM

Screen Shot 2022-07-23 at 9 22 19 am

Canvas

Screen Shot 2022-07-23 at 9 22 41 am

Webgl

Screen Shot 2022-07-23 at 9 22 55 am

@Tyriar Tyriar added this to the 4.20.0 milestone Jul 23, 2022
@Tyriar Tyriar self-assigned this Jul 23, 2022
@Tyriar Tyriar changed the title Underline style rendering Underline style and color rendering Jul 23, 2022
@Tyriar
Copy link
Copy Markdown
Member Author

Tyriar commented Jul 23, 2022

Colors done too:

DOM

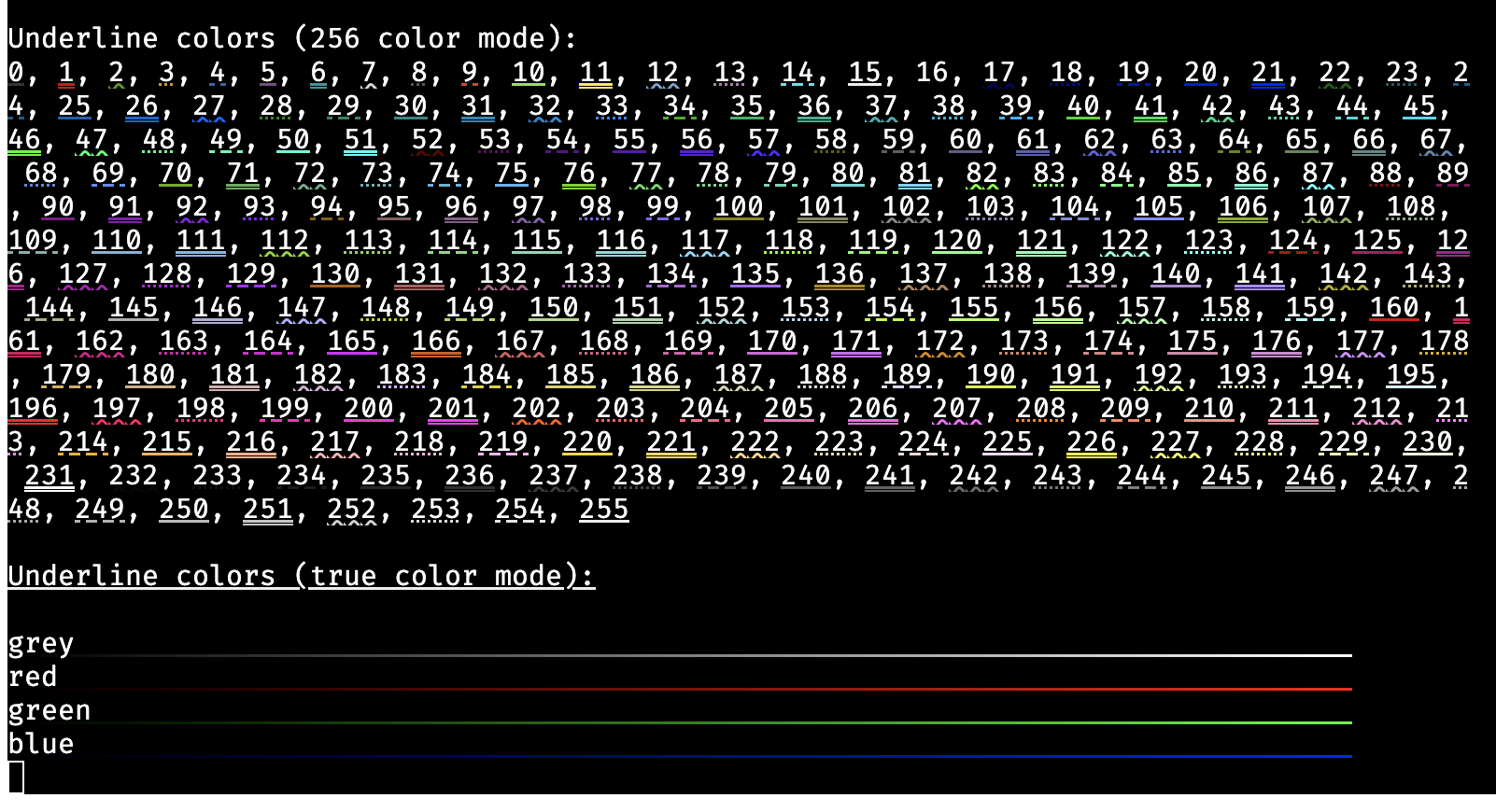

Screen Shot 2022-07-23 at 11 20 44 am

Canvas

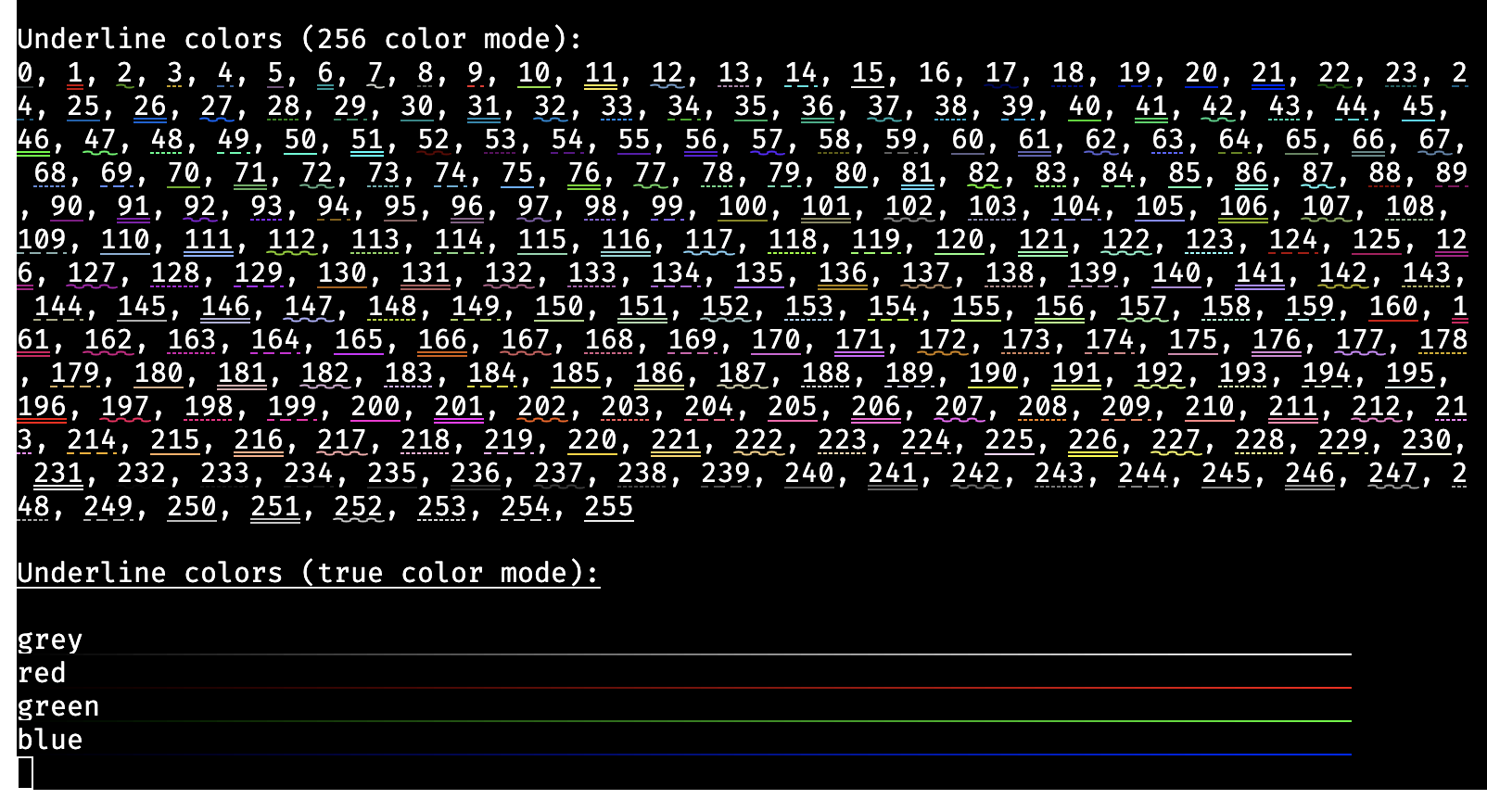

Screen Shot 2022-07-23 at 11 20 25 am

Webgl

Screen Shot 2022-07-23 at 11 19 12 am

@Tyriar
Copy link
Copy Markdown
Member Author

Tyriar commented Jul 23, 2022

No more overlapping of text/underline:
Screen Shot 2022-07-23 at 2 28 53 pm

@Tyriar
Copy link
Copy Markdown
Member Author

Tyriar commented Jul 23, 2022

Continuous curves 😍

Screen Shot 2022-07-23 at 2 49 04 pm

@Tyriar Tyriar mentioned this pull request Jul 25, 2022
Closed
7 tasks
@Tyriar Tyriar modified the milestones: 4.20.0, 5.0.0 Jul 28, 2022
@Tyriar
Copy link
Copy Markdown
Member Author

Tyriar commented Jul 30, 2022

dpr 1 curly rendering on Windows isn't great atm:


@Tyriar
Copy link
Copy Markdown
Member Author

Tyriar commented Jul 30, 2022

Updated, it was bad when line width was 1:



@Tyriar
Copy link
Copy Markdown
Member Author

Tyriar commented Jul 30, 2022

Glyph threshold clearing is causing an issue for underlines:


@Tyriar
Disable threshold check for glyphs with colored underlines
f0ddaf4
This causes some underlines to disappear which looks very bad for
colored underlines
@Tyriar Tyriar merged commit 640596b into xtermjs:master Jul 30, 2022
@Tyriar Tyriar deleted the underline branch July 30, 2022 14:46
@Tyriar Tyriar mentioned this pull request Aug 1, 2022
Closed
