<YAxis/> Not Respecting allowDecimals and tickCount Prop when domain is set to non-int values #777

Description

@0xAl3xH

Do you want to request a feature or report a bug?

bug

What is the current behavior?

<YAxis domain={['dataMin-0.5','dataMax+0.5']} tickCount={10} allowDecimals={false}/>
Produces the following:

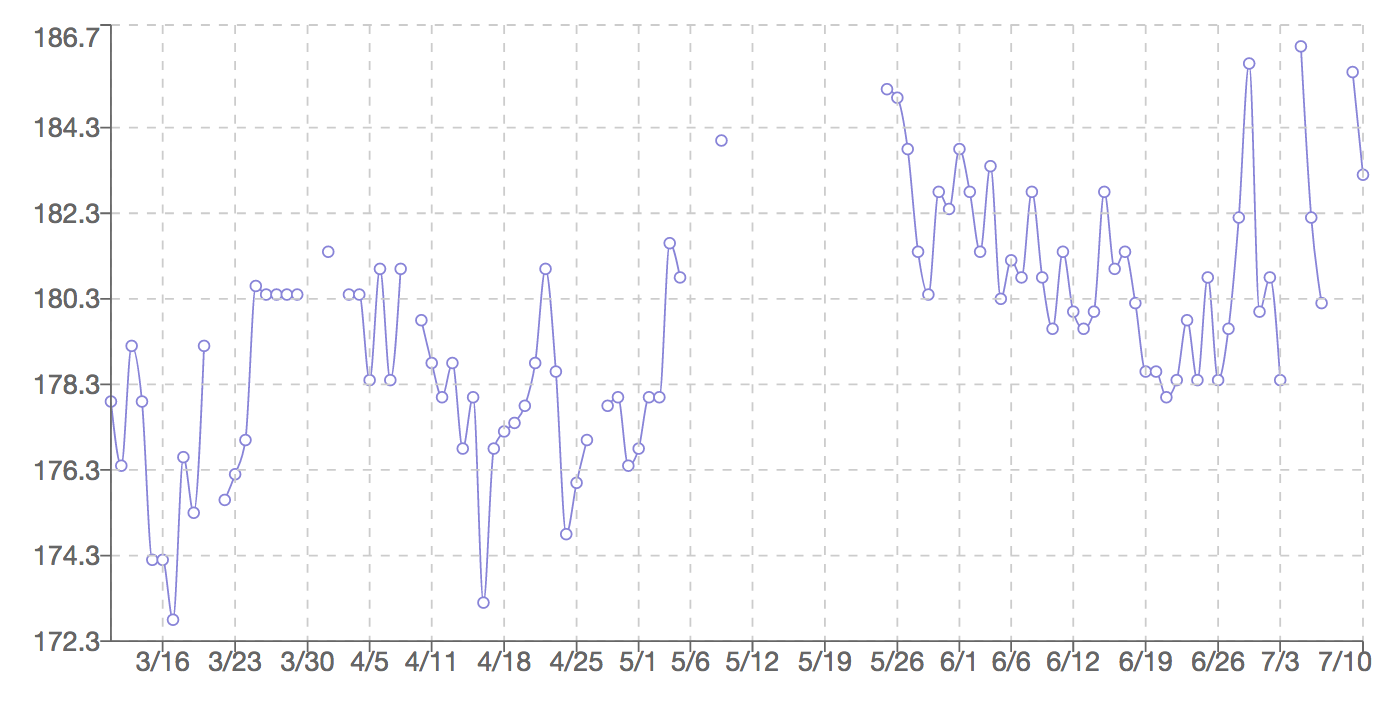

screen shot 2017-07-11 at 7 53 44 pm

There are neither 10 ticks nor decimal-less tick values.

I managed to get somewhat correct behavior with:
<YAxis domain={[170,187]} tickCount={10} allowDecimals={false}/>
screen shot 2017-07-11 at 8 00 31 pm

As you can see, there are now decimal-less tick values but there are only 9 ticks, which is better than 8 from before but still not the 10 that we want.

Interestingly enough setting domain={[170.2,187.2]} breaks the allowDecimals prop again.

I managed to get correct behavior by completely taking out domain as a prop:
<YAxis tickCount={10} allowDecimals={false}/>

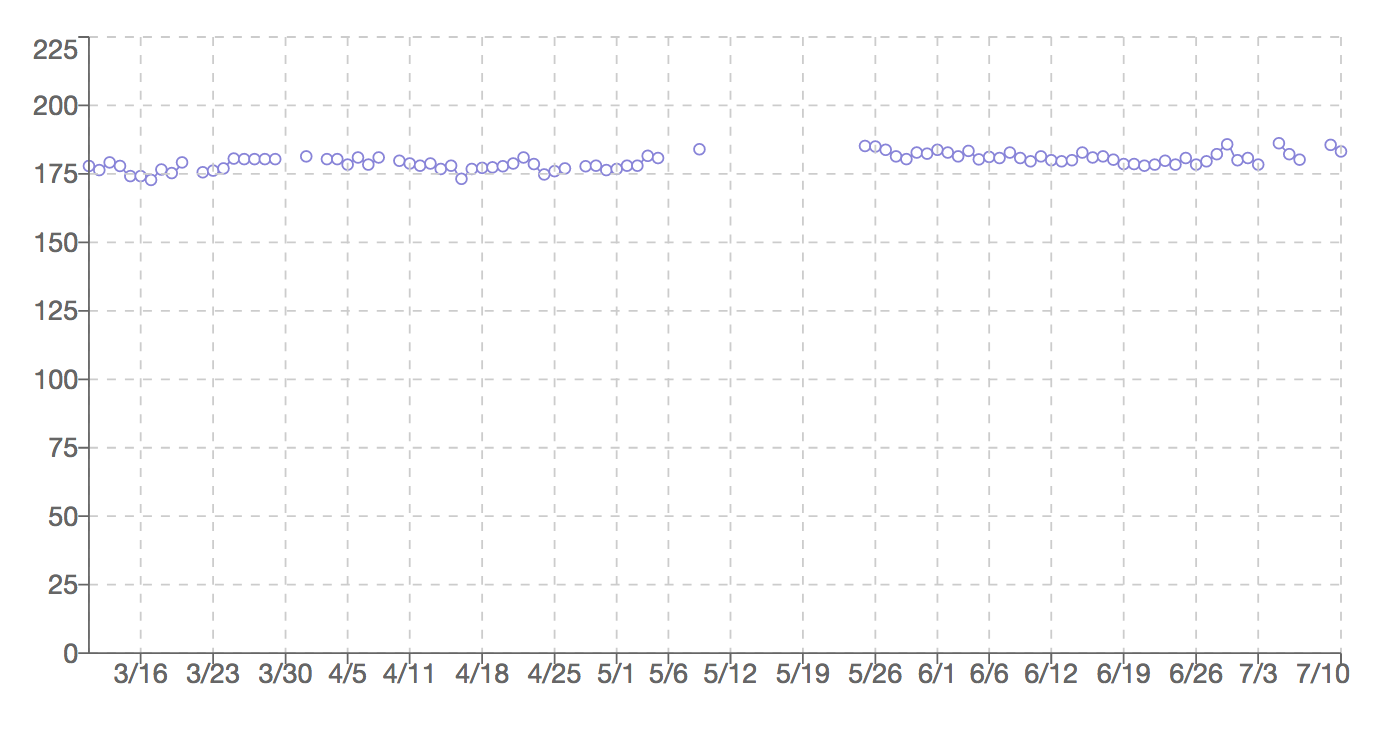

screen shot 2017-07-11 at 7 54 44 pm

However, my graph now looks ugly.

If the current behavior is a bug, please provide the steps to reproduce and if possible a minimal demo of the problem via https://jsfiddle.net or similar (template: http://jsfiddle.net/9y45ut13/).

Run the above code. Also I would use the jsfiddle but is anyone aware that the template doesn't render? Might be another issue to submit but maybe I'm missing how to use it?

What is the expected behavior?

<YAxis/> should respect those props even if domain is set.

Which versions of Recharts, and which browser / OS are affected by this issue? Did this work in previous versions of Recharts?

1.0.0-alpha.2/Chrome and Safari. Unsure.
