The eval GPU utilization looks terrible:

There is a big gap in train as well:

Looking into it.

Changed to using COCO 2017 data, the utilization for evaluation improves but still looks not very good:

Train utilization looks much better, but still there is a gap at the beginning (could be caused by data-copying):

After adding data prefetch, the gap in the front is gone but the gap at the end still exists for eval:

At the same time, train profiling looks terrific:

Hi @xuzhao9

I believe the slowdown during inference of mask r-cnn is due to this function

Indeed, we perform many small operations in a for loop, which is not ideal for maximizing GPU utilization.
In particular, I believe this line is the main culprit.

I think we can further optimize this function at the Python-level by leveraging a single call to grid_sample, but it would require rewriting the function. I believe detectron2 contains a more optimized version of this function in here

Also, ccing @datumbox as this could be a good task to optimize the torchvision function

After adding data prefetch, the gap in the front is gone but the gap at the end still exists for eval:

At the same time, train profiling looks terrific:

Question for model authors:

This still doesnt' look great. Is this how the model is used in nature?

What can be done here to improve utilization? Is this from a lack of prefetch from the second model? Its no good to have that idle section at the end.

[edit: the whole inference looks right on the edge of underutilized, do we need a different way to run this model?]

Hi @xuzhao9

I believe the slowdown during inference of mask r-cnn is due to this function

Indeed, we perform many small operations in a for loop, which is not ideal for maximizing GPU utilization. In particular, I believe this line is the main culprit.

I think we can further optimize this function at the Python-level by leveraging a single call to grid_sample, but it would require rewriting the function. I believe detectron2 contains a more optimized version of this function in here

Also, ccing @datumbox as this could be a good task to optimize the torchvision function

Right, sending off all these tiny shaders against independent data. Thats a perf error, causes dispatch to dominate. Can maybe be patched up by using cuda graphs, but really not good.

Is this really how the model runs in nature?

@eircfb I believe I've answered your questions in my answer just before, let me know if you have further questions. It's the post-processing steps that are the culprit in here, and they can definitely be optimized (without having to resort to custom CUDA kernels)

This is normally how we use the model, yes.

@eircfb I believe I've answered your questions in my answer just before, let me know if you have further questions. It's the post-processing steps that are the culprit in here, and they can definitely be optimized (without having to resort to custom CUDA kernels)

This is normally how we use the model, yes.

Right, we posted at same time. Isn't that loop of tiny dispatches just for the first section? What causes the low utilization towards the end of the trace?

@eircfb I believe the section I pointed out should correspond to the last part of the trace (although to be 100% sure I would need to check the full trace with further info, @xuzhao9 can you send it to me?)

For the first section with slowdown, I would need to check more carefully but my first guess would be that it comes from this section https://github.com/pytorch/vision/blob/0fa747eea4569f349fb0dacab44604b7b11c1a74/torchvision/models/detection/rpn.py#L253-L274

Maybe the slowdown could be attributed to this function being called instead of this one, but again, I would need to see the full trace to be sure

@eircfb I believe the section I pointed out should correspond to the last part of the trace (although to be 100% sure I would need to check the full trace with further info, @xuzhao9 can you send it to me?)

For the first section with slowdown, I would need to check more carefully but my first guess would be that it comes from this section https://github.com/pytorch/vision/blob/0fa747eea4569f349fb0dacab44604b7b11c1a74/torchvision/models/detection/rpn.py#L253-L274

Maybe the slowdown could be attributed to this function being called instead of this one, but again, I would need to see the full trace to be sure

Here is the full trace of eval (bs==4, with prefetch): pytorch-benchmark-dev-0_1709.1636590532626.pt.trace.json.zip

@xuzhao9 has imported this pull request. If you are a Facebook employee, you can view this diff on Phabricator.

@xuzhao9 after looking at the full trace, my comments from before seems to be accurate.

The first slow-down is due to this part of the implementation. I have a gut-feeling that this might be due to bad hyperparameters in here, so if you could try always dispatching to this codepath it would give hints if we can easily fix this.

For the second (and biggest slowdown), the problem is what I mentioned before on the mask pasting in images, and would require re-writing the function in a better way

@xuzhao9 after looking at the full trace, my comments from before seems to be accurate.

The first slow-down is due to this part of the implementation. I have a gut-feeling that this might be due to bad hyperparameters in here, so if you could try always dispatching to this codepath it would give hints if we can easily fix this.

For the second (and biggest slowdown), the problem is what I mentioned before on the mask pasting in images, and would require re-writing the function in a better way

Thank you @fmassa! I think your explanations make sense (though I am not an expert). I think the code is in decent shape now and we are confident it represents common use cases. We can use it as a baseline to help further improve the model quality.

Please help review and stamp it so that we can proceed on developing dynamic shapes.

Thanks!

@xuzhao9 has imported this pull request. If you are a Facebook employee, you can view this diff on Phabricator.

@xuzhao9 has imported this pull request. If you are a Facebook employee, you can view this diff on Phabricator.

@xuzhao9 merged this pull request in 39b5b6d.

I've made a few comments that could simplify the implementation (by removing unused functions), and also to mention that both torchscript as well as CPU are supported.

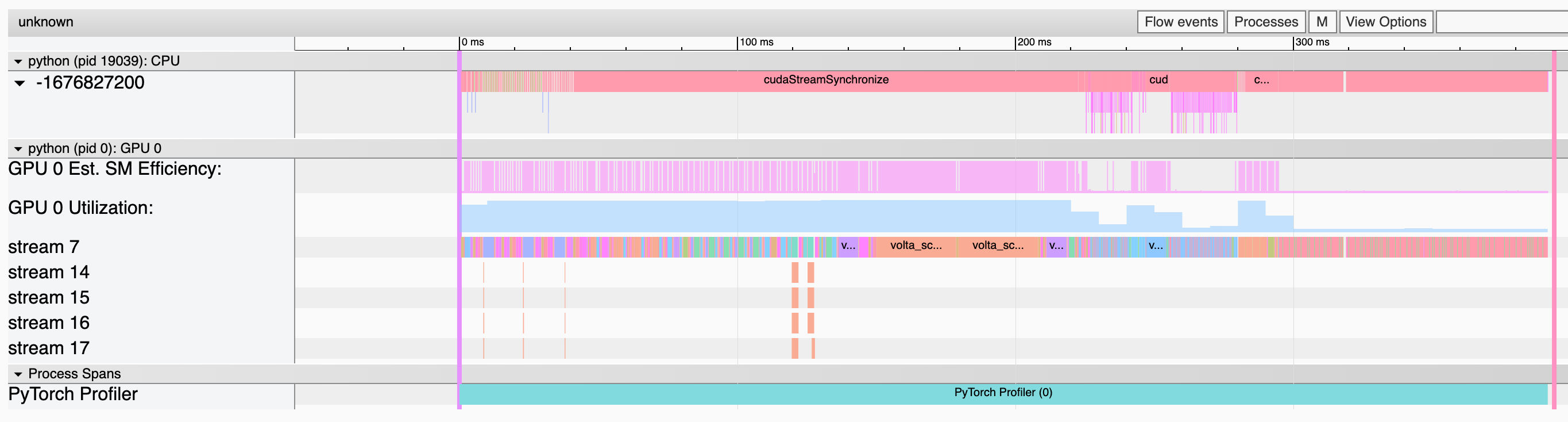

I re-ran the profiling with the code changes from this PR and it indeed it improves the overall figure (visible in the middle part where we are running nms).

After changes

Before changes
