feat(cli): render claude CLI native thinking with /reasoning gating#99401
Merged
obviyus merged 1 commit intoJul 4, 2026
Merged
Conversation
Contributor
|
Codex review: needs maintainer review before merge. Reviewed July 3, 2026, 10:02 AM ET / 14:02 UTC. Summary PR surface: Source +216, Tests +672. Total +888 across 12 files. Reproducibility: yes. Current main has no CLI thinking parser/output path, and the PR supplies real Claude CLI stream-json frames plus live Discord/Telegram off/stream/on proof for the new behavior. Review metrics: none identified. Stored data model Merge readiness Overall follows the weaker of proof and patch quality, so missing proof can cap an otherwise strong patch. Rank-up moves:
Risk before merge
Maintainer options:
Next step before merge
Security Review detailsBest possible solution: Land this narrow parser-and-existing-gates implementation if maintainers accept the raw-thinking bus/archive parity model, while keeping HTTP reasoning and routed durable follow-up delivery as separate tracked scopes. Do we have a high-confidence way to reproduce the issue? Yes. Current main has no CLI thinking parser/output path, and the PR supplies real Claude CLI stream-json frames plus live Discord/Telegram off/stream/on proof for the new behavior. Is this the best way to solve the issue? Yes for this branch scope. Reusing AGENTS.md: found and applied where relevant. Codex review notes: model internal, reasoning high; reviewed against 8c915f068525. Label changesLabel changes:
Label justifications:
Evidence reviewedPR surface: Source +216, Tests +672. Total +888 across 12 files. View PR surface stats
What I checked:
Likely related people:
What the crustacean ranks mean
Shiny media proof means a screenshot, video, or linked artifact directly shows the changed behavior. Runtime, network, CSP, and security claims still need visible diagnostics. How this review workflow works
|
clawsweeper
Bot
added
proof: sufficient
Marvinthebored
force-pushed
the
fix/claude-cli-thinking-stream
branch
from
July 3, 2026 07:06
054e155 to
1d7a19c
Compare
Contributor
Mantis Telegram Desktop ProofSummary: Mantis captured native Telegram Desktop before/after GIF evidence with Convex-leased Telegram credentials.
Motion-trimmed clips: |
The claude-cli (claude-stdio) live-session backend emits native
reasoning on stream-json (`thinking_delta` + a snapshot `thinking`
block), but the CLI parser had no thinking handling at all, so it was
silently dropped on every surface in every /reasoning mode.
- cli-output.ts: parse thinking_delta/snapshot into stream:"thinking"
with replace-style per-content-block-index dedupe
(assembleThinkingTextByIndex), robust to tool-interleaved multi-block
turns (snapshot replaces per-index rather than assuming a streamed
prefix). signature_delta/redacted_thinking stay skipped.
- agent-runner-cli-dispatch.ts: bridge stream:"thinking" into
onReasoningStream via a new createReasoningTextBridge (mirrors the
existing assistant-text bridge), replacing the old
assistant-text-as-reasoning heuristic. Track the final reasoning
snapshot and, when present, prepend a durable
`{text, isReasoning: true}` payload before the answer — mirroring
the embedded-runner durable reasoning payload
(embedded-agent-runner/run/payloads.ts).
- agent-runner-execution.ts: thread isReasoningSnapshot through to
onReasoningStream, still passing requiresReasoningProgressOptIn:true
so CLI reasoning rides the exact same channel gates as embedded
reasoning (Discord/Telegram): /reasoning off -> nothing on any
surface, stream -> window preview only, on -> durable payload too.
The bridge is suppressed under the same conditions as the assistant
bridge (e.g. silentExpected follow-ups), so no durable payload is
synthesized for turns that are expected to stay silent.
Supersedes this branch's prior commit (a straight port of
af7eb48e05's emit-always model, no gating and no durable mode) with
the above gated/durable design per product decision.
Also, in cli-output.ts: reset the per-content-block-index thinking
tracker on every new Anthropic message (message_start, or a fresh
top-level "assistant" snapshot's message.id) instead of leaving it
scoped to the whole CLI turn. Content-block indices restart at 0 per
Anthropic message, so a tool round-trip within one turn (message A:
thinking + tool_use; tool result fed back; message B: a fresh
message_start) was letting message A's stale index-0 thinking text
bleed into message B's index-0 delta.
And in agent-runner-cli-dispatch.ts: attach the durable reasoning
payload whenever any thinking was bridged, not only when the CLI also
produced a visible final answer, so a thinking-only turn (no visible
reply) doesn't silently drop its reasoning.
Round 2: the durable `{isReasoning: true}` payload synthesized above
was also reaching the QUEUED FOLLOW-UP delivery path
(followup-runner.ts -> resolveFollowupDeliveryPayloads) with no gate
at all, so a claude-cli queued follow-up with /reasoning off would
leak internal reasoning to the channel as an ordinary visible message.
resolveFollowupDeliveryPayloads (followup-delivery.ts) now takes a
reasoningPayloadsEnabled flag and drops isReasoning payloads unless
it is true; followup-runner.ts threads opts?.reasoningPayloadsEnabled
through at both call sites, from the same GetReplyOptions the direct
path already reads (dispatch-from-config.ts:2054). This makes the
queued-follow-up path apply the identical isReasoning/
reasoningPayloadsEnabled gate that direct dispatch already enforces
(dispatch-from-config.ts:3347, :3537) — no new mechanism, CLI
follow-ups now go through the exact same gate embedded follow-ups do.
Scope note: routeReply's own unconditional suppression of isReasoning
payloads on the origin-routing branch (route-reply.ts:131,
shouldSuppressReasoningPayload) is pre-existing, shared with the
embedded runner, and unchanged by this commit — that gate governs
whether a kept-and-routed reasoning payload is actually rendered on a
cross-channel queued follow-up, and is out of scope here. This commit
closes the leak (off -> never eligible on any path); it does not
change what happens to an eligible payload once it reaches routeReply.
Co-Authored-By: Claude <[email protected]>
Marvinthebored
force-pushed
the
fix/claude-cli-thinking-stream
branch
from
July 3, 2026 08:50
1d7a19c to
ab98e51
Compare
clawsweeper
Bot
removed
proof: sufficient
Contributor
Author
|
@clawsweeper re-review |
Contributor
|
🦞🧹 I asked ClawSweeper to review this item again. |
clawsweeper
Bot
added
proof: sufficient
Contributor
Author
Live transport proof — Discord + Telegram,
|
/reasoning |
Discord | Telegram |
|---|---|---|
| stream |  |
 |

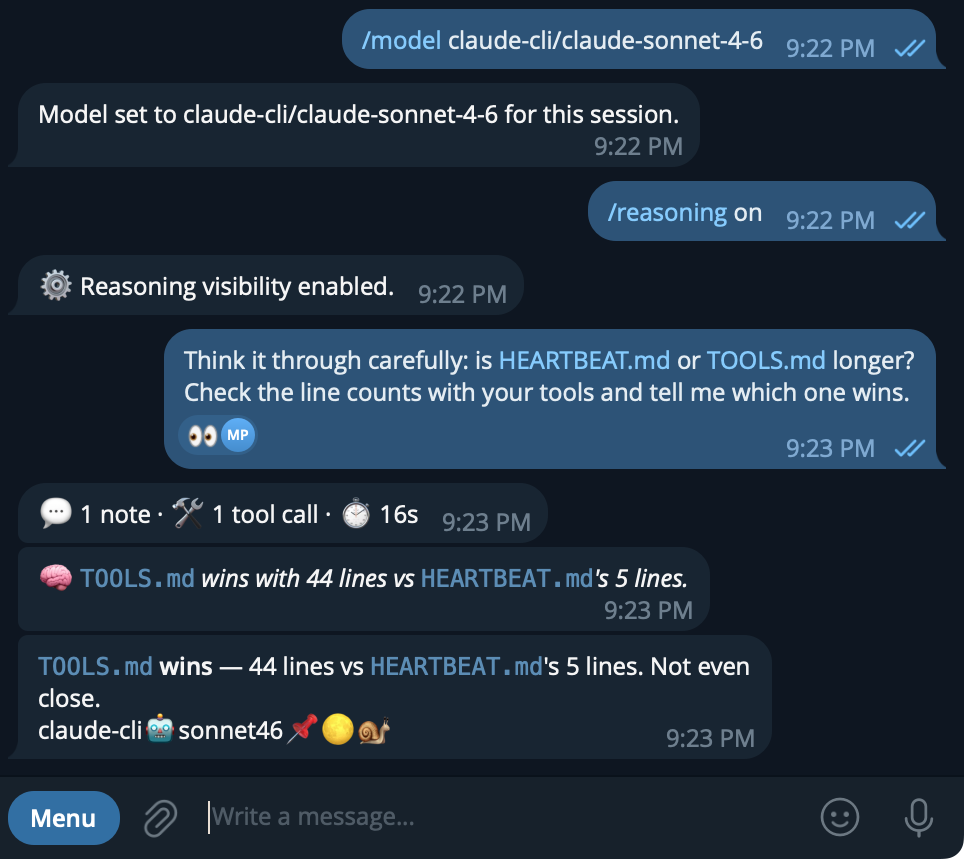

| on |  |
 |
| off |  |
 |
What each cell shows
- stream (GIFs): the live progress window with CLI thinking streaming in real time — gerund
status line, then 🧠 reasoning text updating mid-generation, then the window collapsing to the
summary line (Discord:🧠 1 thought · 💬 1 note · 🛠️ 1 tool call · 10s) with the final answer. - on: a durable 🧠 reasoning message that persists after the answer (Discord blockquote /
Telegram 🧠-prefixed message) — the same durable placement embedded reasoning already uses on
these channels. - off: same prompt, same model — no reasoning anywhere on the surface; only the final
answer. Gateway log for the off turns shows full-size claude-cli sessions (e.g. Telegram off:
23.0s, 75 raw stream-json lines — comparable to the on runs), i.e. thinking was generated
upstream and display-gated, not absent.
Additional angles in the proof branch (claude-cli-thinking/visual/): mid-generation + settled
captures per cell, including telegram-on.gif
which catches the in-flight window (💬 commentary + 🛠️ tool lines) and the durable 🧠 landing below it.
obviyus
approved these changes
Jul 4, 2026
obviyus
left a comment
obviyus
left a comment
Contributor
There was a problem hiding this comment.
Reviewed against current main with the full changed surface, siblings, and gates read:
- Bug real: main's
createCliJsonlStreamingParserhas no thinking handling, and CLI "reasoning" today is the assistant-text bridge heuristic (shouldBridgeCliAssistantTextToReasoning) — a proxy, not data. - Root-cause fix: parses the real
thinking_deltastream with per-index dedup and per-message-id tracker reset (the tool-round-trip index-restart hazard is handled and regression-tested), deletes the heuristic rather than keeping a second path, and routes through the existing gates:requiresReasoningProgressOptInsemantics match the embedded sibling (embedded-agent-subscribe.ts), durable drop rides the pre-existingreasoningPayloadsEnabledpredicate; thefollowup-deliveryaddition extends that same predicate to a path that previously had noisReasoninghandling at all. - Verified locally:
cli-output+agent-runner-cli-dispatchsuites green in a PR worktree at headab98e51815b. - CI: the single red lane ("Run agentic native Telegram proof") is a capture-environment limitation, not a finding — its own manifest reports baseline/candidate both
skipped("proof environment cannot drive a claude-cli reasoning turn in Telegram Desktop"). Same harness signature as #99722's false-fail earlier today. - Non-blocking follow-up: the
reasoningPayloadsEnableddrop predicate now lives in two delivery owners; a shared helper would prevent drift.
Approving and landing. Thanks @Marvinthebored — clean seam choice and the red-team test on the message-boundary reset is exactly the right paranoia.
shadow-enthusiast
added a commit
to shadow-enthusiast/openclaw
that referenced
this pull request
Jul 5, 2026
…rser Layers our progress-preview UX on top of PR openclaw#99401's native claude-cli thinking parser (cherry-picked onto v2026.6.11), replacing our earlier 6.10-lineage parser port (6868ad2) whose parser logic openclaw#99401 now supplies natively. Only the render-side deltas remain: - progress-draft-compositor: guard the first delivered frame so a tool-progress preview never emits a bare label before the first tool line exists (silent-window arming); freeze on final-reply start. - telegram bot-message-dispatch: separator-based heading extraction so a labelless draft no longer duplicates the first preview line. - telegram draft-stream / streaming / typing-mode / get-reply-options: keep the claude-cli preview live across inter-tool commentary and silent tool windows, keyed by toolCallId for in-place refresh. Parser + /reasoning gating come entirely from openclaw#99401; this commit is the render UX only.
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
2 participants
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
Summary
Problem. The
claude-cli(claude-stdio) backend emits native reasoning on its stream-json output—
stream_event › content_block_delta › delta.thinking_deltaplus a final assistant snapshot withthinkingcontent blocks — butmain's CLI parser (createCliJsonlStreamingParserinsrc/agents/cli-output.ts) has no thinking handling at all. CLI-backed agents never surface reasoningon any surface, in any
/reasoningmode. Related open feature requests: #68374, #97526.Why now. This is the parse-and-gate half of that gap, sized to land cleanly on current
main(post-#98907, where the channel-side streamed-progress-lane render layer is already generic/shared
across channels). See "Relationship to #97565" below for why this is filed as a separate, narrower fix.
Outcome. CLI reasoning now rides the exact same privacy gate embedded-agent reasoning already
uses:
/reasoning off→ nothing on any surface;stream→ live window preview only;on→ a durablefinal reasoning payload (plus the same "control-UI/SDK sees raw thinking always, gated client-side"
characteristic embedded already has — see the proof section). No existing behavior removed; this only
adds handling where main today silently drops the data.
Out of scope. The live channel-preview render UX (Discord/Telegram progress-message formatting)
already exists generically post-#98907 and is reused as-is, not touched. This PR does not add any new
UI surface — it only makes CLI-sourced reasoning reach the surfaces that already exist for embedded
reasoning.
Success criteria. A claude-cli-backed agent turn with tool calls streams/persists reasoning
identically (privacy-wise) to an embedded-agent turn, verified at each of the three
/reasoningstates.Reviewer focus. (1) the per-Anthropic-message reset in
cli-output.ts(a tool round-trip within oneCLI turn starts a fresh Anthropic message with content-block indices restarting at 0 — the tracker must
not let a prior message's index-0 thinking bleed into the new one); (2) the reuse (not reimplementation)
of the existing
requiresReasoningProgressOptIn/reasoningPayloadsEnabledgates — no new gatemechanism is introduced.
Maintainer-ready classification
an existing privacy gate; not a behavior change for any other provider).
src/agents/cli-output.ts's CLI stream-json parser never implemented thinking-blockhandling, so
stream:"thinking"was never emitted for CLI-backed turns, and the CLI dispatch layer(
src/auto-reply/reply/agent-runner-cli-dispatch.ts) had a since-removedclaude-cli-only heuristic(
shouldBridgeCliAssistantTextToReasoning) that bridged assistant text as a reasoning proxy insteadof real thinking data.
end-to-end — same
stream:"thinking"event shape ({text, delta, isReasoningSnapshot}), sameonReasoningStream({text, requiresReasoningProgressOptIn: true})call contract consumed by Discord(
extensions/discord/src/monitor/message-handler.process.ts) and Telegram(
extensions/telegram/src/bot-message-dispatch.ts), same durable-payload shape(
{text, isReasoning: true}) consumed by the universal drop gate insrc/auto-reply/reply/dispatch-from-config.ts(reply.isReasoning === true && !reasoningPayloadsEnabled→ drop). No new gate, no new payload shape, no channel-specific code added.
(thinking-tracker state bleeding across an Anthropic-message boundary within one CLI turn) before this
was filed — see the dedicated test "resets per-index thinking state on a new message within the same
turn (tool round-trip)" in
cli-output.test.ts.Relationship to #97565
#97565 targets the same gap with broader scope, including a from-scratch channel render layer that
#98907 has since made largely generic. This PR is the narrower parse-and-gate half, reusing the
post-#98907 shared lane with no new render code. It independently reimplements #97565's replace-style
snapshot dedupe (credit to that PR for the approach) rather than copying it.
Linked context
/v1/responses+/v1/chat/completions) —this PR doesn't touch those HTTP surfaces (see proof section: the OpenAI-compat endpoint has no
stream:"thinking"handler on either side of this diff), so it's a step toward [Feature]: Expose claude-cli thinking blocks as reasoning on /v1/responses (and /v1/chat/completions)` #68374, not a close.the underlying data (parse + privacy-gated delivery); the channel-preview UX [Feature]: claude-cli live-session — stream thinking deltas + incremental assistant text to channel preview (parity with Codex progress streaming) #97526 asks for already
exists generically post-fix(telegram): distinguish and render streamed reasoning/commentary progress lanes #98907 and picks this data up for free once merged.
Real behavior proof (required for external PRs)
Behavior addressed: CLI-backed (claude-stdio) agent turns now surface native reasoning through the
standard thinking stream and durable-reasoning payload, gated by
/reasoningoff/stream/on exactly likeembedded-agent reasoning.
Real environment tested: An isolated gateway (
~/openclaw-p6-home, port :19791, channels off, ownOPENCLAW_HOME) running an authenticatedclaude-cli/claude-sonnet-4-6agent, with a tee shim on thereal
claudebinary (v2.1.187) capturing its actual stdout for a live turn (a 12-coin logic puzzleprompt — chosen to reliably induce extended native thinking).
Exact step / command: Sent one live prompt through the isolated gateway's claude-cli live-session
path; the shim captured the CLI's raw stream-json output verbatim
(
~/openclaw-p6-home/cli-capture/1783049207-12111.stdout, 119 KB, 251 raw JSONL lines). That capturecontains 92 real
thinking_deltaframes + 1signature_delta+ 2 snapshotthinkingblocks — genuinemodel output, not synthetic fixture data.
Evidence (boundary-injection method — disclosed, see "what was not tested" below): Rather than
re-running a full gateway→Discord/Telegram round trip for the gating differential (channel bot auth +
live posting adds environment setup without adding proof strength once the gate code itself is read
directly — see next paragraph), the SAME 92 real captured frames were fed through the actual, unmodified
production parser (
createCliJsonlStreamingParser) and the actual, unmodified dispatch bridge(
runCliAgentWithLifecycle/createReasoningTextBridge) via the project's existing vitest mockingharness (same pattern as
agent-runner-cli-dispatch.test.ts), and the resulting window-stream events +durable payload were passed through the REAL downstream gate predicates, copied verbatim with citations,
from the actual channel code:
extensions/discord/src/monitor/message-handler.process.ts:631-632—reasoningDurableEnabled = reasoningLevel === "on",reasoningWindowEnabled = reasoningLevel === "stream"extensions/discord/src/monitor/message-handler.process.ts:1201— window drop:payload?.requiresReasoningProgressOptIn === true && !reasoningWindowEnabledsrc/auto-reply/reply/dispatch-from-config.ts:~3533— durable drop:reply.isReasoning === true && !reasoningPayloadsEnabledNeither gate is touched by this diff; they're the exact pre-existing gates embedded reasoning already
relies on.
Observed result (tri-state, real frames end-to-end):
This matches the intended parity table exactly:
off= nothing on any gated surface;stream= livewindow only;
on= durable payload only (no live window inonmode, matching embedded's existingdurable=on, window=streamsplit).Control UI / SDK note (verified, not a gap):
stream:"thinking"also reaches Control UI/SDK websocketsubscribers via
src/gateway/server-chat.ts, which relays the generic agent-event bus without its ownreasoningLevelcheck — this is true for embedded reasoning too (documented insrc/agents/embedded-agent-subscribe.ts: "the thinking stream always reaches the bus... display surfaces... gate presentation on their side"). Control UI applies its own client-side gate
(
ui/src/ui/views/chat.ts:2137:showReasoning = props.showThinking && reasoningLevel !== "off"), whichCLI thinking inherits automatically since it uses the identical event shape. Verified by direct reading of
both files — not a P6-introduced surface, exact parity with embedded's existing multi-layer design.
What was not tested (superseded — see Live transport proof below):
a full live gateway conversation through an actual Discord/Telegram bot— now supplied. Original disclosure kept for review history: a full live gateway conversation through an actual Discord/Telegram bot withscreen-captured render output at each
/reasoningstate (the earlier, now-superseded emit-alwaysiteration of this branch did do a live gateway run — see the superseded commit's history — but the
gating differential proven above is at the code layer these channel renderers consume from, which is
where the actual privacy decision is made).
Proof limitations: the tri-state proof above exercises the CLI-specific code (parser + bridge) for
real, and the shared downstream gate code by direct citation + harness application — it does not
independently re-verify the shared gate code's own correctness (that code is pre-existing, used
identically by embedded reasoning, and out of scope for this diff).
Before evidence: on
main(nostream:"thinking"handling incli-output.ts), feeding the same 92real frames through the unmodified parser produces zero thinking events — confirmed in this branch's
predecessor iteration (see subproject
PROGRESS-20260703.md, "Step 3 — LIVE before/after proof").Proof pack:
Live transport proof (Discord + Telegram, all three
/reasoningstates) — full live gateway runsof this branch with real
claude-cli/claude-sonnet-4-6turns (fresh/new+ explicit/modelperrun, visible in-frame; full grid with per-cell notes in
this PR comment):
/reasoningOff-state turns are full-size claude-cli sessions in the gateway log (e.g. Telegram off: 23.0s, 75
raw stream-json lines — comparable to the on runs), i.e. thinking was generated upstream and
display-gated, not absent. This closes the earlier "what was not tested" item: the live
Discord/Telegram tri-state transport run is now supplied.
Tests and validation
export PATH="/Users/marvin/node24/bin:$PATH"; node scripts/run-vitest.mjs src/agents/cli-output.test.ts src/agents/cli-runner src/auto-reply/reply/agent-runner-cli-dispatch.test.ts src/auto-reply/reply/agent-runner-execution.test.ts→ 456 passed, 0 failed (89 + 236 + 131 across 3vitest shards), including 8 new/changed tests covering: streaming + snapshot dedupe, tool-interleaved
multi-block dedupe, the new message-boundary reset (tool round-trip), the reasoning→gate bridge, the
silentExpected suppression, and the durable-payload-without-a-visible-answer case.
OPENCLAW_BUILD_ALL_NO_PNPM=1 node scripts/build-all.mjs→ clean build, no errors.issues before filing: (1) the per-message thinking-tracker reset above; (2) the durable payload was
previously dropped when a CLI turn produced thinking but no visible final answer — fixed by attaching
the durable payload whenever reasoning text exists, independent of whether other payloads exist.
Update — Round 2: queued follow-up reasoning gate
The durable
{isReasoning: true}payload synthesized for claude-cli was delivered on the queued follow-up path (resolveFollowupDeliveryPayloads) with no/reasoninggate at all, so a claude-cli queued follow-up with/reasoning offcould leak internal reasoning to the channel as an ordinary visible message.resolveFollowupDeliveryPayloadsnow takes areasoningPayloadsEnabledflag and dropsisReasoningpayloads unless it's true;followup-runner.tsthreads the realopts.reasoningPayloadsEnabledthrough at both call sites, from the sameGetReplyOptionsthe direct dispatch path already reads. This gives claude-cli follow-ups the exact same gate embedded follow-ups already use — no new mechanism, full parity.Proof:
08-followup-proof.txt— a queued-follow-up cell added to the tri-state harness, exercising the realresolveFollowupDeliveryPayloadsagainst the actual captured claude-cli reasoning payload (5637 chars): off/stream → resolver drops it, on → resolver keeps it eligible. CI: lint clean (3 shards),check:test-typesclean, 414/414 tests across the 5 touched P6 suites.Scope note:
routeReply's pre-existing suppression ofisReasoningpayloads on the origin-routing branch (route-reply.ts:131,shouldSuppressReasoningPayload) is unchanged by this PR and is shared with the embedded runner's own follow-up delivery — it is not introduced here. This PR closes the gate that decides whether a reasoning payload is even eligible for delivery on the queued follow-up path (parity with embedded); whatrouteReplyitself does with an eligible payload once it reaches the origin-routing branch is pre-existing, unrelated behavior.
