Allow validated TXT/JSON/YAML media sends by simplyclever914 · Pull Request #79658 · openclaw/openclaw

simplyclever914 · 2026-05-09T05:02:08Z

Summary

allow host-read local media sends for validated TXT, JSON, YAML, and YML documents
add YAML MIME/extension mapping for .yaml / .yml
keep binary-disguise rejection coverage for the newly allowed text document extensions
update attachment hydration coverage for the new allowed host-local text document behavior

Real behavior proof

Behavior or issue addressed: host-read local media sends can attach validated TXT, JSON, YAML, and YML documents while still rejecting binary data disguised with those text extensions.
Real environment tested: local OpenClaw checkout on Linux 6.11 / Node v22.22.2, PR head 1b0b35121e5df831217c9003a62fc0a25ef0bee8.
Exact steps or command run after this patch: ran a live Node/tsx script against src/media/web-media.ts that wrote real temporary local files (note.txt, payload.json, config.yaml, config.yml, and binary-disguised evil.json) and called loadWebMedia(..., { localRoots: "any", readFile: fs.readFile, hostReadCapability: true }) on each file.

Evidence after fix: terminal output from the live local-file run:

note.txt: kind=document contentType=text/plain bytes=34
payload.json: kind=document contentType=application/json bytes=39
config.yaml: kind=document contentType=application/yaml bytes=33
config.yml: kind=document contentType=application/yaml bytes=37
evil.json: rejected binary disguise with code=path-not-allowed

Observed result after fix: real local TXT/JSON/YAML/YML files loaded as document media with the expected MIME types; a ZIP-signature binary payload named evil.json was rejected with path-not-allowed.
What was not tested: no end-to-end delivery to an external chat provider in this proof; this verifies the shared host-read media loader path used before provider send.

Validation

node --import tsx ./.tmp-openclaw-real-media-proof.mjs (temporary local proof script; output included above)
corepack pnpm exec node scripts/test-projects.mjs test/vitest/vitest.infra.config.ts test/vitest/vitest.hooks.config.ts test/vitest/vitest.secrets.config.ts — passed 3 Vitest shards
corepack pnpm exec node scripts/test-projects.mjs src/media/web-media.test.ts src/media/mime.test.ts src/infra/outbound/message-action-runner.media.test.ts — passed 3 Vitest shards

clawsweeper · 2026-05-09T05:05:25Z

Codex review: needs maintainer review before merge. Reviewed May 31, 2026, 1:50 PM ET / 17:50 UTC.

Summary
This PR lets host-read outbound media attach validated TXT/JSON/YAML/YML documents, adds YAML MIME mapping, updates docs, and adds media/outbound regression tests.

PR surface: Source +27, Tests +55, Docs 0. Total +82 across 7 files.

Reproducibility: not applicable. as a feature/security-boundary expansion, but the current behavior is well evidenced: current source/docs block plain text documents and Mantis proof shows main failing while the candidate delivers a TXT document in Telegram.

Review metrics: 1 noteworthy metric.

Host-read text document extensions: 4 added: .txt, .json, .yaml, .yml. This expands which agent-readable host files can become outbound attachments when tools.fs.workspaceOnly=false, so maintainers should review the boundary before merge.

Merge readiness
Overall: 🐚 platinum hermit
Proof: 🦞 diamond lobster ✨ media proof bonus
Patch quality: 🐚 platinum hermit
Result: ready for maintainer review.

Overall follows the weaker of proof and patch quality, so missing proof can cap an otherwise strong patch.

Rank-up moves:

Wait for Security High (channel-runtime-boundary) to complete on the exact head before landing.
Have a maintainer explicitly accept the documented host-read text-document boundary.

Risk before merge

[P1] Merging intentionally lets agents with host-read media access and tools.fs.workspaceOnly=false attach agent-readable .txt, .json, .yaml, and .yml files after extension and text-shape validation; the docs disclose this, but maintainers still need to accept the security-boundary expansion.
[P1] The latest head still had Security High (channel-runtime-boundary) in progress during review, so landing should wait for the exact-head required checks to complete.

Maintainer options:

Accept The Documented Boundary (recommended)
Maintainers can accept that workspaceOnly=false permits validated TXT/JSON/YAML/YML host-read attachments and land after the pending security check completes.
Narrow The Allowed Text Set
If maintainers do not want JSON or TXT treated as sendable host-local documents, remove those extensions or add a stricter policy before merge.
Pause For Security Direction
If the host-read attachment model needs a broader policy decision, keep this PR paused and close or split only after that decision is recorded.

Next step before merge

[P2] Human review is needed for the host-read security-boundary acceptance and final exact-head check state; there is no narrow code defect for an automated repair lane.

Security
Needs attention: No supply-chain changes were found; the security-sensitive item is the intentional host-read attachment expansion for validated text documents.

Review details

Best possible solution:

Land the focused shared media/docs/tests change after maintainer acceptance of the documented host-read text-document boundary and completed required checks, with the APK follow-up kept separate at #87349.

Do we have a high-confidence way to reproduce the issue?

Not applicable as a feature/security-boundary expansion, but the current behavior is well evidenced: current source/docs block plain text documents and Mantis proof shows main failing while the candidate delivers a TXT document in Telegram.

Is this the best way to solve the issue?

Yes, this is the best technical layer if maintainers want the feature: MIME mapping belongs in media-core and host-read gating belongs in the shared media loader, not in a Telegram-specific workaround. The remaining question is policy acceptance of the widened host-read boundary.

AGENTS.md: found and applied where relevant.

Codex review notes: model gpt-5.5, reasoning high; reviewed against 05b3f1c29d73.

Label changes

Label changes:

add proof: sufficient: Contributor real behavior proof is sufficient. Sufficient: the PR includes live local loader output, current-head proof checks passed, and Mantis Telegram Desktop proof shows after-fix TXT delivery; future proof should continue redacting private paths, keys, phone numbers, endpoints, and other sensitive details.

Label justifications:

P2: This is a normal-priority outbound media improvement with limited blast radius but meaningful security-boundary review needs.
merge-risk: 🚨 security-boundary: The diff intentionally allows additional agent-readable host-local text documents to be attached, including possible secret.txt or config.json files when the host-read policy already permits reads.
rating: 🐚 platinum hermit: Overall readiness is 🐚 platinum hermit; proof is 🦞 diamond lobster and patch quality is 🐚 platinum hermit.
status: ⏳ waiting on author: ClawSweeper has contributor-facing work open and is waiting for author action. Sufficient (recording): Sufficient: the PR includes live local loader output, current-head proof checks passed, and Mantis Telegram Desktop proof shows after-fix TXT delivery; future proof should continue redacting private paths, keys, phone numbers, endpoints, and other sensitive details.
proof: sufficient: Contributor real behavior proof is sufficient. Sufficient: the PR includes live local loader output, current-head proof checks passed, and Mantis Telegram Desktop proof shows after-fix TXT delivery; future proof should continue redacting private paths, keys, phone numbers, endpoints, and other sensitive details.
proof: 🎥 video: Contributor real behavior proof includes video or recording evidence. Sufficient: the PR includes live local loader output, current-head proof checks passed, and Mantis Telegram Desktop proof shows after-fix TXT delivery; future proof should continue redacting private paths, keys, phone numbers, endpoints, and other sensitive details.

Evidence reviewed

PR surface:

Source +27, Tests +55, Docs 0. Total +82 across 7 files.

View PR surface stats

Area	Files	Added	Removed	Net
Source	2	37	10	+27
Tests	3	93	38	+55
Docs	2	3	3	0
Config	0	0	0	0
Generated	0	0	0	0
Other	0	0	0	0
Total	7	133	51	+82

Security concerns:

[medium] Host-read text attachments expand the exfiltration boundary — src/media/web-media.ts:151
The code intentionally allows .txt, .json, .yaml, and .yml host-local files through the outbound media path when the agent can already read them and workspaceOnly=false. The docs warn about this, but maintainer acceptance is still needed because secret-like text files can now be sent as attachments.
Confidence: 0.9

What I checked:

Root policy applied: Root AGENTS.md was read fully; its PR review, proof, docs, and security-boundary guidance applies because the PR changes shared outbound media behavior and user-visible docs. (AGENTS.md:21, 05b3f1c29d73)
Scoped docs/outbound policy applied: docs/AGENTS.md and src/infra/outbound/AGENTS.md were read; the docs changes use root-relative links and the outbound test change is in the shared media/action path. (src/infra/outbound/AGENTS.md:1, 05b3f1c29d73)
Current main behavior still blocks these text documents: Current main host-read document allowlist only includes CSV and Markdown among plain-text formats, and current docs say plain text and secret-like files are blocked for host-local sends. (src/media/web-media.ts:140, 05b3f1c29d73)
PR changes the shared owner boundary: The diff adds text/plain, application/json, and application/yaml to the shared host-read text validation path, restricts text/plain to .txt, and maps YAML extensions in media-core instead of patching a single channel. (src/media/web-media.ts:151, 30a589555b1e)
Call path checked: message actions resolve agent-scoped media access, build host-read load options only when readFile and local roots are present, then hydrate attachment payloads through loadWebMedia. (src/infra/outbound/message-action-runner.ts:1483, 05b3f1c29d73)
Regression coverage included: The PR adds coverage for YAML MIME mapping, host-local TXT hydration, JSON/YAML/YML document acceptance, .log rejection, and binary-disguise rejection for the new text document extensions. (src/media/web-media.test.ts:597, 30a589555b1e)

Likely related people:

steipete: Recent file history shows repeated work on shared media, outbound runner, fs-safe reuse, and this branch's maintainer docs commit. (role: recent area contributor; confidence: high; commits: 77f1359612f6, 68d0c0f2f5c4, 45feb37b1339; files: src/media/web-media.ts, packages/media-core/src/mime.ts, src/infra/outbound/message-action-params.ts)
mjamiv: Recent merged work staged sandboxed workspace media through the same reply/media path and is adjacent to host-local outbound media handling. (role: adjacent media delivery contributor; confidence: medium; commits: f22c3a518e4d; files: src/auto-reply/reply/reply-media-paths.ts, src/media/web-media.ts)
scotthuang: Recent browser/media work hardened MEDIA directive handling and reused shared media delivery, which overlaps the safety boundary affected by this PR. (role: adjacent security-boundary contributor; confidence: medium; commits: 7920af0c9ec4; files: src/media/web-media.ts, src/infra/outbound/message-action-runner.ts)
ngutman: Recent WhatsApp upload-file lowering touched the shared message-action media surface related to attachment hydration and delivery. (role: adjacent outbound upload contributor; confidence: medium; commits: 29f39db8578c; files: src/infra/outbound/message-action-params.ts)

What the crustacean ranks mean

🦀 challenger crab: rare, exceptional readiness with strong proof, clean implementation, and convincing validation.
🦞 diamond lobster: very strong readiness with only minor maintainer review expected.
🐚 platinum hermit: good normal PR, likely mergeable with ordinary maintainer review.
🦐 gold shrimp: useful signal, but proof or patch confidence is still limited.
🦪 silver shellfish: thin signal; proof, validation, or implementation needs work.
🧂 unranked krab: not merge-ready because proof is missing/unusable or there are serious correctness or safety concerns.
🌊 off-meta tidepool: rating does not apply to this item.

Shiny media proof means a screenshot, video, or linked artifact directly shows the changed behavior. Runtime, network, CSP, and security claims still need visible diagnostics.

How this review workflow works

ClawSweeper keeps one durable marker-backed review comment per issue or PR.
Re-runs edit this comment so the latest verdict, findings, and automation markers stay together instead of adding duplicate bot comments.
A fresh review can be triggered by eligible @clawsweeper re-review comments, exact-item GitHub events, scheduled/background review runs, or manual workflow dispatch.
PR/issue authors and users with repository write access can comment @clawsweeper re-review or @clawsweeper re-run on an open PR or issue to request a fresh review only.
Maintainers can also comment @clawsweeper review to request a fresh review only.
Fresh-review commands do not start repair, autofix, rebase, CI repair, or automerge.
Maintainer-only repair and merge flows require explicit commands such as @clawsweeper autofix, @clawsweeper automerge, @clawsweeper fix ci, or @clawsweeper address review.
Maintainers can comment @clawsweeper explain to ask for more context, or @clawsweeper stop to stop active automation.

simplyclever914 · 2026-05-09T06:48:38Z

Added the missing CHANGELOG.md entry in e6b12f9.

Validation run:

node scripts/test-projects.mjs src/media/web-media.test.ts src/media/mime.test.ts src/infra/outbound/message-action-runner.media.test.ts
Result: passed 3 Vitest shards (154 tests).

simplyclever914 · 2026-05-09T06:51:34Z

Rebased on current origin/main to clear the dirty merge state and kept the changelog entry.

New head: 168152434b

Validation after rebase:

node scripts/test-projects.mjs src/media/web-media.test.ts src/media/mime.test.ts src/infra/outbound/message-action-runner.media.test.ts
Result: passed 3 Vitest shards (154 tests).

simplyclever914 · 2026-05-09T06:56:47Z

Rebased onto current origin/main and pushed 0a743101f2.

While checking the current-head CI failure, checks-node-core-runtime-infra-state was failing in the global-update sidecar fixture tests (matrix/helper-api.js). That path was already removed from the bundled runtime sidecar list on latest main, so I updated those test fixtures to use an actually packaged runtime sidecar (telegram/runtime-api.js).

Validation run after the rebase/fix:

node scripts/test-projects.mjs src/infra/update-global.test.ts src/infra/update-runner.test.ts — passed 1 Vitest shard (68 tests)
node scripts/test-projects.mjs src/media/web-media.test.ts src/media/mime.test.ts src/infra/outbound/message-action-runner.media.test.ts — passed 3 Vitest shards (154 tests)

simplyclever914 · 2026-05-09T09:07:42Z

Fixed the ClawSweeper P2 finding about text/plain being too broad.

Change:

text/plain host-read sends are now extension-scoped to .txt only.
Added regression coverage that valid text in .log is rejected even though .log maps to text/plain.

Validation:

node scripts/test-projects.mjs src/media/web-media.test.ts src/media/mime.test.ts src/infra/outbound/message-action-runner.media.test.ts
Result: passed 3 Vitest shards (155 tests).

New head: 4f051cae1c.

simplyclever914 · 2026-05-09T10:05:09Z

Rebased on latest main and resolved the changelog conflict.

Validation:

node scripts/run-vitest.mjs run --config test/vitest/vitest.unit-fast.config.ts src/media/mime.test.ts (89 passed)
node scripts/run-vitest.mjs run --config test/vitest/vitest.media.config.ts src/media/web-media.test.ts (47 passed)
node scripts/run-vitest.mjs run --config test/vitest/vitest.infra.config.ts src/infra/outbound/message-action-runner.media.test.ts (19 passed)

simplyclever914 · 2026-05-09T10:17:27Z

Rebased onto current origin/main and pushed 2f800d7b9c.

Validation run locally:

pnpm exec vitest run test/scripts/root-package-overrides.test.ts src/media/mime.test.ts src/media/web-media.test.ts src/infra/outbound/message-action-runner.media.test.ts — 157 passed
pnpm exec oxlint test/scripts/root-package-overrides.test.ts src/media/web-media.ts src/media/mime.ts src/infra/outbound/message-action-runner.media.test.ts src/media/web-media.test.ts src/media/mime.test.ts — 0 errors

Also included a tiny guardrail test update for the current Bedrock runtime override already present on main, which was tripping the build artifact shard.

dankarization · 2026-05-27T16:40:09Z

Small follow-up split out for the remaining APK case: #87349.

This keeps #79658 scoped to validated host-local txt/json/yaml/yml document sends.
The new PR only adds host-local .apk through the existing safe-document path, plus targeted tests/docs.

RomneyDa · 2026-05-29T06:31:21Z

Heads up: this PR needs to be updated against current main before the new required Dependency Guard check can pass.

openclaw-mantis · 2026-05-31T10:10:09Z

Mantis Telegram Desktop Proof

Summary: Mantis captured native Telegram Desktop before/after GIFs: Main shows the text document send failing, while this PR shows the TXT file delivered as a Telegram document.

Scenario: telegram-desktop-proof
Trigger: pull_request_target
Run: https://github.com/openclaw/openclaw/actions/runs/26709274051
Artifact: https://github.com/openclaw/openclaw/actions/runs/26709274051/artifacts/7315854049
Baseline: pass at 7606e1dd3d3fa9b311b6afc0bd92d03de00292bb, expected baseline visual proof captured
Candidate: pass at 6451c9a9b7d9cd9104af5210d4bffccbfbf687ec, expected candidate visual proof captured
Overall: true

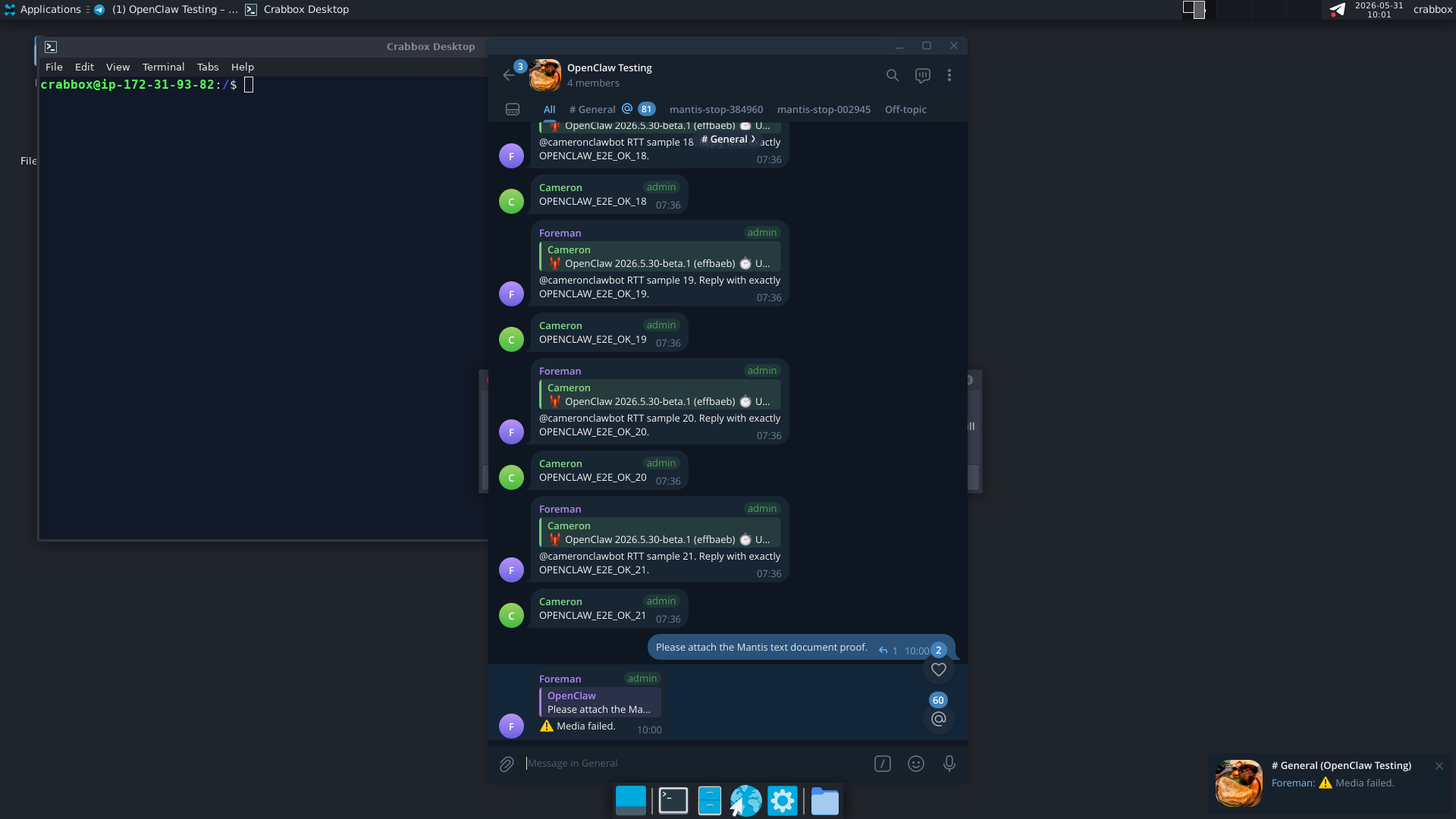

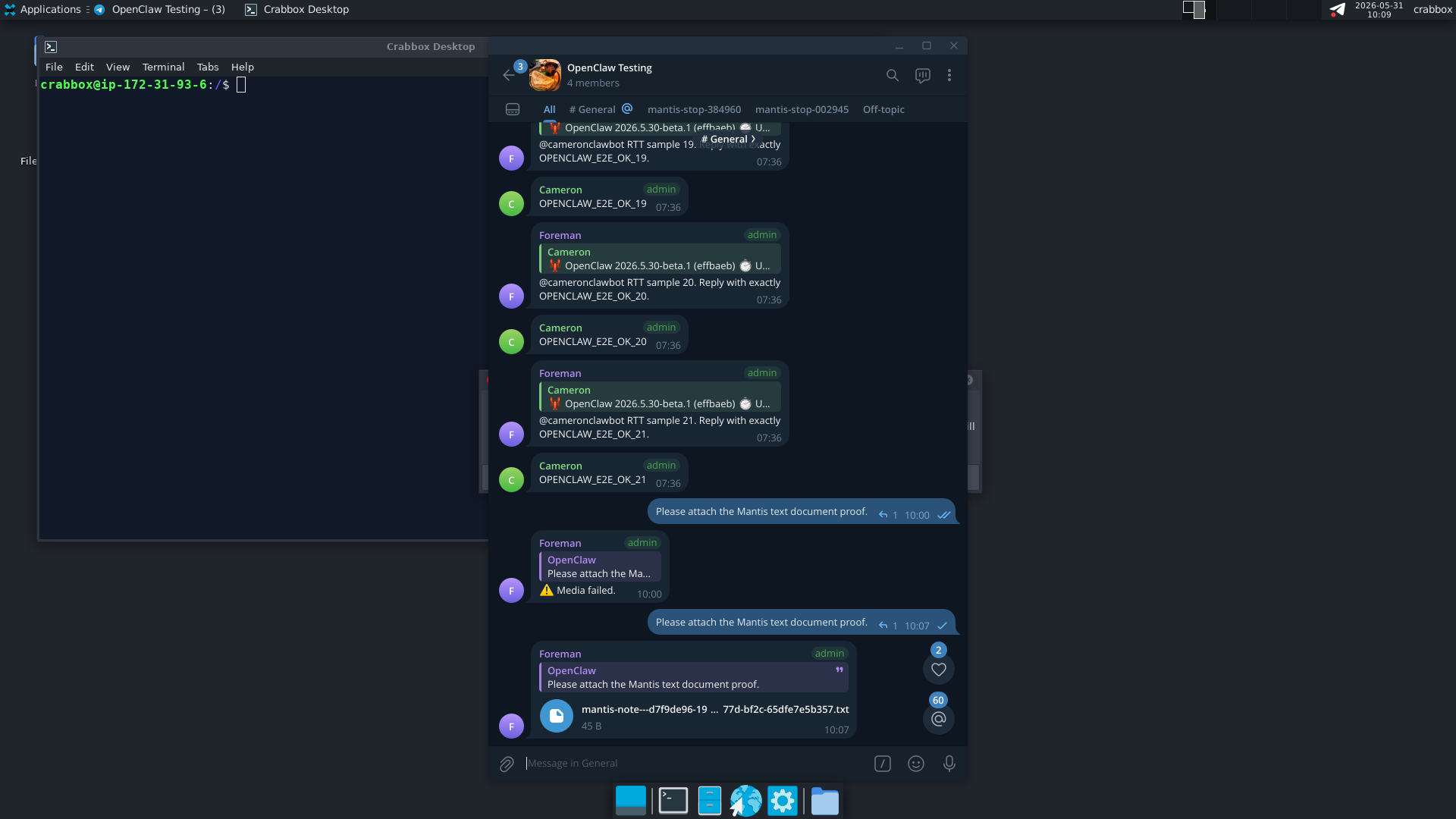

Main screenshot	This PR screenshot

Main	This PR

Motion-trimmed clips:

Raw QA files: https://artifacts.openclaw.ai/mantis/telegram-desktop/pr-79658/run-26709274051-1/index.json

steipete · 2026-05-31T17:52:21Z

Landed via rebase merge in e014145. Thanks @simplyclever914.

Proof before landing:

Local targeted tests: node scripts/run-vitest.mjs packages/media-core/src/mime.test.ts src/media/web-media.test.ts src/infra/outbound/message-action-runner.media.test.ts
Local docs sanity: pnpm docs:list
Local whitespace check: git diff --check
Autoreview: clean, no accepted/actionable findings
GitHub CI: PR checks passed on head 30a5895 before merge

I also added the maintainer docs follow-up so the host-local text document examples explicitly mention Markdown/MD alongside TXT/JSON/YAML/YML.

openclaw-barnacle Bot added size: S triage: needs-real-behavior-proof Candidate: external PR needs after-fix proof from a real setup. labels May 9, 2026

openclaw-barnacle Bot added proof: supplied External PR includes structured after-fix real behavior proof. and removed triage: needs-real-behavior-proof Candidate: external PR needs after-fix proof from a real setup. labels May 9, 2026

simplyclever914 force-pushed the fix/allow-text-media-documents branch from 21c29cb to 1b0b351 Compare May 9, 2026 05:40
