SliderInt & Combo without label text interaction issue #2475

@ElectricSquid

Description

@ElectricSquid

Version/Branch of Dear ImGui:

Version: 1.69
Branch: MASTER

Back-end/Renderer/Compiler/OS

Back-ends: imgui_impl_win32.cpp + imgui_impl_dx11.cpp
Compiler: VS2017
Operating System: Windows 10

My Issue/Question:

When you have a SliderInt above a Combo, without text in the label fields of both, when interacting with the combo, it will interact with the slider instead. If you however have a label propagated on either, the issue does not persist.

Is this behavior a bug, or is this expected? I do not wish to have text next to either the slider or combo in my project so it would be nice if I don't need it.

Screenshots/Video

Here's an example without the text, creating the issue.
imgui_bug_notext

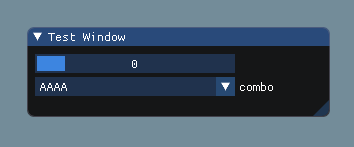

Here's another example but with text that eliminates the issue.
imgui_bug_withtext

Standalone, minimal, complete and verifiable example:

{
            ImGui::Begin("Test Window");

            static int int0= 0;
            ImGui::PushItemWidth(200);
            ImGui::SliderInt("", &int0, 0, 6);

            const char* items[] = { "AAAA", "BBBB", "CCCC", "DDDD" };
            static int item_current = 0;
            ImGui::Combo("", &item_current, items, IM_ARRAYSIZE(items));

            ImGui::End();
}

This one with text propagating the combo to eliminate the issue.

{
            ImGui::Begin("Test Window");

            static int int0= 0;
            ImGui::PushItemWidth(200);
            ImGui::SliderInt("", &int0, 0, 6);

            const char* items[] = { "AAAA", "BBBB", "CCCC", "DDDD" };
            static int item_current = 0;
            ImGui::Combo("combo", &item_current, items, IM_ARRAYSIZE(items));

            ImGui::End();
}
