[Settings UI] Represent Cursor Height as a slider by eugenesmlv · Pull Request #9386 · microsoft/terminal

eugenesmlv · 2021-03-05T09:21:13Z

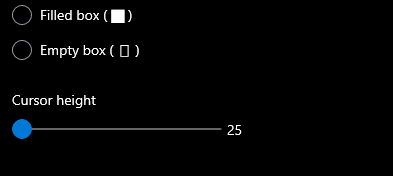

Change the vintage cursor height number box to a slider.

References

Related: #9370

PR Checklist

Closes Represent Cursor Height as a slider #9377
zadjii-msft edit: Now this one closes Allow "vintage" cursor to have values lower than 25 #9175
CLA signed. If not, go over here and sign the CLA
Schema updated.
Documentation updated here: Update cursorHeight minimum value MicrosoftDocs/terminal#278

Detailed Description of the Pull Request / Additional comments

It seems like the cursor height couldn't be lower than 25 percent regardless of the given value, so I've changed the MinCursorHeightPercent in CustomTextRenderer header file.

Validation Steps Performed

Manual validation

zadjii-msft

This looks great to me!

zadjii-msft · 2021-03-05T11:33:12Z

@msftbot make sure @carlos-zamora signs off on this

ghost · 2021-03-05T11:33:18Z

Hello @zadjii-msft!

Because you've given me some instructions on how to help merge this pull request, I'll be modifying my merge approach. Here's how I understand your requirements for merging this pull request:

I'll only merge this pull request if it's approved by @carlos-zamora

If this doesn't seem right to you, you can tell me to cancel these instructions and use the auto-merge policy that has been configured for this repository. Try telling me "forget everything I just told you".

carlos-zamora

The UI looks perfect! Nice work! Only thing I'm worried about is changing the min value to be less than 25. So I tagged some team members with more experience there.

Thanks for updating the schema. I bet we specifically mention a minimum of 25 in the docs too. Mind making a PR over there and updating that too (then linking it here)?

Other than that, this is perfect! Thank you so much!

carlos-zamora · 2021-03-05T18:23:26Z

src/renderer/dx/CustomTextRenderer.h

    };

-    constexpr const ULONG MinCursorHeightPercent = 25;
+    constexpr const ULONG MinCursorHeightPercent = 1;


(oops, the comment didn't save)

Only thing I'm concerned about is some kind of side effect here.

@miniksa @DHowett Any ideas why this was set to 25 before? Will this horrifically explode in some way?

So if we set the value to something less than 25, the cursor height updates accordingly right? We're not clamping it to 25 anymore, so setting it to less than 25 actually get smaller?

I bet we specifically mention a minimum of 25 in the docs too. Mind making a PR over there and updating that too (then linking it here)?

Sure! But I could not found any mention of the minimum cursor height value in docs. Do you mean documentation in the doc folder or there is a separate repo for that?

The cursor becomes smaller on values less than 25, but if I set the value to less than 6, the cursor disappears.

I probably found why the minimum value was set to 25:

terminal/src/buffer/out/cursor.h

Lines 28 to 30 in ae550e0

// the following values are used to create the textmode cursor.

static constexpr unsigned int CURSOR_SMALL_SIZE = 25; // large enough to be one pixel on a six pixel font

Sure! But I could not found any mention of the minimum cursor height value in docs. Do you mean documentation in the doc folder or there is a separate repo for that?

Ah, yes. My bad. I'm thinking about this section of the docs site, in particular. That's generated by our docs repo here.

The cursor becomes smaller on values less than 25, but if I set the value to less than 6, the cursor disappears.

I probably found why the minimum value was set to 25:

Hmm. That "large enough to be one pixel on a six pixel font" comment seems like a reason keep the minimum size to 25 imo. I think we should revert the changes to the schema and renderer, and change the minimum value on the slider to 25 then.

But I definitely want Michael or Dustin to check on this one to be safe (along with what you found in the GdiEngine).

Sorry for blocking on such an annoying little thing!

So, if we revert the minimum value back to 25 shouldn't we also change the slider to number box? The slider looks prettier, but one with minimum value of 25 seems a little bit odd, in my opinion.

eugenesmlv · 2021-03-05T21:43:19Z

I've changed the minimum cursor height value in CustomTextRenderer.h, but there is another one in gdirenderer.hpp which is used in GdiEngine::PaintCursor method. Should we also change that?

terminal/src/renderer/gdi/gdirenderer.hpp

Lines 153 to 154 in 4c53c59


           static const ULONG s_ulMinCursorHeightPercent = 25;

           static const ULONG s_ulMaxCursorHeightPercent = 100;

terminal/src/renderer/gdi/paint.cpp

Lines 588 to 590 in 4c53c59


           ULONG ulHeight = options.ulCursorHeightPercent;

           ulHeight = std::max(ulHeight, s_ulMinCursorHeightPercent); // No smaller than 25%

           ulHeight = std::min(ulHeight, s_ulMaxCursorHeightPercent); // No larger than 100%

zadjii-msft · 2021-03-08T22:44:24Z

@carlos-zamora or @miniksa: This is the one we talked about in team sync today - I'll follow up with the clamp-to-1px thing we mentioned

miniksa · 2021-03-08T22:46:14Z

I've changed the minimum cursor height value in CustomTextRenderer.h, but there is another one in gdirenderer.hpp which is used in GdiEngine::PaintCursor method. Should we also change that?

terminal/src/renderer/gdi/gdirenderer.hpp

Lines 153 to 154 in 4c53c59

static const ULONG s_ulMinCursorHeightPercent = 25;

static const ULONG s_ulMaxCursorHeightPercent = 100;

terminal/src/renderer/gdi/paint.cpp

Lines 588 to 590 in 4c53c59

ULONG ulHeight = options.ulCursorHeightPercent;

ulHeight = std::max(ulHeight, s_ulMinCursorHeightPercent); // No smaller than 25%

ulHeight = std::min(ulHeight, s_ulMaxCursorHeightPercent); // No larger than 100%

Please don't update the GdiEngine for this. Update only the DxEngine one.

eugenesmlv · 2021-03-09T15:58:18Z

src/renderer/dx/CustomTextRenderer.cpp

        // Enforce min/max cursor height
        ULONG ulHeight = std::clamp(options.ulCursorHeightPercent, MinCursorHeightPercent, MaxCursorHeightPercent);
        ulHeight = (glyphSize.height<ULONG>() * ulHeight) / 100;
+        ulHeight = std::max(ulHeight, MinCursorHeightPixels); // No smaller than 1px


@carlos-zamora, @zadjii-msft what if we restrict the minimum cursor height value to 1px? On values less than 25 the cursor is getting smaller until it reaches the 1px height. If one decreases the value further, it won't change anything.

If you think it's ok, I'll also update the docs.

I'm ok with that. 😊

carlos-zamora

Thanks for doing this!

ghost · 2021-03-09T17:13:29Z

Hello @carlos-zamora!

Because this pull request has the AutoMerge label, I will be glad to assist with helping to merge this pull request once all check-in policies pass.

p.s. you can customize the way I help with merging this pull request, such as holding this pull request until a specific person approves. Simply @mention me (`@msftbot`) and give me an instruction to get started! Learn more here.

Documentation update for microsoft/terminal#9386

eugenesmlv · 2021-03-09T20:36:54Z

Sorry for commenting in closed PR, but I don't think it worth creating a new issue.

Please don't update the GdiEngine for this. Update only the DxEngine one.

@miniksa could you please explain a little more about the GdiEngine and why one shouldn't update it along with the DxEngine? I've read the How are the Windows graphics/messaging stack assembled? doc's section (great explanation, by the way!) but still can't find an answer.

zadjii-msft · 2021-03-09T20:42:47Z

The GdiEngine is the one that's used for drawing the vintage console host (conhost.exe). The DxEngine is only used by the Terminal. He was just asking to make sure that this change was only scoped to the DxEngine, so that the vintage console host didn't change behavior. We can't change the console as easily as we can the Terminal ☺️

miniksa · 2021-03-09T20:48:27Z

Sorry for commenting in closed PR, but I don't think it worth creating a new issue.

Please don't update the GdiEngine for this. Update only the DxEngine one.

@miniksa could you please explain a little more about the GdiEngine and why one shouldn't update it along with the DxEngine? I've read the How are the Windows graphics/messaging stack assembled? section (great explanation, by the way!) but still can't find an answer.

Couple things:

The GdiEngine is only used for the conhost.exe/OpenConsole.exe product, also known as the inbox windows console, for its headed window implementation. The Windows Terminal product, by contrast, uses DxEngine instead. Given this PR is coming in from the perspective of the Terminal settings UI, I thought it appropriate to scope it to the Terminal rendering targets only.
Scoping to only Terminal, and not the inbox console, drops a lot of potential compatibility and OS interaction concerns off my mind. For instance, there could be some interaction I'm not foreseeing with the property sheet (console.dll) or the conhost settings processing that could cause a bug. It could be that someone out there is using a regkey with a size of 12% for their cursor implementation on a factory line, but because it always bottomed out graphically at 25% for the GDI renderer, it was never a problem. In a perfect world, our code base would have checked the 25% minimum in the propsheet, console settings code, and at the renderer, but it's highly possible and even probable that this is the only check.
Our long term goal is that no one will use the classic console window and by extension the GdiEngine anymore once Terminal can completely replace it. Or at least replace the graphical and interaction components as ConPTY will still need to be there no matter what. So I'd rather not spend effort on it and avoid potential unpredictable future bug investigations by just... not changing it if we don't NEED to.

eugenesmlv · 2021-03-09T20:50:12Z

Thanks! Now it became clear to me 😊

ghost · 2021-04-14T17:08:27Z

🎉Windows Terminal Preview v1.8.1032.0 has been released which incorporates this pull request.:tada:
