Unicode Box drawings characters not rendered correctly (disappear) with Japanese fonts #13527
Description
Windows Terminal version
1.13.11432.0
Windows build number
10.0.22000.0
Other Software
MyricaM https://github.com/tomokuni/Myrica/raw/master/product/MyricaM.7z
Ricty Diminished https://github.com/mzyy94/RictyDiminished-for-Powerline/blob/master/RictyDiminished-Regular.ttf
Steps to reproduce
- Set font face to e.g. MyricaM M.
- Print characters like
U+2500 BOX DRAWINGS LIGHT HORIZONTALandU+2502 BOX DRAWINGS LIGHT VERTICALby running e.g.tree.
/tmp/test
├── bar
│ └── baz
└── foo
1 directory, 2 files
Expected Behavior
─ and │ are printed.
Actual Behavior
Those characters are rendered improperly.

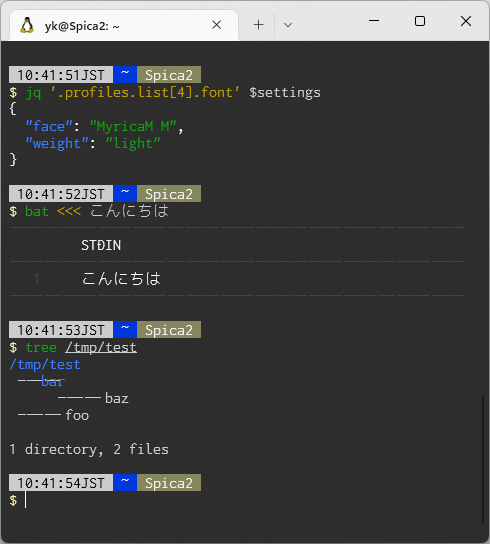

MyricaM M ... vertical bars are missing, and horizontal bars have wrong width
Ricty Diminished ... horizontal bars are missing
Lucida Console ... OK (though Japanese characters fall back to another font (I can't tell which font), causing weird spacing between letters)
