[ETCM-555] Add metrics on the time taken to download blocks (headers, bodies and receipts) and also MPT nodes. Expose in Grafana other already existing metrics.#905

Merged
leo-bogastry merged 2 commits intodevelopfrom
feature/ETCM-555-add-fastsync-metrics-on-blocks
Feb 2, 2021
Merged

[ETCM-555] Add metrics on the time taken to download blocks (headers, bodies and receipts) and also MPT nodes. Expose in Grafana other already existing metrics.#905
leo-bogastry merged 2 commits intodevelopfrom
feature/ETCM-555-add-fastsync-metrics-on-blocks

Conversation

@leo-bogastry
Copy link
Copy Markdown
Contributor

@leo-bogastry leo-bogastry commented Jan 26, 2021 •
edited
Loading

Description

The goal of this PR is help measuring FastSync performance.

Proposed Solution

Some metrics were already in place but were not available in the local docker-compose with Grafana setup. Following metrics added to Grafana:

fastsync.block.pivotBlock.number.gauge
fastsync.block.bestFullBlock.number.gauge
astsync.block.bestHeader.number.gauge
fastsync.state.totalNodes.gauge
fastsync.state.downloadedNodes.gauge

Other measurement were already being done, but were not available on a metric (time elapsed during the download of headers bodies and receipts). Following metrics added:

fastsync.block.downloadBlockHeaders.timer
fastsync.block.downloadBlockBodies.timer
fastsync.block.downloadBlockReceipts.timer
fastsync.state.downloadState.timer

The elapsed time is now being calculated using System.nanoTime() instead of System.currentTimeMillis(), because System.nanoTime() is more reliable when calculated elapsed time

@leo-bogastry leo-bogastry force-pushed the feature/ETCM-555-add-fastsync-metrics-on-blocks branch from 886947b to ba96706 Compare January 26, 2021 14:02
jvdp
jvdp reviewed Jan 26, 2021
View reviewed changes
Comment thread src/main/scala/io/iohk/ethereum/blockchain/sync/fast/FastSync.scala Outdated
@leo-bogastry leo-bogastry force-pushed the feature/ETCM-555-add-fastsync-metrics-on-blocks branch 2 times, most recently from 2e4e249 to d5c848e Compare January 27, 2021 13:52
@leo-bogastry leo-bogastry changed the title [ETCM-555] Add metrics on the download of headers, bodies and receipts during FastSync. Exposed other already existing metrics [ETCM-555] [ETCM-555] Add metrics on the time taken to download blocks (headers, bodies and receipts) and also MPT nodes. Expose in Grafana other already existing metrics. Jan 27, 2021
@leo-bogastry
Copy link
Copy Markdown
Contributor Author

leo-bogastry commented Jan 27, 2021 •
edited
Loading

I have added one more metric about the total time it takes to download MPT nodes, the value was already available and being printed in logs. I have also adjusted current metrics to be histograms instead (and fixed the naming)
Screenshots of added panels in Grafana:
Screenshot 2021-01-27 at 17 07 15
Screenshot 2021-01-27 at 14 47 58

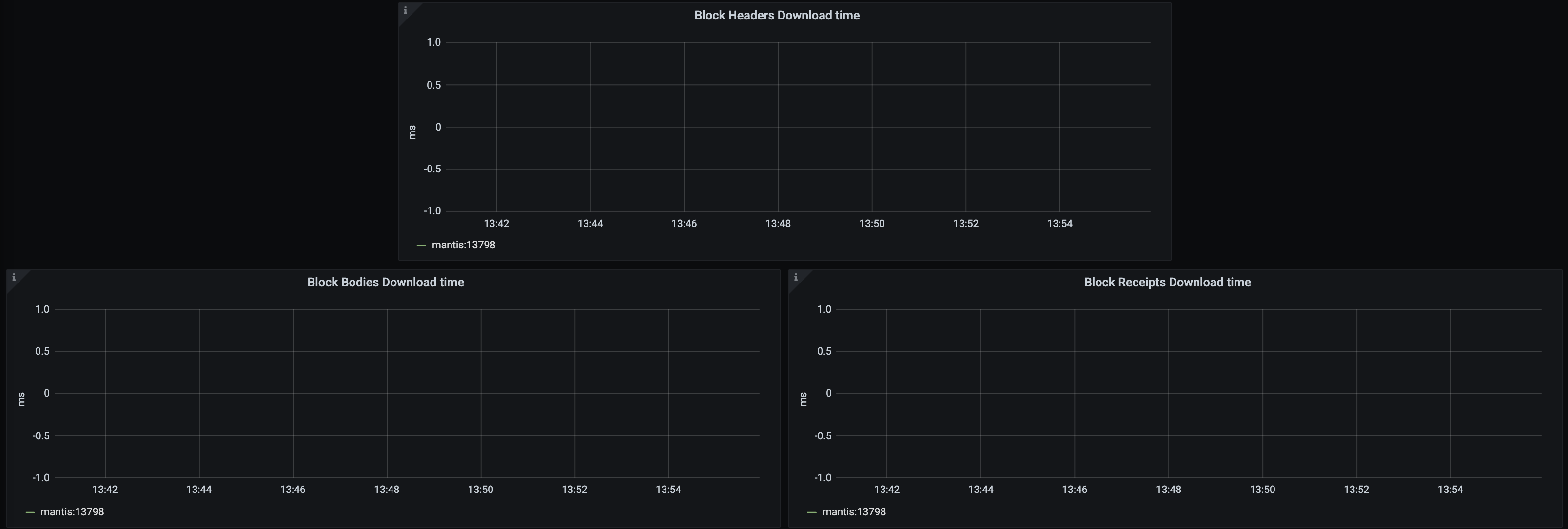

Screenshot 2021-01-27 at 14 55 57

I'm sorry that the last panel is not showing data!

@leo-bogastry leo-bogastry changed the title [ETCM-555] [ETCM-555] Add metrics on the time taken to download blocks (headers, bodies and receipts) and also MPT nodes. Expose in Grafana other already existing metrics. [ETCM-555] Add metrics on the time taken to download blocks (headers, bodies and receipts) and also MPT nodes. Expose in Grafana other already existing metrics. Jan 27, 2021
@leo-bogastry leo-bogastry force-pushed the feature/ETCM-555-add-fastsync-metrics-on-blocks branch from d5c848e to a5237ff Compare January 27, 2021 14:44
@leo-bogastry leo-bogastry mentioned this pull request Jan 27, 2021
Merged
@leo-bogastry leo-bogastry force-pushed the feature/ETCM-555-add-fastsync-metrics-on-blocks branch 2 times, most recently from e240c39 to 1165721 Compare January 27, 2021 16:08
@leo-bogastry
Copy link
Copy Markdown
Contributor Author

leo-bogastry commented Jan 27, 2021

Some last adjustments done

@leo-bogastry leo-bogastry force-pushed the feature/ETCM-555-add-fastsync-metrics-on-blocks branch 2 times, most recently from f4a0620 to 0516e16 Compare January 28, 2021 12:49
@leo-bogastry
Copy link
Copy Markdown
Contributor Author

leo-bogastry commented Jan 28, 2021 •
edited
Loading

I have undone the modification of using System.nanoTime instead of System.currentTimeMillis(), given the discussion that took place in #907 (comment)

robinraju
robinraju approved these changes Jan 28, 2021
View reviewed changes
Copy link
Copy Markdown
Contributor

@robinraju robinraju left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

🚀

@leo-bogastry leo-bogastry force-pushed the feature/ETCM-555-add-fastsync-metrics-on-blocks branch 2 times, most recently from a721eb1 to bf9de95 Compare January 28, 2021 13:56
@leo-bogastry
Copy link
Copy Markdown
Contributor Author

leo-bogastry commented Jan 28, 2021

Rebased with develop

AnastasiiaL
AnastasiiaL reviewed Jan 28, 2021
View reviewed changes
Comment thread src/main/scala/io/iohk/ethereum/blockchain/sync/fast/SyncMetrics.scala
object SyncMetrics extends MetricsContainer {

private[this] final val PivotBlockNumberGauge =
private final val PivotBlockNumberGauge =
Copy link
Copy Markdown
Contributor

@AnastasiiaL AnastasiiaL Jan 28, 2021

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

shall we keep private[this]? it imposes a bigger restriction

Copy link
Copy Markdown
Contributor Author

@leo-bogastry leo-bogastry Jan 28, 2021

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

As far as I understand private[this] is not more restrictive. No place outside this object can access that val already, or tries to

Copy link
Copy Markdown
Contributor

@AnastasiiaL AnastasiiaL Jan 28, 2021

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

[private] makes it available to the current instance and other instances of the class it’s declared in. Since we are already using a singleton - there are no other instances that could access it. So there's no difference in this case. Some consider it a good practice to default to the highest restriction, I guess this was the reason private[this] was used here on the first place. We could make a decision as a team on which guideline to follow

dzajkowski
dzajkowski reviewed Jan 29, 2021
View reviewed changes
Comment thread src/main/scala/io/iohk/ethereum/blockchain/sync/fast/FastSync.scala
updatePivotBlock(ImportedLastBlock)
case ValidationFailed(header, peerToBlackList) =>
log.warning(s"validation of header ${header.idTag} failed")
log.warning("validation of header {} failed", header.idTag)
Copy link
Copy Markdown
Contributor

@dzajkowski dzajkowski Jan 29, 2021

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

oh no.... we need to move to a proper logging wrapper. making ticket.

@leo-bogastry leo-bogastry force-pushed the feature/ETCM-555-add-fastsync-metrics-on-blocks branch from bf9de95 to a203ed3 Compare February 1, 2021 08:31
@leo-bogastry
Copy link
Copy Markdown
Contributor Author

leo-bogastry commented Feb 1, 2021

Rebased

ten15bit
ten15bit reviewed Feb 1, 2021
View reviewed changes
Comment thread docker/monitoring/grafana/provisioning/dashboards/mantis-dashboard.json Outdated
[ETCM-555] Add metrics on the time taken to download blocks (headers,…
f742fb4
… bodies and receipts) and also MPT nodes. Expose in Grafana other already existing metrics.
@leo-bogastry leo-bogastry force-pushed the feature/ETCM-555-add-fastsync-metrics-on-blocks branch from a203ed3 to f742fb4 Compare February 1, 2021 09:22
ten15bit
ten15bit approved these changes Feb 1, 2021
View reviewed changes
Copy link
Copy Markdown
Contributor

@ten15bit ten15bit left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

👍

@leo-bogastry leo-bogastry merged commit e581c7b into develop Feb 2, 2021
@leo-bogastry leo-bogastry deleted the feature/ETCM-555-add-fastsync-metrics-on-blocks branch February 2, 2021 07:54
