Formatting of system schedule cycle detected error is very hard to follow when many systems form a cycle #7367
Description
Bevy version
#7267, using the new schedule_v3 module.
Problem

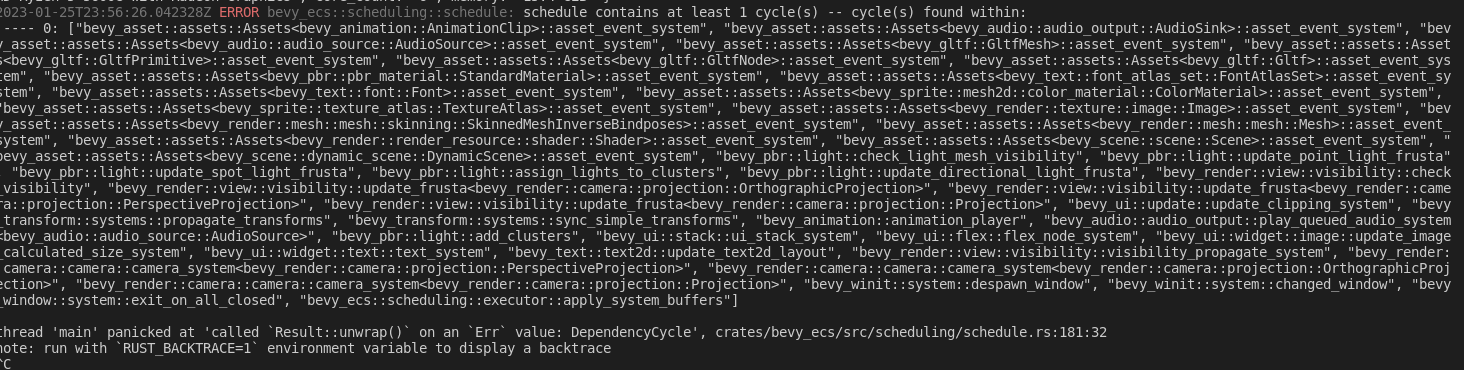

When cycles are detected, the error message is very hard to read:
schedule contains at least 1 cycle(s) -- cycle(s) found within:
---- 0: ["bevy_asset::assets::Assets<bevy_animation::AnimationClip>::asset_event_system", "bevy_asset::assets::Assets<bevy_audio::audio_output::AudioSink>::asset_event_system", "bevy_asset::assets::Assets<bevy_audio::audio_source::AudioSource>::asset_event_system", "bevy_asset::assets::Assets<bevy_gltf::GltfMesh>::asset_event_system", "bevy_asset::assets::Assets<bevy_gltf::GltfPrimitive>::asset_event_system", "bevy_asset::assets::Assets<bevy_gltf::GltfNode>::asset_event_system", "bevy_asset::assets::Assets<bevy_gltf::Gltf>::asset_event_system", "bevy_asset::assets::Assets<bevy_pbr::pbr_material::StandardMaterial>::asset_event_system", "bevy_asset::assets::Assets<bevy_text::font_atlas_set::FontAtlasSet>::asset_event_system", "bevy_asset::assets::Assets<bevy_text::font::Font>::asset_event_system", "bevy_asset::assets::Assets<bevy_sprite::mesh2d::color_material::ColorMaterial>::asset_event_system", "bevy_asset::assets::Assets<bevy_sprite::texture_atlas::TextureAtlas>::asset_event_system", "bevy_asset::assets::Assets<bevy_render::texture::image::Image>::asset_event_system", "bevy_asset::assets::Assets<bevy_render::mesh::mesh::skinning::SkinnedMeshInverseBindposes>::asset_event_system", "bevy_asset::assets::Assets<bevy_render::mesh::mesh::Mesh>::asset_event_system", "bevy_asset::assets::Assets<bevy_render::render_resource::shader::Shader>::asset_event_system", "bevy_asset::assets::Assets<bevy_scene::scene::Scene>::asset_event_system", "bevy_asset::assets::Assets<bevy_scene::dynamic_scene::DynamicScene>::asset_event_system", "bevy_pbr::light::check_light_mesh_visibility", "bevy_pbr::light::update_point_light_frusta", "bevy_pbr::light::update_spot_light_frusta", "bevy_pbr::light::assign_lights_to_clusters", "bevy_pbr::light::update_directional_light_frusta", "bevy_render::view::visibility::check_visibility", "bevy_render::view::visibility::update_frusta<bevy_render::camera::projection::OrthographicProjection>", "bevy_render::view::visibility::update_frusta<bevy_render::camera::projection::PerspectiveProjection>", "bevy_render::view::visibility::update_frusta<bevy_render::camera::projection::Projection>", "bevy_ui::update::update_clipping_system", "bevy_transform::systems::propagate_transforms", "bevy_transform::systems::sync_simple_transforms", "bevy_animation::animation_player", "bevy_audio::audio_output::play_queued_audio_system<bevy_audio::audio_source::AudioSource>", "bevy_pbr::light::add_clusters", "bevy_ui::stack::ui_stack_system", "bevy_ui::flex::flex_node_system", "bevy_ui::widget::image::update_image_calculated_size_system", "bevy_ui::widget::text::text_system", "bevy_text::text2d::update_text2d_layout", "bevy_render::view::visibility::visibility_propagate_system", "bevy_render::camera::camera::camera_system<bevy_render::camera::projection::PerspectiveProjection>", "bevy_render::camera::camera::camera_system<bevy_render::camera::projection::OrthographicProjection>", "bevy_render::camera::camera::camera_system<bevy_render::camera::projection::Projection>", "bevy_winit::system::despawn_window", "bevy_winit::system::changed_window", "bevy_window::system::exit_on_all_closed", "bevy_ecs::scheduling::executor::apply_system_buffers"]
thread 'main' panicked at 'called `Result::unwrap()` on an `Err` value: DependencyCycle', crates/bevy_ecs/src/scheduling/schedule.rs:181:32
note: run with `RUST_BACKTRACE=1` environment variable to display a backtraceThese don't have the appropriate line breaks in the terminal.
Proposed fixes
- Use double line breaks for each cycle, and single line breaks for each system.
- Use short-names by default, with an option to see the full name.
- List the total number of disconnected cycles at the top of the error message.
- List the sets that each system is in.
Ambiguity detection recently had similar changes made; check that code for breadcrumbs.
If some of these fixes end up being more involved, submit the easy ones in their own PR.
