Determine the rotor symmetry number from the potential scan by alongd · Pull Request #1526 · ReactionMechanismGenerator/RMG-Py

alongd · 2018-12-19T16:44:43Z

Motivation or Problem

We'd like to allow Arkane to automatically determine rotor symmetry numbers. It is essential for automated thermo and rate codes using Arkane, like ARC. This feature is purposely added to Arkane and not ARC to benefit all users (if it works correctly, it could assist users to avoid making errors).

Description of Changes

A function for rotor symmetry determination was added to statmech.py.
The primary criterion used for determining whether a scan has symmetry or not is a comparison between peak/valley height difference and the worst peak/valley resolution.

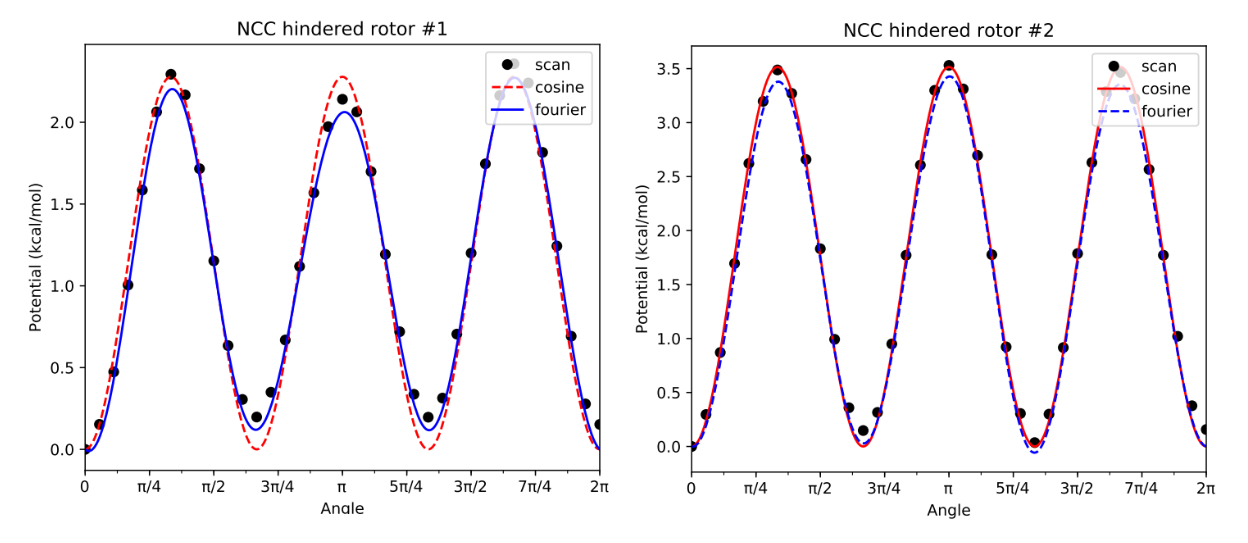

This feature is able to differentiate between the following challenging cases, the one on the left is not symmetric (although it might look like it is at first sight), and the second has a symmetry number of 3:

Testing

Tests for the rotors plotted above for ethylamine were added. A statmechTest.py file was created.

Reviewer Tips

Try running Arkane with two arbitrary rotor scans, one with symmetry and one without, and see (in the log file) whether the determined symmetry is correct.
