boards/cpu: Add GBA boot support to RIOT by Teufelchen1 · Pull Request #19519 · RIOT-OS/RIOT

Teufelchen1 · 2023-04-27T14:19:22Z

Contribution description

Hi! 🦦

After my draft showcasing threading & gpu acceleration support in #19430, this PR is the first step towards that goal.

Included are the following features:

Adding a board gba_cartridge. In the GBA-ecosystem, the CPU/SoC/etc. is always the same, however, cartridges might bring their own ROM, RAM, RTC, ... - This first gba_cartridge board doesn't add any features and is hence empty. The always required boot-rom is indirectly added via the cpu support. Here I need your help: If one wanted to add an other gba_cartridge_extra_ram, which features additional RAM (e.g. the Pokemon games do this!), the linker script needs to be adjusted. This script lies in the cpu folder. How could we model that in RIOT?
Adding the cpu arm7tdmi_gba. I choose this name as the GBA features an ARM7TDMI but with typical Nintendo limitations/changes. The support is very limited and this PR sets the focus on getting RIOT to build and boot. Here I need your help: What is the correct way to blacklist features that are not supported yet? e.g. Threading.
Startup assembly & GBA header. The GBA executes a BIOS before the flow of control is passed to RIOT. This BIOS checks the inserted cartridge if a specific header is present. This header includes, among other things, the Nintendo logo. ~~This logo is included in this PR~~. From what I can see in the homebrew-scene, people don't care anymore (and so did the uCLinux people back in the day) and it is unlikely for Nintendo to pursue legal actions. However, we might skip the risk and ask the user to provide a valid header file themselves. Update: I removed the logo, most emulators do not check the logo anyway.
Adding a stdio framebuffer driver. In order to run the hello-world example, a stdio driver is needed. The included driver called stdio_fb renders text to the LCD screen of the GBA. It brings it's own font. Help: Does RIOT already have it's own font? Could/ Should this driver be generalized and moved to the other stdio drivers?
In periph_cpu.h, many GBA special purpose register are listed. Help: Is that the correct location for such defines? As for the names, I tried to stick to the common naming convention of the homebrew-scene, mostly influenced by the "devKit pro".

Testing procedure

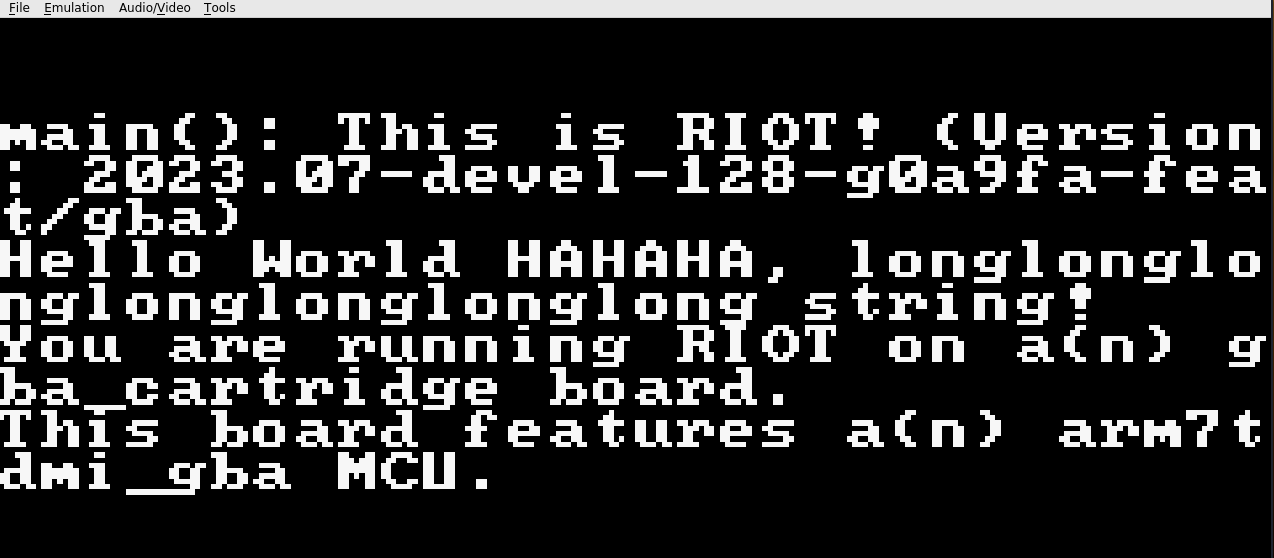

Grab an emulator of your choice. E.g. mgba. Then:

cd RIOT/example/hello-world
BOARD=gba_cartridge make
mgba bin/gba_cartridge/hello-world.bin

benpicco · 2023-04-28T11:22:36Z

cpu/arm7tdmi_gba/stdio_fb/stdio_fb.c

+
+static void clearScreen(void)
+{
+    memset(GBA_VRAM, 0x00, 240 * 160 * 2);


Let's use a define for width and height, we can likely reuse this code for other displays.

Why the * 2? Is this double-buffering or do we have 16 bit/pixel?

(I don't see any flip buffer / commit command - how (often) is the framebuffer sent to the display?)

I added the define for the screen size, got lost during refactoring oops.
The * 2 is indeed because of 15 bit/pixel yes, 15 - at least in the display-mode selected for stdio_fb. The graphic options/settings/modes are impressive for such a little device. When a proper "gpu driver" is added in the future (not in this PR), this will probably get a rework. I hence just added a comment for now.

There is no dedicated flip, the gpu redraws the current memory in the buffer automatically with ~60FPS. Ideally, you would wait for h-blank and then update the buffer, otherwise you'll get tearing. In this first PR, I just accepted that. :) By the way, the GBA can also do double-buffering if you ask nicely.

cpu/arm7tdmi_gba/include/cpu.h

cpu/arm7tdmi_gba/include/cpu_conf.h

benpicco · 2023-04-28T11:29:48Z

cpu/arm7tdmi_gba/include/cpu_conf.h

+/**
+ * @brief   Stack size used for the interrupt (ISR) stack
+ * @{
+ */
+#ifndef ISR_STACKSIZE
+#define ISR_STACKSIZE (400)
+#endif
+/** @} */
+
+/**
+ * @brief   Stack size used for the fast interrupt (FIQ) stack
+ * @{
+ */
+#define FIQ_STACKSIZE (64)
+/** @} */
+
+/**
+ * @brief   Stack size used for the supervisor mode (SVC) stack
+ * @{
+ */
+#define SVC_STACKSIZE (400)
+/** @} */
+
+/**
+ * @brief   Stack size used for the user mode/kernel init stack
+ * @{
+ */
+#define USR_STACKSIZE (4096)


If you find more things that should rather be in arm7_common (because you copied them verbatim from lpc23xx) better move them there instead of creating a copy.

I updated the file. I don't think it can be moved to arm7_common as the GBA differs a lot - I yet have to figure out how to translate "technical hardware description" into config file ;-) e.g. I changed most stacks to zero bytes as the GBA won't have these stacks (except the ISR, thats just not implemented yet).

cpu/arm7tdmi_gba/include/periph_cpu.h

MrKevinWeiss · 2023-05-05T11:12:43Z

Very nice, easy to setup and load... Would we add an emulator into RIOT as well?

MrKevinWeiss · 2024-03-26T16:44:22Z

you may squash if you want!

MrKevinWeiss · 2024-03-27T12:28:45Z

you may squash if you like. I also don't know about this introduce Makfile.default on this PR... might be a bit much (though a good idea).

riot-ci · 2024-03-27T12:54:41Z

Murdock results

✔️ PASSED

06c4cbb */Makefile.ci: Add gba_cartridge

Success	Failures	Total	Runtime
10045	0	10045	11m:54s

Artifacts

Documentation preview

MrKevinWeiss · 2024-03-27T14:42:55Z

Ahh you are also getting the rust failure...

MrKevinWeiss · 2024-03-27T14:51:29Z

also don't know about this introduce Makfile.default on this PR

Ahh seems like it is already a thing in RIOT (I learn something new everyday)

MrKevinWeiss

Not that I understand the internals of the GBA or the assembly but I believe @Teufelchen1 will be responsible for this and what I do know looks good. I tested it previously and saw it running. If murdock passes I think it is fine! ACK!

MrKevinWeiss · 2024-04-10T12:25:51Z

if you rebase I bet it will pass now :)

Teufelchen1 · 2024-04-10T14:51:54Z

Rebased + removed periph_pm from the provided features in a fixup. This should work now... x.x

maribu · 2024-04-10T19:06:29Z

🎉
