cpu/gd32v/periph_i2c: interrupt based driver by gschorcht · Pull Request #19269 · RIOT-OS/RIOT

gschorcht · 2023-02-12T15:35:53Z

Contribution description

This PR provides an interrupt-driven version of the I2C low-level driver.

The existing I2C low-level driver for GDVF103 uses a busy-waiting approach where the status register is continuously polled while waiting for a certain status when sending or receiving. The MCU is thus occupied the whole time during a send or receive operation.

The driver provided with this PR uses an interrupt-driven approach. This is, while waiting for a certain status when sending or receiving, the calling thread is suspended and woken up by interrupts.

Since the I2C controller allows to receive up to two bytes before the application has to react, receiving a single byte, two bytes or more than two bytes needs a different handling for correct receiption. This requires a tricky implementation which distinguish a number of different case. There the driver requires 860 byte more ROM and 8 byte more RAM.

Testing procedure

The driver should work with any I2C sensor/actuator. It was tested with

tests/driver_bmp180

Details

 main(): This is RIOT! (Version: 2023.04-devel-355-g940c7-cpu/gd32v/periph_i2c_interrupt_driven)
 BMP180 test application

 +------------Initializing------------+
 Initialization successful

 +------------Calibration------------+
 AC1: 8448
 AC2: -1208
 AC3: -14907
 AC4: 33310
 AC5: 24774
 AC6: 19213
 B1: 6515
 B2: 49
 MB: -32768
 MC: -11786
 MD: 2958

 +--------Starting Measurements--------+
 Temperature [°C]: 22.0
 Pressure [hPa]: 1006.49
 Pressure at see level [hPa]: 1025.55
 Altitude [m]: 157

 +-------------------------------------+
 Temperature [°C]: 22.0
 Pressure [hPa]: 1006.56
 Pressure at see level [hPa]: 1025.58
 Altitude [m]: 157

 +-------------------------------------+

tests/driver_ccs811

Details

 main(): This is RIOT! (Version: 2023.04-devel-355-g940c7-cpu/gd32v/periph_i2c_interrupt_driven)
 CCS811 test application

 +------------Initializing------------+

 +--------Starting Measurements--------+
 TVOC [ppb]: 0
 eCO2 [ppm]: 0
 +-------------------------------------+
 TVOC [ppb]: 0
 eCO2 [ppm]: 0
 +-------------------------------------+
 TVOC [ppb]: 0
 eCO2 [ppm]: 0
 +-------------------------------------+
 TVOC [ppb]: 0
 eCO2 [ppm]: 400
 +-------------------------------------+
 TVOC [ppb]: 0
 eCO2 [ppm]: 400
 +-------------------------------------+
 TVOC [ppb]: 0
 eCO2 [ppm]: 400
 +-------------------------------------+
 TVOC [ppb]: 7
 eCO2 [ppm]: 446
 +-------------------------------------+
 TVOC [ppb]: 7
 eCO2 [ppm]: 446
 +-------------------------------------+
 TVOC [ppb]: 7
 eCO2 [ppm]: 446
 +-------------------------------------+
 TVOC [ppb]: 7
 eCO2 [ppm]: 446
 +-------------------------------------+

tests/driver_sht3x

Details

main(): This is RIOT! (Version: 2023.04-devel-355-g940c7-cpu/gd32v/periph_i2c_interrupt_driven)
SHT3X test application

+------------Initializing------------+
Initialization successful


+--------Starting Measurements--------+
Temperature [°C]: 21.46
Relative Humidity [%]: 54.50
+-------------------------------------+
Temperature [°C]: 21.47
Relative Humidity [%]: 54.53
+-------------------------------------+
Temperature [°C]: 21.46
Relative Humidity [%]: 54.48
+-------------------------------------+
Temperature [°C]: 21.46
Relative Humidity [%]: 54.47
+-------------------------------------+

tests/driver_l3gxxxx

Details

main(): This is RIOT! (Version: 2023.04-devel-375-g75547-cpu/gd32v/periph_i2c_interrupt_driven)
L3GXXXX gyroscope driver test application

Initializing L3GXXXX sensor
[OK]

gyro [dps] x:    +0, y:    -1, z:    -2
gyro [dps] x:    +0, y:    +0, z:    +0
gyro [dps] x:    +0, y:    +0, z:    +0
gyro [dps] x:    +0, y:    +0, z:    +0
gyro [dps] x:    +0, y:    +0, z:    +0
gyro [dps] x:    +0, y:    +0, z:    +0
gyro [dps] x:    -1, y:    +0, z:    +4
gyro [dps] x:    +0, y:    +0, z:   -21
gyro [dps] x:    +0, y:    +0, z:    +6
gyro [dps] x:   -43, y:    +0, z:   -13
gyro [dps] x:   -21, y:    -2, z:    +0
gyro [dps] x:    +0, y:    +1, z:    +3
gyro [dps] x:   +25, y:    +0, z:    +0

tests/driver_hd44780 with pcf8574a I2C interface

Issues/PRs references

riot-ci · 2023-02-12T15:57:46Z

Murdock results

✔️ PASSED

5433dac cpu/gd32v/periph_i2c: interrupt based driver

Success	Failures	Total	Runtime
6865	0	6865	13m:36s

Artifacts

Documentation preview

benpicco

Looks good to me, just a minor comment

cpu/gd32v/periph/i2c.c

benpicco · 2023-02-13T16:25:59Z

cpu/gd32v/periph/i2c.c

    uint16_t tick = TICK_TIMEOUT;
-    while ((i2c->STAT1 & I2C_STAT1_I2CBSY_Msk) && tick--) {}
+    /* short busy waiting for the bus becoming free (I2CBSY is cleared) */
+    while ((i2c_config[dev].dev->STAT1 & I2C_STAT1_I2CBSY_Msk) && tick--) {}


So that's just the delay to power on the I2C peripheral, right?

No, it is only a very short delay from setting the STOP bit to sending the STOP condition on the bus. I2C_STAT1_I2CBSY is cleared by the controller as soon as the STOP condition is sent. Unfortunately this does not trigger an interrupt, so polling is the only way.

gschorcht · 2023-02-13T19:30:36Z

cpu/gd32v/periph/i2c.c

+
+static void _wait_for_irq(i2c_t dev)
+{
+#if defined(MODULE_ZTIMER_USEC)


Timeouts are realized either

by means of ztimer_usec timers, if the ztimer_usec module is already activated,

by ztimer_msec timer if the ztimer_msec module is already activated, or

not at all.
The driver itself does not pull a timer module by itself.

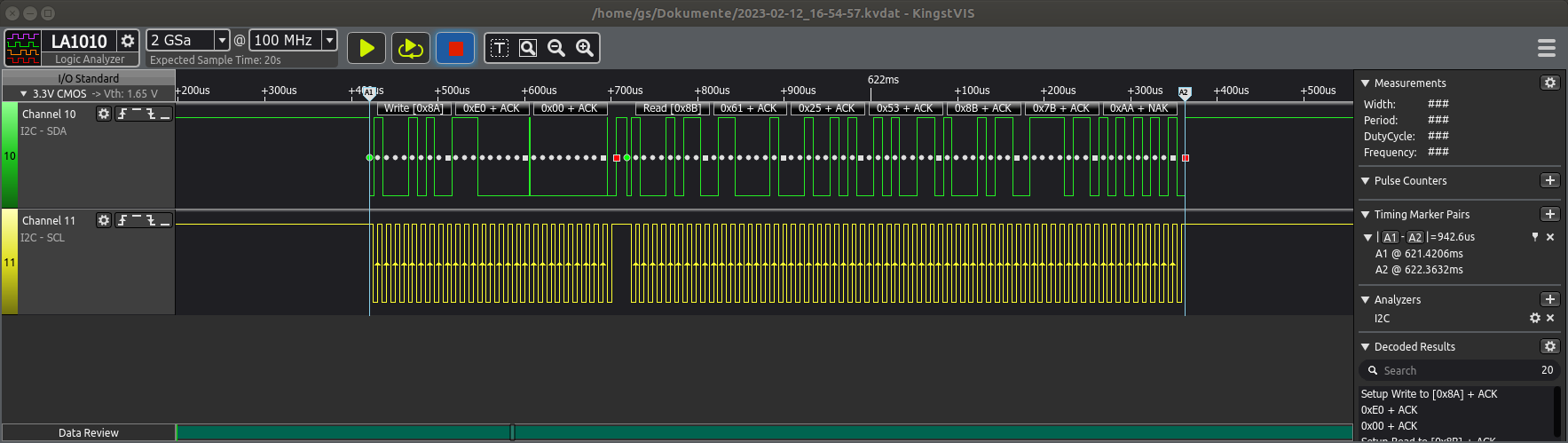

However, the use of ztimer_msec seems to make no sense at all, since it uses the RTC, for which a write operation to an RTC register requires at least 3 RTC clock cycles (i.e. about 91 us). This means that setting and removing the timer again takes about 180 us in total, which is about twice the duration for sending/receiving a byte at 100 kHz clock. As a result, there seems to be an idle phase between the sent and received bytes, which is about the duration of a sent or received byte and thus reduces the speed of the I2C transmission to about half, see the image below.

Even worse, during this time (the entire 180 us) the MCU is constantly polling the RTC's status register to determine when the write access for the timer set/unset is complete. So instead of letting the MCU sleep while waiting for an interrupt, the MCU is in a waiting state the whole time, which makes the interrupt-driven I2C driver completely absurd

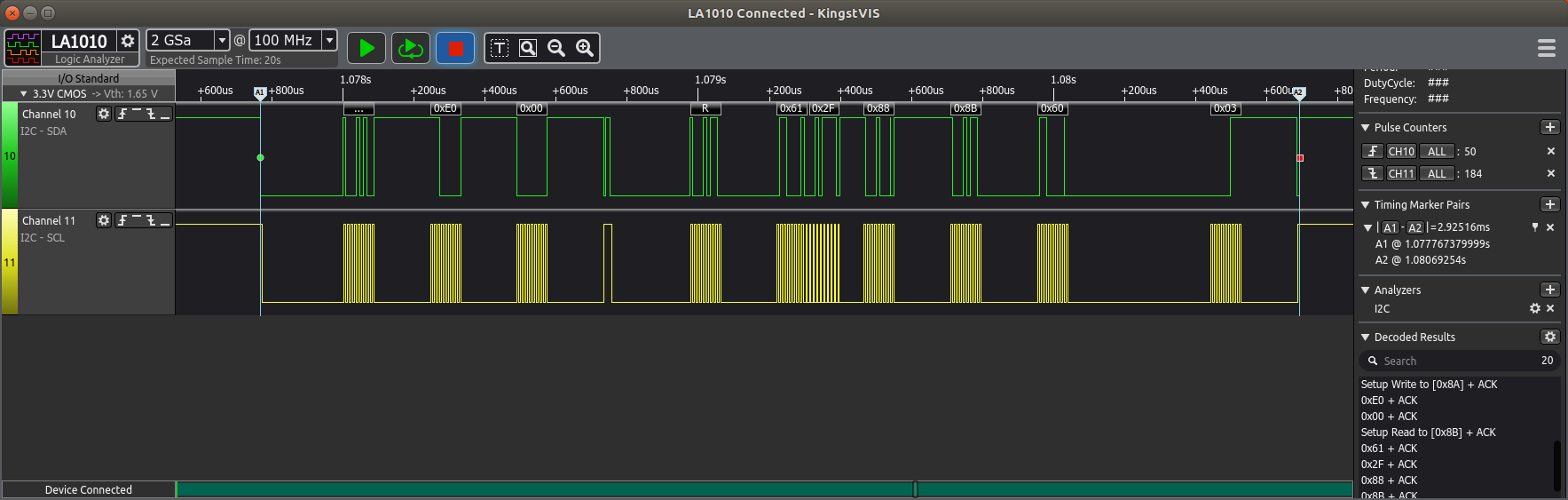

With timeout handling using ztimer_usec it looks as it should:

So the question is whether we remove the timeout handling to avoid using ztimer_usec, or whether we enable ztimer_usec for the I2C driver. If we use timeout handling, it makes only sense with ztimer_usec.

I think ztimer_usec is fine.
There is no requirement to avoid it except for long-running timers. If you only need a short delay there is nothing wrong with ztimer_usec.

I understood it so that you added the ztimer_msec as a fallback for an application that would otherwise not use ztimer_usec, but I think this is rare.

I think ztimer_usec is fine.
There is no requirement to avoid it except for long-running timers. If you only need a short delay there is nothing wrong with ztimer_usec.

But doesn't this mean that the timer peripheral will run all the time even if I2C is not used and no timer is set, at least if the ztimer_timer_ondemand module is not used?

I didn't follow the discussion there tbh, but afaik the (long term) goal is that the timer should be only running if it has alarms scheduled or if it was acquired somehow to measure time.

Since we are not there yet (there is plenty of code that relies on the timer to be always running to measure time intervals) this is indeed the case, but your code should not bend over backwards to accommodate a temporary (let's hope so!) shortcoming of the ztimer implementation.

It already does the right thing by scheduling an alarm, so once we flip the switch (Is ztimer_timer_ondemand that switch?) it will just behave as it should and only enable the clock when needed.

benpicco

Please squash

benpicco · 2023-02-17T15:17:48Z

still needs squashing 😉

benpicco · 2023-02-17T16:34:46Z

bors merge

19027: sys/fmt: optimize scn_u32_dec scn_u32_hex r=benpicco a=kfessel ### Contribution description Improves the compilation result for `scn_u32_dec` `scn_u32_hex` especially on `cortex-m` reducing either stack usage and or code size. This makes use of unsigned int overflow (slightly less better without doing that `hexn`). See godbolt (original versions got an `o` attached, modified versions got `k`s) all functions are marked `_S_` defined to `static` by assigning the global at end the compiled function can be changed (`deco deck hexo hexk hexkk hexn`) this PR is `hexkk` and `deck` ### Testing procedure run unit-test/test-fmt ``` <RIOT>/tests/unittests$ make tests-fmt <RIOT>/tests/unittests$ make term ``` ### Issues/PRs references [godbolt](https://godbolt.org/z/MzT1zh4q1) 19256: pkg/tinyusb: add GD32VF103 support r=benpicco a=gschorcht ### Contribution description This PR provides the tinyUSB support for GD32VF103 and enables the `tinyusb_device` feature as well as `stdio_tinyusb_cdc_acm` for GD32VF103 boards. ### Testing procedure ``` BOARD=sipeeed-longan-nano make -C tests/shell flash term ``` should work ### Issues/PRs references 19269: cpu/gd32v/periph_i2c: interrupt based driver r=benpicco a=gschorcht ### Contribution description This PR provides an interrupt-driven version of the I2C low-level driver. The existing I2C low-level driver for GDVF103 uses a busy-waiting approach where the status register is continuously polled while waiting for a certain status when sending or receiving. The MCU is thus occupied the whole time during a send or receive operation. The driver provided with this PR uses an interrupt-driven approach. This is, while waiting for a certain status when sending or receiving, the calling thread is suspended and woken up by interrupts. Since the I2C controller allows to receive up to two bytes before the application has to react, receiving a single byte, two bytes or more than two bytes needs a different handling for correct receiption. This requires a tricky implementation which distinguish a number of different case. There the driver requires 860 byte more ROM and 8 byte more RAM. ### Testing procedure The driver should work with any I2C sensor/actuator. It was tested with - `tests/driver_bmp180` <details> ``` main(): This is RIOT! (Version: 2023.04-devel-355-g940c7-cpu/gd32v/periph_i2c_interrupt_driven) BMP180 test application +------------Initializing------------+ Initialization successful +------------Calibration------------+ AC1: 8448 AC2: -1208 AC3: -14907 AC4: 33310 AC5: 24774 AC6: 19213 B1: 6515 B2: 49 MB: -32768 MC: -11786 MD: 2958 +--------Starting Measurements--------+ Temperature [°C]: 22.0 Pressure [hPa]: 1006.49 Pressure at see level [hPa]: 1025.55 Altitude [m]: 157 +-------------------------------------+ Temperature [°C]: 22.0 Pressure [hPa]: 1006.56 Pressure at see level [hPa]: 1025.58 Altitude [m]: 157 +-------------------------------------+ ``` </details> - `tests/driver_ccs811` <details> ``` main(): This is RIOT! (Version: 2023.04-devel-355-g940c7-cpu/gd32v/periph_i2c_interrupt_driven) CCS811 test application +------------Initializing------------+ +--------Starting Measurements--------+ TVOC [ppb]: 0 eCO2 [ppm]: 0 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 0 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 0 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 400 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 400 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 400 +-------------------------------------+ TVOC [ppb]: 7 eCO2 [ppm]: 446 +-------------------------------------+ TVOC [ppb]: 7 eCO2 [ppm]: 446 +-------------------------------------+ TVOC [ppb]: 7 eCO2 [ppm]: 446 +-------------------------------------+ TVOC [ppb]: 7 eCO2 [ppm]: 446 +-------------------------------------+ ``` </details> - `tests/driver_sht3x` <details> ``` main(): This is RIOT! (Version: 2023.04-devel-355-g940c7-cpu/gd32v/periph_i2c_interrupt_driven) SHT3X test application +------------Initializing------------+ Initialization successful +--------Starting Measurements--------+ Temperature [°C]: 21.46 Relative Humidity [%]: 54.50 +-------------------------------------+ Temperature [°C]: 21.47 Relative Humidity [%]: 54.53 +-------------------------------------+ Temperature [°C]: 21.46 Relative Humidity [%]: 54.48 +-------------------------------------+ Temperature [°C]: 21.46 Relative Humidity [%]: 54.47 +-------------------------------------+ ``` </details> - `tests/driver_l3gxxxx` <details> ``` main(): This is RIOT! (Version: 2023.04-devel-375-g75547-cpu/gd32v/periph_i2c_interrupt_driven) L3GXXXX gyroscope driver test application Initializing L3GXXXX sensor [OK] gyro [dps] x: +0, y: -1, z: -2 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: -1, y: +0, z: +4 gyro [dps] x: +0, y: +0, z: -21 gyro [dps] x: +0, y: +0, z: +6 gyro [dps] x: -43, y: +0, z: -13 gyro [dps] x: -21, y: -2, z: +0 gyro [dps] x: +0, y: +1, z: +3 gyro [dps] x: +25, y: +0, z: +0 ``` </details> - `tests/driver_hd44780` with `pcf8574a` I2C interface ### Issues/PRs references 19286: cpu/esp_common: use generic WIFI_SSID/WIFI_PASS defines r=benpicco a=benpicco Co-authored-by: Karl Fessel <[email protected]> Co-authored-by: Gunar Schorcht <[email protected]> Co-authored-by: Benjamin Valentin <[email protected]>

bors · 2023-02-17T16:39:32Z

Build failed (retrying...):

Murdock

19269: cpu/gd32v/periph_i2c: interrupt based driver r=benpicco a=gschorcht ### Contribution description This PR provides an interrupt-driven version of the I2C low-level driver. The existing I2C low-level driver for GDVF103 uses a busy-waiting approach where the status register is continuously polled while waiting for a certain status when sending or receiving. The MCU is thus occupied the whole time during a send or receive operation. The driver provided with this PR uses an interrupt-driven approach. This is, while waiting for a certain status when sending or receiving, the calling thread is suspended and woken up by interrupts. Since the I2C controller allows to receive up to two bytes before the application has to react, receiving a single byte, two bytes or more than two bytes needs a different handling for correct receiption. This requires a tricky implementation which distinguish a number of different case. There the driver requires 860 byte more ROM and 8 byte more RAM. ### Testing procedure The driver should work with any I2C sensor/actuator. It was tested with - `tests/driver_bmp180` <details> ``` main(): This is RIOT! (Version: 2023.04-devel-355-g940c7-cpu/gd32v/periph_i2c_interrupt_driven) BMP180 test application +------------Initializing------------+ Initialization successful +------------Calibration------------+ AC1: 8448 AC2: -1208 AC3: -14907 AC4: 33310 AC5: 24774 AC6: 19213 B1: 6515 B2: 49 MB: -32768 MC: -11786 MD: 2958 +--------Starting Measurements--------+ Temperature [°C]: 22.0 Pressure [hPa]: 1006.49 Pressure at see level [hPa]: 1025.55 Altitude [m]: 157 +-------------------------------------+ Temperature [°C]: 22.0 Pressure [hPa]: 1006.56 Pressure at see level [hPa]: 1025.58 Altitude [m]: 157 +-------------------------------------+ ``` </details> - `tests/driver_ccs811` <details> ``` main(): This is RIOT! (Version: 2023.04-devel-355-g940c7-cpu/gd32v/periph_i2c_interrupt_driven) CCS811 test application +------------Initializing------------+ +--------Starting Measurements--------+ TVOC [ppb]: 0 eCO2 [ppm]: 0 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 0 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 0 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 400 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 400 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 400 +-------------------------------------+ TVOC [ppb]: 7 eCO2 [ppm]: 446 +-------------------------------------+ TVOC [ppb]: 7 eCO2 [ppm]: 446 +-------------------------------------+ TVOC [ppb]: 7 eCO2 [ppm]: 446 +-------------------------------------+ TVOC [ppb]: 7 eCO2 [ppm]: 446 +-------------------------------------+ ``` </details> - `tests/driver_sht3x` <details> ``` main(): This is RIOT! (Version: 2023.04-devel-355-g940c7-cpu/gd32v/periph_i2c_interrupt_driven) SHT3X test application +------------Initializing------------+ Initialization successful +--------Starting Measurements--------+ Temperature [°C]: 21.46 Relative Humidity [%]: 54.50 +-------------------------------------+ Temperature [°C]: 21.47 Relative Humidity [%]: 54.53 +-------------------------------------+ Temperature [°C]: 21.46 Relative Humidity [%]: 54.48 +-------------------------------------+ Temperature [°C]: 21.46 Relative Humidity [%]: 54.47 +-------------------------------------+ ``` </details> - `tests/driver_l3gxxxx` <details> ``` main(): This is RIOT! (Version: 2023.04-devel-375-g75547-cpu/gd32v/periph_i2c_interrupt_driven) L3GXXXX gyroscope driver test application Initializing L3GXXXX sensor [OK] gyro [dps] x: +0, y: -1, z: -2 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: -1, y: +0, z: +4 gyro [dps] x: +0, y: +0, z: -21 gyro [dps] x: +0, y: +0, z: +6 gyro [dps] x: -43, y: +0, z: -13 gyro [dps] x: -21, y: -2, z: +0 gyro [dps] x: +0, y: +1, z: +3 gyro [dps] x: +25, y: +0, z: +0 ``` </details> - `tests/driver_hd44780` with `pcf8574a` I2C interface ### Issues/PRs references 19286: cpu/esp_common: use generic WIFI_SSID/WIFI_PASS defines r=benpicco a=benpicco Co-authored-by: Gunar Schorcht <[email protected]> Co-authored-by: Benjamin Valentin <[email protected]>

bors · 2023-02-17T16:44:21Z

This PR was included in a batch that was canceled, it will be automatically retried

benpicco · 2023-02-17T16:44:26Z

bors cancel
bors merge

bors · 2023-02-17T16:44:28Z

Canceled.

benpicco · 2023-02-17T16:46:17Z

bors merge

bors · 2023-02-17T16:46:19Z

Already running a review

19027: sys/fmt: optimize scn_u32_dec scn_u32_hex r=benpicco a=kfessel ### Contribution description Improves the compilation result for `scn_u32_dec` `scn_u32_hex` especially on `cortex-m` reducing either stack usage and or code size. This makes use of unsigned int overflow (slightly less better without doing that `hexn`). See godbolt (original versions got an `o` attached, modified versions got `k`s) all functions are marked `_S_` defined to `static` by assigning the global at end the compiled function can be changed (`deco deck hexo hexk hexkk hexn`) this PR is `hexkk` and `deck` ### Testing procedure run unit-test/test-fmt ``` <RIOT>/tests/unittests$ make tests-fmt <RIOT>/tests/unittests$ make term ``` ### Issues/PRs references [godbolt](https://godbolt.org/z/MzT1zh4q1) 19269: cpu/gd32v/periph_i2c: interrupt based driver r=benpicco a=gschorcht ### Contribution description This PR provides an interrupt-driven version of the I2C low-level driver. The existing I2C low-level driver for GDVF103 uses a busy-waiting approach where the status register is continuously polled while waiting for a certain status when sending or receiving. The MCU is thus occupied the whole time during a send or receive operation. The driver provided with this PR uses an interrupt-driven approach. This is, while waiting for a certain status when sending or receiving, the calling thread is suspended and woken up by interrupts. Since the I2C controller allows to receive up to two bytes before the application has to react, receiving a single byte, two bytes or more than two bytes needs a different handling for correct receiption. This requires a tricky implementation which distinguish a number of different case. There the driver requires 860 byte more ROM and 8 byte more RAM. ### Testing procedure The driver should work with any I2C sensor/actuator. It was tested with - `tests/driver_bmp180` <details> ``` main(): This is RIOT! (Version: 2023.04-devel-355-g940c7-cpu/gd32v/periph_i2c_interrupt_driven) BMP180 test application +------------Initializing------------+ Initialization successful +------------Calibration------------+ AC1: 8448 AC2: -1208 AC3: -14907 AC4: 33310 AC5: 24774 AC6: 19213 B1: 6515 B2: 49 MB: -32768 MC: -11786 MD: 2958 +--------Starting Measurements--------+ Temperature [°C]: 22.0 Pressure [hPa]: 1006.49 Pressure at see level [hPa]: 1025.55 Altitude [m]: 157 +-------------------------------------+ Temperature [°C]: 22.0 Pressure [hPa]: 1006.56 Pressure at see level [hPa]: 1025.58 Altitude [m]: 157 +-------------------------------------+ ``` </details> - `tests/driver_ccs811` <details> ``` main(): This is RIOT! (Version: 2023.04-devel-355-g940c7-cpu/gd32v/periph_i2c_interrupt_driven) CCS811 test application +------------Initializing------------+ +--------Starting Measurements--------+ TVOC [ppb]: 0 eCO2 [ppm]: 0 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 0 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 0 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 400 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 400 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 400 +-------------------------------------+ TVOC [ppb]: 7 eCO2 [ppm]: 446 +-------------------------------------+ TVOC [ppb]: 7 eCO2 [ppm]: 446 +-------------------------------------+ TVOC [ppb]: 7 eCO2 [ppm]: 446 +-------------------------------------+ TVOC [ppb]: 7 eCO2 [ppm]: 446 +-------------------------------------+ ``` </details> - `tests/driver_sht3x` <details> ``` main(): This is RIOT! (Version: 2023.04-devel-355-g940c7-cpu/gd32v/periph_i2c_interrupt_driven) SHT3X test application +------------Initializing------------+ Initialization successful +--------Starting Measurements--------+ Temperature [°C]: 21.46 Relative Humidity [%]: 54.50 +-------------------------------------+ Temperature [°C]: 21.47 Relative Humidity [%]: 54.53 +-------------------------------------+ Temperature [°C]: 21.46 Relative Humidity [%]: 54.48 +-------------------------------------+ Temperature [°C]: 21.46 Relative Humidity [%]: 54.47 +-------------------------------------+ ``` </details> - `tests/driver_l3gxxxx` <details> ``` main(): This is RIOT! (Version: 2023.04-devel-375-g75547-cpu/gd32v/periph_i2c_interrupt_driven) L3GXXXX gyroscope driver test application Initializing L3GXXXX sensor [OK] gyro [dps] x: +0, y: -1, z: -2 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: -1, y: +0, z: +4 gyro [dps] x: +0, y: +0, z: -21 gyro [dps] x: +0, y: +0, z: +6 gyro [dps] x: -43, y: +0, z: -13 gyro [dps] x: -21, y: -2, z: +0 gyro [dps] x: +0, y: +1, z: +3 gyro [dps] x: +25, y: +0, z: +0 ``` </details> - `tests/driver_hd44780` with `pcf8574a` I2C interface ### Issues/PRs references 19284: boards: support for the LILYGO TTGO T8 ESP32-S2 board r=benpicco a=gschorcht ### Contribution description This PR provides the support for the LILYGO TTGO T8 ESP32-S2 board which has a OLED display (not yet supported) and a SD-Card slot on board. The board is equipped with a USB-C connector that connects either to a USB-to-UART bridge or to the USB-OTG/JTAG interface of the ESP32-S2 via some DIP switches. The PR includes a very small fix of printf format string in `tests/malloc`. I can split it off. ### Testing procedure t.b.d. ### Issues/PRs references 19286: cpu/esp_common: use generic WIFI_SSID/WIFI_PASS defines r=benpicco a=benpicco Co-authored-by: Karl Fessel <[email protected]> Co-authored-by: Gunar Schorcht <[email protected]> Co-authored-by: Benjamin Valentin <[email protected]>

bors · 2023-02-17T16:58:51Z

Build failed (retrying...):

Murdock

19027: sys/fmt: optimize scn_u32_dec scn_u32_hex r=benpicco a=kfessel ### Contribution description Improves the compilation result for `scn_u32_dec` `scn_u32_hex` especially on `cortex-m` reducing either stack usage and or code size. This makes use of unsigned int overflow (slightly less better without doing that `hexn`). See godbolt (original versions got an `o` attached, modified versions got `k`s) all functions are marked `_S_` defined to `static` by assigning the global at end the compiled function can be changed (`deco deck hexo hexk hexkk hexn`) this PR is `hexkk` and `deck` ### Testing procedure run unit-test/test-fmt ``` <RIOT>/tests/unittests$ make tests-fmt <RIOT>/tests/unittests$ make term ``` ### Issues/PRs references [godbolt](https://godbolt.org/z/MzT1zh4q1) 19269: cpu/gd32v/periph_i2c: interrupt based driver r=benpicco a=gschorcht ### Contribution description This PR provides an interrupt-driven version of the I2C low-level driver. The existing I2C low-level driver for GDVF103 uses a busy-waiting approach where the status register is continuously polled while waiting for a certain status when sending or receiving. The MCU is thus occupied the whole time during a send or receive operation. The driver provided with this PR uses an interrupt-driven approach. This is, while waiting for a certain status when sending or receiving, the calling thread is suspended and woken up by interrupts. Since the I2C controller allows to receive up to two bytes before the application has to react, receiving a single byte, two bytes or more than two bytes needs a different handling for correct receiption. This requires a tricky implementation which distinguish a number of different case. There the driver requires 860 byte more ROM and 8 byte more RAM. ### Testing procedure The driver should work with any I2C sensor/actuator. It was tested with - `tests/driver_bmp180` <details> ``` main(): This is RIOT! (Version: 2023.04-devel-355-g940c7-cpu/gd32v/periph_i2c_interrupt_driven) BMP180 test application +------------Initializing------------+ Initialization successful +------------Calibration------------+ AC1: 8448 AC2: -1208 AC3: -14907 AC4: 33310 AC5: 24774 AC6: 19213 B1: 6515 B2: 49 MB: -32768 MC: -11786 MD: 2958 +--------Starting Measurements--------+ Temperature [°C]: 22.0 Pressure [hPa]: 1006.49 Pressure at see level [hPa]: 1025.55 Altitude [m]: 157 +-------------------------------------+ Temperature [°C]: 22.0 Pressure [hPa]: 1006.56 Pressure at see level [hPa]: 1025.58 Altitude [m]: 157 +-------------------------------------+ ``` </details> - `tests/driver_ccs811` <details> ``` main(): This is RIOT! (Version: 2023.04-devel-355-g940c7-cpu/gd32v/periph_i2c_interrupt_driven) CCS811 test application +------------Initializing------------+ +--------Starting Measurements--------+ TVOC [ppb]: 0 eCO2 [ppm]: 0 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 0 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 0 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 400 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 400 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 400 +-------------------------------------+ TVOC [ppb]: 7 eCO2 [ppm]: 446 +-------------------------------------+ TVOC [ppb]: 7 eCO2 [ppm]: 446 +-------------------------------------+ TVOC [ppb]: 7 eCO2 [ppm]: 446 +-------------------------------------+ TVOC [ppb]: 7 eCO2 [ppm]: 446 +-------------------------------------+ ``` </details> - `tests/driver_sht3x` <details> ``` main(): This is RIOT! (Version: 2023.04-devel-355-g940c7-cpu/gd32v/periph_i2c_interrupt_driven) SHT3X test application +------------Initializing------------+ Initialization successful +--------Starting Measurements--------+ Temperature [°C]: 21.46 Relative Humidity [%]: 54.50 +-------------------------------------+ Temperature [°C]: 21.47 Relative Humidity [%]: 54.53 +-------------------------------------+ Temperature [°C]: 21.46 Relative Humidity [%]: 54.48 +-------------------------------------+ Temperature [°C]: 21.46 Relative Humidity [%]: 54.47 +-------------------------------------+ ``` </details> - `tests/driver_l3gxxxx` <details> ``` main(): This is RIOT! (Version: 2023.04-devel-375-g75547-cpu/gd32v/periph_i2c_interrupt_driven) L3GXXXX gyroscope driver test application Initializing L3GXXXX sensor [OK] gyro [dps] x: +0, y: -1, z: -2 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: -1, y: +0, z: +4 gyro [dps] x: +0, y: +0, z: -21 gyro [dps] x: +0, y: +0, z: +6 gyro [dps] x: -43, y: +0, z: -13 gyro [dps] x: -21, y: -2, z: +0 gyro [dps] x: +0, y: +1, z: +3 gyro [dps] x: +25, y: +0, z: +0 ``` </details> - `tests/driver_hd44780` with `pcf8574a` I2C interface ### Issues/PRs references Co-authored-by: Karl Fessel <[email protected]> Co-authored-by: Gunar Schorcht <[email protected]>

benpicco · 2023-02-17T17:00:33Z

Kconfig doesn't like the timer selection

bors cancel

bors · 2023-02-17T17:00:34Z

Canceled.

gschorcht · 2023-02-17T17:35:02Z

Kconfig doesn't like the timer selection

To be honest, dependency modelling is becoming more and more a nightmare in Kconfig. Why the hell do compiled modules differ for Kconfig if the ztimer_msec module is enabled in addition to ztimer_usec (used by the I2C driver) for any reason?

gschorcht · 2023-02-17T17:42:27Z

Kconfig doesn't like the timer selection

To be honest, dependency modelling is becoming more and more a nightmare in Kconfig. Why the hell do compiled modules differ for Kconfig if the ztimer_msec module is enabled in addition to ztimer_usec (used by the I2C driver) for any reason?

Huh, why do I have to select ZTIMER_USEC instead of MODULE_ZTIMER_USEC? The following seems to solve the issue.

diff --git a/cpu/gd32v/Kconfig b/cpu/gd32v/Kconfig
index e732c6eb85..43714dc786 100644
--- a/cpu/gd32v/Kconfig
+++ b/cpu/gd32v/Kconfig
@@ -30,7 +30,7 @@ config CPU_FAM_GD32V

     select MODULE_PERIPH_CLIC if TEST_KCONFIG
     select MODULE_PERIPH_WDT if MODULE_PERIPH_PM && HAS_PERIPH_WDT
-    select MODULE_ZTIMER_USEC if MODULE_PERIPH_I2C
+    select ZTIMER_USEC if MODULE_PERIPH_I2C
     select PACKAGE_NMSIS_SDK

 menu "GD32V configuration"

benpicco · 2023-02-17T17:43:49Z

I'm hoping that laze will turn into a viable replacement with a less painful migration path, but we'll see.

gschorcht · 2023-02-17T17:51:54Z

I'm hoping that laze will turn into a viable replacement with a less painful migration path, but we'll see.

Is it already decided to switch to laze? I guess it's just to replace the dependency modeling in Kconfig, but not Kconfig completely?

gschorcht · 2023-02-17T17:53:26Z

I sqashed it directly. Let's try again.

bors merge

benpicco · 2023-02-17T17:55:22Z

No, nothing is decided yet, I'm just equally frustrated with the Kconfig migration and look for a silver lining.
Dependency modeling seems to be the biggest pain point in our implementation of Kconfig

benpicco · 2023-02-17T17:56:16Z

I sqashed it directly. Let's try again.

You didn't push it yet though 😉

19027: sys/fmt: optimize scn_u32_dec scn_u32_hex r=benpicco a=kfessel ### Contribution description Improves the compilation result for `scn_u32_dec` `scn_u32_hex` especially on `cortex-m` reducing either stack usage and or code size. This makes use of unsigned int overflow (slightly less better without doing that `hexn`). See godbolt (original versions got an `o` attached, modified versions got `k`s) all functions are marked `_S_` defined to `static` by assigning the global at end the compiled function can be changed (`deco deck hexo hexk hexkk hexn`) this PR is `hexkk` and `deck` ### Testing procedure run unit-test/test-fmt ``` <RIOT>/tests/unittests$ make tests-fmt <RIOT>/tests/unittests$ make term ``` ### Issues/PRs references [godbolt](https://godbolt.org/z/MzT1zh4q1) 19269: cpu/gd32v/periph_i2c: interrupt based driver r=gschorcht a=gschorcht ### Contribution description This PR provides an interrupt-driven version of the I2C low-level driver. The existing I2C low-level driver for GDVF103 uses a busy-waiting approach where the status register is continuously polled while waiting for a certain status when sending or receiving. The MCU is thus occupied the whole time during a send or receive operation. The driver provided with this PR uses an interrupt-driven approach. This is, while waiting for a certain status when sending or receiving, the calling thread is suspended and woken up by interrupts. Since the I2C controller allows to receive up to two bytes before the application has to react, receiving a single byte, two bytes or more than two bytes needs a different handling for correct receiption. This requires a tricky implementation which distinguish a number of different case. There the driver requires 860 byte more ROM and 8 byte more RAM. ### Testing procedure The driver should work with any I2C sensor/actuator. It was tested with - `tests/driver_bmp180` <details> ``` main(): This is RIOT! (Version: 2023.04-devel-355-g940c7-cpu/gd32v/periph_i2c_interrupt_driven) BMP180 test application +------------Initializing------------+ Initialization successful +------------Calibration------------+ AC1: 8448 AC2: -1208 AC3: -14907 AC4: 33310 AC5: 24774 AC6: 19213 B1: 6515 B2: 49 MB: -32768 MC: -11786 MD: 2958 +--------Starting Measurements--------+ Temperature [°C]: 22.0 Pressure [hPa]: 1006.49 Pressure at see level [hPa]: 1025.55 Altitude [m]: 157 +-------------------------------------+ Temperature [°C]: 22.0 Pressure [hPa]: 1006.56 Pressure at see level [hPa]: 1025.58 Altitude [m]: 157 +-------------------------------------+ ``` </details> - `tests/driver_ccs811` <details> ``` main(): This is RIOT! (Version: 2023.04-devel-355-g940c7-cpu/gd32v/periph_i2c_interrupt_driven) CCS811 test application +------------Initializing------------+ +--------Starting Measurements--------+ TVOC [ppb]: 0 eCO2 [ppm]: 0 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 0 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 0 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 400 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 400 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 400 +-------------------------------------+ TVOC [ppb]: 7 eCO2 [ppm]: 446 +-------------------------------------+ TVOC [ppb]: 7 eCO2 [ppm]: 446 +-------------------------------------+ TVOC [ppb]: 7 eCO2 [ppm]: 446 +-------------------------------------+ TVOC [ppb]: 7 eCO2 [ppm]: 446 +-------------------------------------+ ``` </details> - `tests/driver_sht3x` <details> ``` main(): This is RIOT! (Version: 2023.04-devel-355-g940c7-cpu/gd32v/periph_i2c_interrupt_driven) SHT3X test application +------------Initializing------------+ Initialization successful +--------Starting Measurements--------+ Temperature [°C]: 21.46 Relative Humidity [%]: 54.50 +-------------------------------------+ Temperature [°C]: 21.47 Relative Humidity [%]: 54.53 +-------------------------------------+ Temperature [°C]: 21.46 Relative Humidity [%]: 54.48 +-------------------------------------+ Temperature [°C]: 21.46 Relative Humidity [%]: 54.47 +-------------------------------------+ ``` </details> - `tests/driver_l3gxxxx` <details> ``` main(): This is RIOT! (Version: 2023.04-devel-375-g75547-cpu/gd32v/periph_i2c_interrupt_driven) L3GXXXX gyroscope driver test application Initializing L3GXXXX sensor [OK] gyro [dps] x: +0, y: -1, z: -2 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: -1, y: +0, z: +4 gyro [dps] x: +0, y: +0, z: -21 gyro [dps] x: +0, y: +0, z: +6 gyro [dps] x: -43, y: +0, z: -13 gyro [dps] x: -21, y: -2, z: +0 gyro [dps] x: +0, y: +1, z: +3 gyro [dps] x: +25, y: +0, z: +0 ``` </details> - `tests/driver_hd44780` with `pcf8574a` I2C interface ### Issues/PRs references Co-authored-by: Karl Fessel <[email protected]> Co-authored-by: Gunar Schorcht <[email protected]>

bors · 2023-02-17T20:09:42Z

Build failed (retrying...):

Murdock

19269: cpu/gd32v/periph_i2c: interrupt based driver r=gschorcht a=gschorcht ### Contribution description This PR provides an interrupt-driven version of the I2C low-level driver. The existing I2C low-level driver for GDVF103 uses a busy-waiting approach where the status register is continuously polled while waiting for a certain status when sending or receiving. The MCU is thus occupied the whole time during a send or receive operation. The driver provided with this PR uses an interrupt-driven approach. This is, while waiting for a certain status when sending or receiving, the calling thread is suspended and woken up by interrupts. Since the I2C controller allows to receive up to two bytes before the application has to react, receiving a single byte, two bytes or more than two bytes needs a different handling for correct receiption. This requires a tricky implementation which distinguish a number of different case. There the driver requires 860 byte more ROM and 8 byte more RAM. ### Testing procedure The driver should work with any I2C sensor/actuator. It was tested with - `tests/driver_bmp180` <details> ``` main(): This is RIOT! (Version: 2023.04-devel-355-g940c7-cpu/gd32v/periph_i2c_interrupt_driven) BMP180 test application +------------Initializing------------+ Initialization successful +------------Calibration------------+ AC1: 8448 AC2: -1208 AC3: -14907 AC4: 33310 AC5: 24774 AC6: 19213 B1: 6515 B2: 49 MB: -32768 MC: -11786 MD: 2958 +--------Starting Measurements--------+ Temperature [°C]: 22.0 Pressure [hPa]: 1006.49 Pressure at see level [hPa]: 1025.55 Altitude [m]: 157 +-------------------------------------+ Temperature [°C]: 22.0 Pressure [hPa]: 1006.56 Pressure at see level [hPa]: 1025.58 Altitude [m]: 157 +-------------------------------------+ ``` </details> - `tests/driver_ccs811` <details> ``` main(): This is RIOT! (Version: 2023.04-devel-355-g940c7-cpu/gd32v/periph_i2c_interrupt_driven) CCS811 test application +------------Initializing------------+ +--------Starting Measurements--------+ TVOC [ppb]: 0 eCO2 [ppm]: 0 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 0 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 0 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 400 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 400 +-------------------------------------+ TVOC [ppb]: 0 eCO2 [ppm]: 400 +-------------------------------------+ TVOC [ppb]: 7 eCO2 [ppm]: 446 +-------------------------------------+ TVOC [ppb]: 7 eCO2 [ppm]: 446 +-------------------------------------+ TVOC [ppb]: 7 eCO2 [ppm]: 446 +-------------------------------------+ TVOC [ppb]: 7 eCO2 [ppm]: 446 +-------------------------------------+ ``` </details> - `tests/driver_sht3x` <details> ``` main(): This is RIOT! (Version: 2023.04-devel-355-g940c7-cpu/gd32v/periph_i2c_interrupt_driven) SHT3X test application +------------Initializing------------+ Initialization successful +--------Starting Measurements--------+ Temperature [°C]: 21.46 Relative Humidity [%]: 54.50 +-------------------------------------+ Temperature [°C]: 21.47 Relative Humidity [%]: 54.53 +-------------------------------------+ Temperature [°C]: 21.46 Relative Humidity [%]: 54.48 +-------------------------------------+ Temperature [°C]: 21.46 Relative Humidity [%]: 54.47 +-------------------------------------+ ``` </details> - `tests/driver_l3gxxxx` <details> ``` main(): This is RIOT! (Version: 2023.04-devel-375-g75547-cpu/gd32v/periph_i2c_interrupt_driven) L3GXXXX gyroscope driver test application Initializing L3GXXXX sensor [OK] gyro [dps] x: +0, y: -1, z: -2 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: +0, y: +0, z: +0 gyro [dps] x: -1, y: +0, z: +4 gyro [dps] x: +0, y: +0, z: -21 gyro [dps] x: +0, y: +0, z: +6 gyro [dps] x: -43, y: +0, z: -13 gyro [dps] x: -21, y: -2, z: +0 gyro [dps] x: +0, y: +1, z: +3 gyro [dps] x: +25, y: +0, z: +0 ``` </details> - `tests/driver_hd44780` with `pcf8574a` I2C interface ### Issues/PRs references Co-authored-by: Gunar Schorcht <[email protected]>

bors · 2023-02-17T23:23:57Z

Build failed:

Murdock

gschorcht · 2023-02-18T06:40:55Z

I sqashed it directly. Let's try again.

You didn't push it yet though wink

Indeed.

gschorcht · 2023-02-18T07:54:44Z

bors merge

bors · 2023-02-18T10:55:59Z

Build succeeded:

gschorcht · 2023-02-18T11:11:11Z

@benpicco Thanks for reviewing.
