gnrc_lorawan: encode LoRaWAN port in netif header by jia200x · Pull Request #16080 · RIOT-OS/RIOT

jia200x · 2021-02-23T17:40:32Z

Contribution description

This PR encodes the LoRaWAN port in a GNRC netif header.
The benefit of doing this is that we can reuse txtsnd and similar commands. From now on it's possible to use GNRC LoRaWAN (almost) out of the box in any GNRC application (e.g examples/default).

This PR also deprecates NETOPT_LORAWAN_TX_PORT and introduces a CONFIG_GNRC_NETIF_LORAWAN_NETIF_HDR to enable this functionality (and don't abruptly change the API of users).

Testing procedure

The following things should be tested:

Check that examples/gnrc_lorawan works out of the box. The send command was replaced by txtsnd
Try sending frames in port 0. Frame shouldn't be sent.
Try GNRC LoRaWAN with examples/default:

CFLAGS=-DCONFIG_GNRC_NETIF_LORAWAN_NETIF_HDR USEMODULE=gnrc_lorawan BOARD=b-l072z-lrwan1 make flash term

Check that's possible to communicate.

Issues/PRs references

None so far

sys/net/gnrc/netif/lorawan/gnrc_netif_lorawan.c

examples/gnrc_lorawan/README.md

jia200x · 2021-06-09T14:45:41Z

rebased!

MrKevinWeiss · 2021-06-14T14:45:18Z

I was able to run on my board with credentials from @jia200x:

CFLAGS=-DCONFIG_GNRC_NETIF_LORAWAN_NETIF_HDR USEMODULE='gnrc gnrc_netdev_default auto_init_gnrc_netif gnrc_txtsnd gnrc_pktdump gnrc_lorawan sx1272' DRIVER=sx1272 BOARD=nucleo-l452re make flash term -C examples/default/

2021-06-14 16:29:27,977 # ifconfig 3 up
txtsnd 05 whateverIwant
2021-06-14 16:29:37,458 # txtsnd 05 whateverIwant
2021-06-14 16:29:37,462 # usage: txtsnd <if> [<L2 addr>|bcast] <data>
txtsnd 3 01 whateverIwant
2021-06-14 16:29:46,082 # txtsnd 3 01 whateverIwant
txtsnd 3 02 whateverIwant
2021-06-14 16:30:03,595 # txtsnd 3 02 whateverIwant
> 2021-06-14 16:30:07,415 # PKTDUMP: data received:
2021-06-14 16:30:07,419 # ~~ SNIP  0 - size:   4 byte, type: NETTYPE_UNDEF (0)
2021-06-14 16:30:07,421 # 00000000  DE  AD  BE  ED
2021-06-14 16:30:07,426 # ~~ SNIP  1 - size:   9 byte, type: NETTYPE_NETIF (-1)
2021-06-14 16:30:07,429 # if_pid: 3  rssi: -32768  lqi: 0
2021-06-14 16:30:07,429 # flags: 0x0
2021-06-14 16:30:07,431 # src_l2addr: (nil)
2021-06-14 16:30:07,433 # dst_l2addr: 02
2021-06-14 16:30:07,436 # ~~ PKT    -  2 snips, total size:  13 byte
> ifconfig
2021-06-14 16:43:07,631 # ifconfig
2021-06-14 16:43:07,641 # Iface  3  HWaddr: 26:01:5C:73  Frequency: 869524963Hz  RSSI: 117  BW: 125kHz  SF: 9  CR: 4/5  Link: up
2021-06-14 16:43:07,648 #            TX-Power: 14dBm  State: SLEEP  Demod margin.: 0  Num gateways.: 0
2021-06-14 16:43:07,650 #           IQ_INVERT
2021-06-14 16:43:07,653 #           RX_SINGLE  OTAA  L2-PDU:255

Note, the BOARD_PROVIDES_NETIF cannot be overridden so I had to manually add all the modules since I have using a shield on a generic nucleo.

MrKevinWeiss · 2021-06-15T08:16:23Z

I also went through the documentation and played around with it

USEMODULE=sx1272 DRIVER=sx1272 BOARD=nucleo-l452re make flash term -C examples/gnrc_lorawan/

device

weiss@mobiweiss:~/wd/RIOT$ USEMODULE=sx1272 DRIVER=sx1272 BOARD=nucleo-l452re make flash term -C examples/gnrc_lorawan/
make: Entering directory '/home/weiss/wd/RIOT/examples/gnrc_lorawan'
Building application "gnrc_lorawan" for "nucleo-l452re" with MCU "stm32".

"make" -C /home/weiss/wd/RIOT/boards/nucleo-l452re
"make" -C /home/weiss/wd/RIOT/boards/common/nucleo
"make" -C /home/weiss/wd/RIOT/core
"make" -C /home/weiss/wd/RIOT/cpu/stm32
"make" -C /home/weiss/wd/RIOT/cpu/cortexm_common
"make" -C /home/weiss/wd/RIOT/cpu/cortexm_common/periph
"make" -C /home/weiss/wd/RIOT/cpu/stm32/periph
"make" -C /home/weiss/wd/RIOT/cpu/stm32/stmclk
"make" -C /home/weiss/wd/RIOT/cpu/stm32/vectors
"make" -C /home/weiss/wd/RIOT/drivers
"make" -C /home/weiss/wd/RIOT/drivers/netdev
"make" -C /home/weiss/wd/RIOT/drivers/periph_common
"make" -C /home/weiss/wd/RIOT/drivers/sx127x
"make" -C /home/weiss/wd/RIOT/sys
"make" -C /home/weiss/wd/RIOT/sys/auto_init
"make" -C /home/weiss/wd/RIOT/sys/crypto
"make" -C /home/weiss/wd/RIOT/sys/div
"make" -C /home/weiss/wd/RIOT/sys/fmt
"make" -C /home/weiss/wd/RIOT/sys/frac
"make" -C /home/weiss/wd/RIOT/sys/hashes
"make" -C /home/weiss/wd/RIOT/sys/iolist
"make" -C /home/weiss/wd/RIOT/sys/isrpipe
"make" -C /home/weiss/wd/RIOT/sys/luid
"make" -C /home/weiss/wd/RIOT/sys/malloc_thread_safe
"make" -C /home/weiss/wd/RIOT/sys/net/gnrc
"make" -C /home/weiss/wd/RIOT/sys/net/gnrc/link_layer/lorawan
"make" -C /home/weiss/wd/RIOT/sys/net/gnrc/netapi
"make" -C /home/weiss/wd/RIOT/sys/net/gnrc/netif
"make" -C /home/weiss/wd/RIOT/sys/net/gnrc/netif/hdr
"make" -C /home/weiss/wd/RIOT/sys/net/gnrc/netif/init_devs
"make" -C /home/weiss/wd/RIOT/sys/net/gnrc/netif/lorawan
"make" -C /home/weiss/wd/RIOT/sys/net/gnrc/netreg
"make" -C /home/weiss/wd/RIOT/sys/net/gnrc/pkt
"make" -C /home/weiss/wd/RIOT/sys/net/gnrc/pktbuf
"make" -C /home/weiss/wd/RIOT/sys/net/gnrc/pktbuf_static
"make" -C /home/weiss/wd/RIOT/sys/net/gnrc/pktdump
"make" -C /home/weiss/wd/RIOT/sys/net/link_layer/eui_provider
"make" -C /home/weiss/wd/RIOT/sys/net/link_layer/l2util
"make" -C /home/weiss/wd/RIOT/sys/net/netif
"make" -C /home/weiss/wd/RIOT/sys/newlib_syscalls_default
"make" -C /home/weiss/wd/RIOT/sys/od
"make" -C /home/weiss/wd/RIOT/sys/pm_layered
"make" -C /home/weiss/wd/RIOT/sys/random
"make" -C /home/weiss/wd/RIOT/sys/random/tinymt32
"make" -C /home/weiss/wd/RIOT/sys/shell
"make" -C /home/weiss/wd/RIOT/sys/shell/commands
"make" -C /home/weiss/wd/RIOT/sys/stdio_uart
"make" -C /home/weiss/wd/RIOT/sys/tsrb
"make" -C /home/weiss/wd/RIOT/sys/xtimer
"make" -C /home/weiss/wd/RIOT/sys/ztimer
   text	   data	    bss	    dec	    hex	filename
  54144	    196	   6472	  60812	   ed8c	/home/weiss/wd/RIOT/examples/gnrc_lorawan/bin/nucleo-l452re/gnrc_lorawan.elf
/home/weiss/wd/RIOT/dist/tools/openocd/openocd.sh flash /home/weiss/wd/RIOT/examples/gnrc_lorawan/bin/nucleo-l452re/gnrc_lorawan.elf
### Flashing Target ###
Open On-Chip Debugger 0.11.0+dev-00035-g8d6f7c922-dirty (2021-03-16-15:33)
Licensed under GNU GPL v2
For bug reports, read
	http://openocd.org/doc/doxygen/bugs.html
hla_swd
Info : The selected transport took over low-level target control. The results might differ compared to plain JTAG/SWD
Info : DEPRECATED target event trace-config
srst_only separate srst_nogate srst_open_drain connect_assert_srst

Info : clock speed 500 kHz
Info : STLINK V2J29M18 (API v2) VID:PID 0483:374B
Info : Target voltage: 3.247800
Info : stm32l4x.cpu: hardware has 6 breakpoints, 4 watchpoints
Info : starting gdb server for stm32l4x.cpu on 0
Info : Listening on port 40869 for gdb connections
    TargetName         Type       Endian TapName            State
--  ------------------ ---------- ------ ------------------ ------------
 0* stm32l4x.cpu       hla_target little stm32l4x.cpu       reset

Info : Unable to match requested speed 500 kHz, using 480 kHz
Info : Unable to match requested speed 500 kHz, using 480 kHz
target halted due to debug-request, current mode: Thread
xPSR: 0x01000000 pc: 0x08000c50 msp: 0x20000200
Info : device idcode = 0x20016462 (STM32L45/L46xx - Rev Y : 0x2001)
Info : flash size = 512kbytes
Info : flash mode : single-bank
Info : Padding image section 1 at 0x0800d444 with 4 bytes (bank write end alignment)
Warn : Adding extra erase range, 0x0800d448 .. 0x0800d7ff
auto erase enabled
wrote 54344 bytes from file /home/weiss/wd/RIOT/examples/gnrc_lorawan/bin/nucleo-l452re/gnrc_lorawan.elf in 2.447983s (21.679 KiB/s)

verified 54340 bytes in 1.679086s (31.604 KiB/s)

Info : Unable to match requested speed 500 kHz, using 480 kHz
Info : Unable to match requested speed 500 kHz, using 480 kHz
shutdown command invoked
Done flashing
/home/weiss/wd/RIOT/dist/tools/pyterm/pyterm -p "/dev/ttyACM0" -b "115200"
Twisted not available, please install it if you want to use pyterm's JSON capabilities
2021-06-15 10:04:59,602 # Connect to serial port /dev/ttyACM0
Welcome to pyterm!
Type '/exit' to exit.
ifconfig 3 set deveui ****
2021-06-15 10:05:08,276 # ifconfig 3 set deveui ****
2021-06-15 10:05:08,282 # success: set long address on interface 3 to ****
> ifconf 3 set appeui ****
2021-06-15 10:05:12,332 # ifconfig 3 set appeui ****
2021-06-15 10:05:12,337 # success: set AppEUI on interface 3 to ****
> ifconf 3 set appkey ****
2021-06-15 10:05:15,134 # ifconfig 3 set appkey ****
2021-06-15 10:05:15,139 # success: set AppKey on interface 3 to *****
> ifconfig up
2021-06-15 10:05:17,129 # ifconfig 3 up
ifconfig
2021-06-15 10:05:39,385 # ifconfig
2021-06-15 10:05:39,394 # Iface  3  HWaddr: 26:01:4B:CA  Frequency: 869524963Hz  RSSI: 117  BW: 125kHz  SF: 12  CR: 4/5  Link: up
2021-06-15 10:05:39,401 #            TX-Power: 14dBm  State: SLEEP  Demod margin.: 0  Num gateways.: 0
2021-06-15 10:05:39,403 #           IQ_INVERT
2021-06-15 10:05:39,407 #           RX_SINGLE  OTAA  L2-PDU:255
2021-06-15 10:05:39,408 #
> txtsnd 3 7B "Hello RIOT!"
2021-06-15 10:06:00,146 # txtsnd 3 7B "Hello RIOT!"
> 2021-06-15 10:06:03,844 # PKTDUMP: data received:
2021-06-15 10:06:03,849 # ~~ SNIP  0 - size:  12 byte, type: NETTYPE_UNDEF (0)
2021-06-15 10:06:03,854 # 00000000  00  65  11  11  01  65  22  22  02  65  33  33
2021-06-15 10:06:03,859 # ~~ SNIP  1 - size:   9 byte, type: NETTYPE_NETIF (-1)
2021-06-15 10:06:03,861 # if_pid: 3  rssi: -32768  lqi: 0
2021-06-15 10:06:03,862 # flags: 0x0
2021-06-15 10:06:03,863 # src_l2addr: (nil)
2021-06-15 10:06:03,865 # dst_l2addr: 01
2021-06-15 10:06:03,869 # ~~ PKT    -  2 snips, total size:  21 byte
ifconfig 3 set dr 2
2021-06-15 10:06:09,770 # ifconfig 3 set dr 2
2021-06-15 10:06:09,774 # success: set datarate on interface 3 to 2
> ifconfig 3 link_check
2021-06-15 10:06:17,546 # ifconfig 3 link_check
2021-06-15 10:06:17,548 # success: set option
> txtsnd 3 01 "Join the RIOT!"
2021-06-15 10:06:28,251 # txtsnd 3 01 "Join the RIOT!"
> ifconfig 3 ack_req
2021-06-15 10:06:40,114 # ifconfig 3 ack_req
2021-06-15 10:06:40,116 # success: set option
> txtsnd 3 01 "My confirmable message"
2021-06-15 10:06:47,956 # txtsnd 3 01 "My confirmable message"
> txtsnd 3 01 "My confirmable message"
2021-06-15 10:07:01,212 # txtsnd 3 01 "My confirmable message"
> txtsnd 3 01 "My confirmable message"
2021-06-15 10:07:05,979 # txtsnd 3 01 "My confirmable message"
>

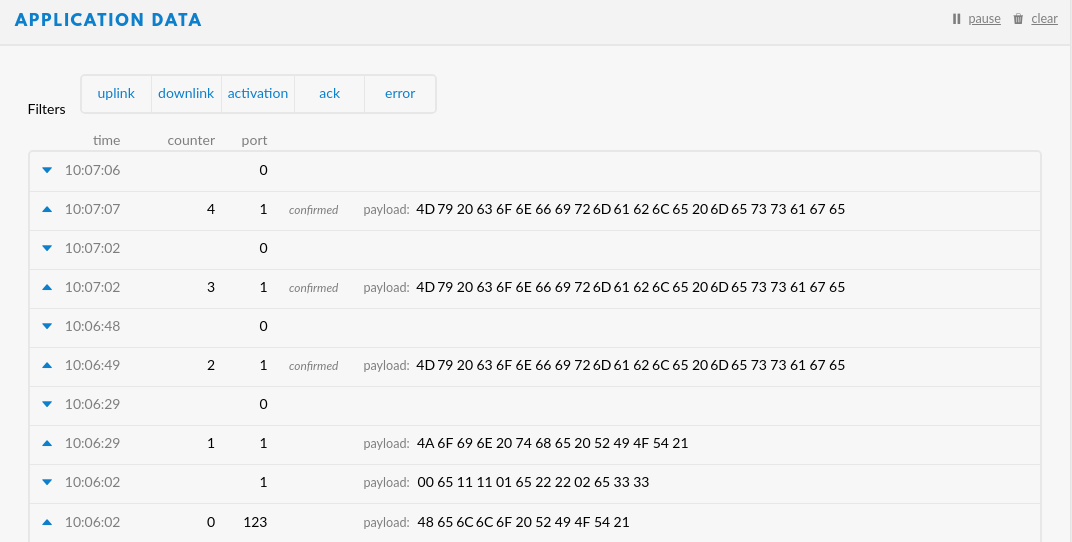

application interface

MrKevinWeiss · 2021-06-15T08:33:18Z

If you can just fix the cpp check issues, squash rebase all that fun stuff I think we should be OK.

My comments were addressed

jia200x · 2021-06-15T13:23:59Z

addressed and amended directly

MrKevinWeiss

Tested, nice cleanup, ACK.

sys/net/gnrc/netif/lorawan/gnrc_netif_lorawan.c

examples/gnrc_lorawan/Makefile

leandrolanzieri · 2021-06-16T11:33:51Z

Please squash @jia200x !

leandrolanzieri

ACK!

gnrc_lorawan: fix gnrc_pktbuf_release_error (introduced by #16080)

gnrc_lorawan: fix gnrc_pktbuf_release_error (introduced by #16080) [backport 2021.07]

jia200x added Type: enhancement The issue suggests enhanceable parts / The PR enhances parts of the codebase / documentation Process: API change Integration Process: PR contains or issue proposes an API change. Should be handled with care. Area: LoRa Area: LoRa radio support labels Feb 23, 2021

jia200x requested review from PeterKietzmann, cgundogan, haukepetersen, leandrolanzieri and miri64 as code owners February 23, 2021 17:40

jia200x requested a review from akshaim February 24, 2021 09:39

leandrolanzieri added the Process: deprecation Integration Process: The PR is deprecating a feature or API label Feb 26, 2021

leandrolanzieri added this to the Release 2021.04 milestone Feb 26, 2021

leandrolanzieri previously requested changes Feb 26, 2021

View reviewed changes

sys/net/gnrc/netif/lorawan/gnrc_netif_lorawan.c Show resolved Hide resolved

sys/net/gnrc/netif/lorawan/gnrc_netif_lorawan.c Outdated Show resolved Hide resolved

akshaim reviewed Mar 1, 2021

View reviewed changes

sys/net/gnrc/netif/lorawan/gnrc_netif_lorawan.c Show resolved Hide resolved

jia200x commented Mar 1, 2021

View reviewed changes

examples/gnrc_lorawan/README.md Outdated Show resolved Hide resolved

kaspar030 modified the milestones: Release 2021.04, Release 2021.07 Apr 23, 2021

jia200x force-pushed the pr/gnrc_lorawan_netif branch from 7b79279 to bc9804c Compare June 9, 2021 14:44

github-actions bot added Area: doc Area: Documentation Area: examples Area: Example Applications Area: Kconfig Area: Kconfig integration Area: network Area: Networking Area: sys Area: System labels Jun 9, 2021

jia200x force-pushed the pr/gnrc_lorawan_netif branch from bc9804c to 952f00c Compare June 15, 2021 13:23

net/netopt: deprecate NETOPT_LORAWAN_TX_PORT

7fd0364

MrKevinWeiss approved these changes Jun 16, 2021

View reviewed changes

leandrolanzieri reviewed Jun 16, 2021

View reviewed changes

sys/net/gnrc/netif/lorawan/gnrc_netif_lorawan.c Outdated Show resolved Hide resolved

leandrolanzieri reviewed Jun 16, 2021

View reviewed changes

examples/gnrc_lorawan/Makefile Outdated Show resolved Hide resolved

gnrc_netif_lorawan: add netif hdr support

7343c1c

jia200x force-pushed the pr/gnrc_lorawan_netif branch from 601652f to 40d641c Compare June 16, 2021 11:18

jia200x force-pushed the pr/gnrc_lorawan_netif branch from 7952f26 to 36d4f6a Compare June 16, 2021 11:42

github-actions bot added Area: doc Area: Documentation Area: sys Area: System labels Jun 16, 2021

jia200x added 2 commits June 16, 2021 14:50

examples/gnrc_lorawan: refactor

7cf5530

gnrc_lorawan: drop frame if port exceeds max app port

dca0b36

jia200x force-pushed the pr/gnrc_lorawan_netif branch from 36d4f6a to dca0b36 Compare June 16, 2021 12:50

jia200x added the CI: ready for build If set, CI server will compile all applications for all available boards for the labeled PR label Jun 16, 2021

leandrolanzieri approved these changes Jun 17, 2021

View reviewed changes

leandrolanzieri merged commit ae81b80 into RIOT-OS:master Jun 17, 2021

jia200x mentioned this pull request Jun 24, 2021

gnrc_netif/lorawan: drop netif header on send #16584

Merged

jia200x mentioned this pull request Jul 6, 2021

gnrc_lorawan: fix gnrc_pktbuf_release_error (introduced by #16080) #16617

Merged

jia200x added a commit that referenced this pull request Jul 7, 2021

Merge pull request #16617 from jia200x/pr/gnrc_lorawan_fix_release

ed16920

gnrc_lorawan: fix gnrc_pktbuf_release_error (introduced by #16080)

kaspar030 added a commit that referenced this pull request Jul 7, 2021

Merge pull request #16626 from MrKevinWeiss/pr/gnrc_lorawan_fix_release

efd80ad

gnrc_lorawan: fix gnrc_pktbuf_release_error (introduced by #16080) [backport 2021.07]

fjmolinas mentioned this pull request Oct 3, 2021

11-lorawan: add tasks 1-4 RIOT-OS/Release-Specs#218

Merged

jia200x mentioned this pull request Oct 5, 2021

11-lorawan: fix old command call RIOT-OS/Release-Specs#236

Closed

This was referenced Apr 3, 2024

gnrc_netif: remove deprecated CONFIG_GNRC_NETIF_LORAWAN_NETIF_HDR #20515

Merged

gnrc_lorawan: Remove deprecated CONFIG_GNRC_NETIF_LORAWAN_NETIF_HDR #20524

Closed

Provide feedback

Saved searches

Use saved searches to filter your results more quickly

gnrc_lorawan: encode LoRaWAN port in netif header#16080

gnrc_lorawan: encode LoRaWAN port in netif header#16080
leandrolanzieri merged 4 commits intoRIOT-OS:masterfrom
jia200x:pr/gnrc_lorawan_netif

jia200x commented Feb 23, 2021 •

edited by MrKevinWeiss

Loading

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

jia200x commented Jun 9, 2021

Uh oh!

MrKevinWeiss commented Jun 14, 2021

Uh oh!

MrKevinWeiss commented Jun 15, 2021

Uh oh!

MrKevinWeiss commented Jun 15, 2021

Uh oh!

jia200x commented Jun 15, 2021

Uh oh!

MrKevinWeiss left a comment

Uh oh!

Uh oh!

Uh oh!

leandrolanzieri commented Jun 16, 2021

Uh oh!

leandrolanzieri left a comment

Uh oh!

Reviewers

Assignees

Labels

Projects

Milestone

Development

Uh oh!

5 participants

Conversation

jia200x commented Feb 23, 2021 • edited by MrKevinWeiss Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Contribution description

Testing procedure

Issues/PRs references

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

jia200x commented Jun 9, 2021

Uh oh!

MrKevinWeiss commented Jun 14, 2021

Uh oh!

MrKevinWeiss commented Jun 15, 2021

Uh oh!

MrKevinWeiss commented Jun 15, 2021

Uh oh!

jia200x commented Jun 15, 2021

Uh oh!

MrKevinWeiss left a comment

Choose a reason for hiding this comment

Uh oh!

Uh oh!

Uh oh!

leandrolanzieri commented Jun 16, 2021

Uh oh!

leandrolanzieri left a comment

Choose a reason for hiding this comment

Uh oh!

Reviewers

Assignees

Labels

Projects

Milestone

Development

Uh oh!

5 participants

jia200x commented Feb 23, 2021 •

edited by MrKevinWeiss

Loading
