boards/nucleo-f746zg: Add dma, eth, pwm and spi feature#14731

Merged
aabadie merged 1 commit intoRIOT-OS:masterfrom
hugueslarrive:boards/nucleo-f746zg
Aug 21, 2020
Merged

boards/nucleo-f746zg: Add dma, eth, pwm and spi feature#14731
aabadie merged 1 commit intoRIOT-OS:masterfrom
hugueslarrive:boards/nucleo-f746zg

Conversation

@hugueslarrive
Copy link
Copy Markdown
Contributor

@hugueslarrive hugueslarrive commented Aug 7, 2020 •
edited
Loading

Contribution description

  • dma, eth, and spi features added (inspired by those of the f767zi which very similar board)
  • configuration of the dma added for the spi
  • pwm feature added

spi_dma and pwm could be backported to the 767zi but I haven't one to make tests.

Testing procedure

  • tests/gnrc_udp : ifconfig and ping to my linux host ok, flood ping from my linux host ok
  • tests/periph_spi : bench ok at all clock speed for the two devices
  • tests/periph_spi_dma : bench ok at all clock speed for the two devices

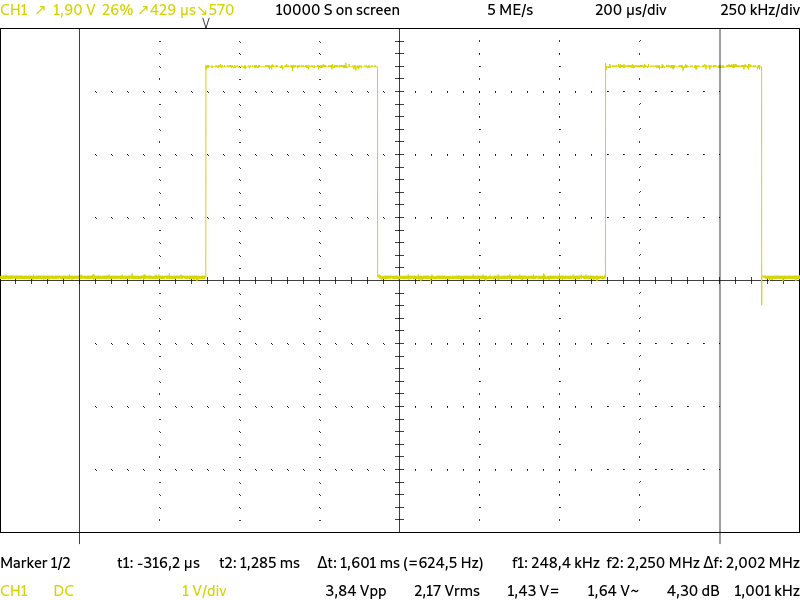

  • tests/pwm : saw the duty-cycle oscillation on the 8 outputs configured on the scope

Issues/PRs references

@benpicco benpicco added Area: boards Area: Board ports Type: new feature The issue requests / The PR implemements a new feature for RIOT labels Aug 7, 2020
@benpicco benpicco requested a review from bergzand August 7, 2020 16:18
@benpicco benpicco changed the title Boards/nucleo f746zg boards/nucleo-f746zg: Add dma, eth, pwm and spi feature Aug 7, 2020
@benpicco
Copy link
Copy Markdown
Contributor

benpicco commented Aug 7, 2020

Nice!
We are transitioning to Kconfig, so the board's Kconfig file needs to be updated with the new features too.

@hugueslarrive
Copy link
Copy Markdown
Contributor Author

hugueslarrive commented Aug 7, 2020

I updated my fork to add and update Kconfig which also fixed spi_dma bugs !

Now tests/periph_spi_dma bench is ok at all the clocks speed for both devices.

@hugueslarrive
Copy link
Copy Markdown
Contributor Author

hugueslarrive commented Aug 7, 2020

It was a shame to be limited to a clock speed of 6.75MHz on a device that can go up to 50MHz and also to have twice the same speed of 421KHz for APB2.

I have selected identical speeds for APB1 for better consistency in case someone wants to configure SPI2 or SPI3.

aabadie
aabadie reviewed Aug 8, 2020
View reviewed changes
Copy link
Copy Markdown
Contributor

@aabadie aabadie left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

I have a comment regarding the spi configuration that I think could be simplified by reusing common code.

I haven't looked at the other configurations yet.

@aabadie aabadie mentioned this pull request Aug 12, 2020
Merged
@hugueslarrive hugueslarrive requested a review from aabadie August 15, 2020 09:20
@hugueslarrive hugueslarrive mentioned this pull request Aug 15, 2020
Closed
@bergzand
Copy link
Copy Markdown
Member

bergzand commented Aug 19, 2020

@hugueslarrive I can test this in the next few days. In the meantime could you please remove the obsolete commits here: 9dc703c, 12e3158 and 95d08ac. Could you also squash the remaining commits into a single commit with as message "boards/nucleo-f746zg: Add dma, eth, pwm and spi features"

Thanks!

@hugueslarrive hugueslarrive force-pushed the boards/nucleo-f746zg branch 2 times, most recently from 9367fee to 8a9e717 Compare August 19, 2020 16:47
@benpicco benpicco added the CI: ready for build If set, CI server will compile all applications for all available boards for the labeled PR label Aug 19, 2020
benpicco
benpicco reviewed Aug 19, 2020
View reviewed changes
benpicco
benpicco reviewed Aug 19, 2020
View reviewed changes
@hugueslarrive
Copy link
Copy Markdown
Contributor Author

hugueslarrive commented Aug 20, 2020

tests/gnrc_udp:

2020-08-20 15:50:15,615 # main(): This is RIOT! (Version: 2020.10-devel-879-g28958-boards/nucleo-f746zg)
> ping fe80::ae0a:c0b6:3895:9927
2020-08-20 15:51:39,783 #  ping fe80::ae0a:c0b6:3895:9927
2020-08-20 15:51:39,790 # 12 bytes from fe80::ae0a:c0b6:3895:9927%4: icmp_seq=0 ttl=64 time=0.413 ms
2020-08-20 15:51:40,791 # 12 bytes from fe80::ae0a:c0b6:3895:9927%4: icmp_seq=1 ttl=64 time=0.450 ms
2020-08-20 15:51:41,790 # 12 bytes from fe80::ae0a:c0b6:3895:9927%4: icmp_seq=2 ttl=64 time=0.409 ms
2020-08-20 15:51:41,791 #
2020-08-20 15:51:41,795 # --- fe80::ae0a:c0b6:3895:9927 PING statistics ---
2020-08-20 15:51:41,800 # 3 packets transmitted, 3 packets received, 0% packet loss
2020-08-20 15:51:41,804 # round-trip min/avg/max = 0.409/0.424/0.450 ms
> ifconfig
2020-08-20 15:52:26,866 #  ifconfig
2020-08-20 15:52:26,869 # Iface  4  HWaddr: 06:17:2A:15:1C:41
2020-08-20 15:52:26,873 #           L2-PDU:1500  MTU:1500  HL:64  RTR
2020-08-20 15:52:26,875 #           RTR_ADV
2020-08-20 15:52:26,878 #           Source address length: 6
2020-08-20 15:52:26,880 #           Link type: wired
2020-08-20 15:52:26,886 #           inet6 addr: fe80::417:2aff:fe15:1c41  scope: link  VAL
2020-08-20 15:52:26,889 #           inet6 group: ff02::2
2020-08-20 15:52:26,892 #           inet6 group: ff02::1
2020-08-20 15:52:26,895 #           inet6 group: ff02::1:ff15:1c41
2020-08-20 15:52:26,896 #
2020-08-20 15:52:26,899 #           Statistics for Layer 2
2020-08-20 15:52:26,902 #             RX packets 51  bytes 6785
2020-08-20 15:52:26,907 #             TX packets 10 (Multicast: 4)  bytes 752
2020-08-20 15:52:26,910 #             TX succeeded 10 errors 0
2020-08-20 15:52:26,913 #           Statistics for IPv6
2020-08-20 15:52:26,916 #             RX packets 46  bytes 4451
2020-08-20 15:52:26,921 #             TX packets 10 (Multicast: 4)  bytes 612
2020-08-20 15:52:26,924 #             TX succeeded 10 errors 0
2020-08-20 15:52:26,924 #
> 2020-08-20 15:52:43,836 # Exiting Pyterm
make: *** [/home/hugues/riot-forks/nucleo-f746zg/RIOT/tests/gnrc_udp/../../Makefile.include:741: term] Interrompre

flood ping from linux host:

# ping -f fe80::417:2aff:fe15:1c41%eno2
PING fe80::417:2aff:fe15:1c41%eno2(fe80::417:2aff:fe15:1c41%eno2) 56 data bytes
.^C
--- fe80::417:2aff:fe15:1c41%eno2 ping statistics ---
9305 packets transmitted, 9304 received, 0,0107469% packet loss, time 5454ms
rtt min/avg/max/mdev = 0.337/0.540/0.966/0.060 ms, ipg/ewma 0.586/0.499 ms

Bug described in #13490 is still present.

benpicco
benpicco reviewed Aug 20, 2020
View reviewed changes
@hugueslarrive
Copy link
Copy Markdown
Contributor Author

hugueslarrive commented Aug 20, 2020

tests/periph_spi:

2020-08-20 16:04:40,567 # main(): This is RIOT! (Version: 2020.10-devel-879-g28958-boards/nucleo-f746zg)
2020-08-20 16:04:40,570 # Manual SPI peripheral driver test
2020-08-20 16:04:40,574 # Refer to the README.md file for more information.
2020-08-20 16:04:40,574 #
2020-08-20 16:04:40,579 # There are 2 SPI devices configured for your platform.
init 0 0 0 0 0
2020-08-20 16:04:55,198 #  init 0 0 0 0 0
2020-08-20 16:04:55,203 # SPI_DEV(0) initialized: mode: 0, clk: 0, cs_port: 0, cs_pin: 0
bench
2020-08-20 16:05:02,778 #  bench
2020-08-20 16:05:02,782 # ### Running some benchmarks, all values in [us] ###
2020-08-20 16:05:02,786 # ### Test				Transfer time	user time
2020-08-20 16:05:02,786 #
2020-08-20 16:05:02,809 #  1 - write 1000 times 1 byte:			19520	19523
2020-08-20 16:05:02,851 #  2 - write 1000 times 2 byte:			38307	38310
2020-08-20 16:05:04,752 #  3 - write 1000 times 100 byte:		1896964	1896967
2020-08-20 16:05:04,796 #  4 - write 1000 times 1 byte to register:	38845	38848
2020-08-20 16:05:04,858 #  5 - write 1000 times 2 byte to register:	57623	57625
2020-08-20 16:05:06,780 #  6 - write 1000 times 100 byte to register:	1916197	1916199
2020-08-20 16:05:06,822 #  7 - read 1000 times 2 byte:			37956	37958
2020-08-20 16:05:08,722 #  8 - read 1000 times 100 byte:		1896418	1896421
2020-08-20 16:05:08,785 #  9 - read 1000 times 2 byte from register:	57558	57561
2020-08-20 16:05:10,706 # 10 - read 1000 times 100 byte from register:	1916040	1916042
2020-08-20 16:05:10,748 # 11 - transfer 1000 times 2 byte:		38146	38148
2020-08-20 16:05:12,650 # 12 - transfer 1000 times 100 byte:		1896599	1896602
2020-08-20 16:05:12,712 # 13 - transfer 1000 times 2 byte to register:	57623	57625
2020-08-20 16:05:14,634 # 14 - transfer 1000 times 100 byte to register:1915975	1915977
2020-08-20 16:05:14,641 # 15 - acquire/release 1000 times:		2989	2992
2020-08-20 16:05:15,643 # -- - SUM:					11786760	11786798
2020-08-20 16:05:15,644 #
2020-08-20 16:05:15,646 # ### All runs complete ###
init 0 0 1 0 0
2020-08-20 16:05:20,582 #  init 0 0 1 0 0
2020-08-20 16:05:20,587 # SPI_DEV(0) initialized: mode: 0, clk: 1, cs_port: 0, cs_pin: 0
bench 0
2020-08-20 16:05:21,968 #  bench
2020-08-20 16:05:21,973 # ### Running some benchmarks, all values in [us] ###
2020-08-20 16:05:21,976 # ### Test				Transfer time	user time
2020-08-20 16:05:21,976 #
2020-08-20 16:05:21,999 #  1 - write 1000 times 1 byte:			19520	19523
2020-08-20 16:05:22,041 #  2 - write 1000 times 2 byte:			38307	38310
2020-08-20 16:05:23,943 #  3 - write 1000 times 100 byte:		1896964	1896967
2020-08-20 16:05:23,986 #  4 - write 1000 times 1 byte to register:	38845	38848
2020-08-20 16:05:24,049 #  5 - write 1000 times 2 byte to register:	57623	57625
2020-08-20 16:05:25,971 #  6 - write 1000 times 100 byte to register:	1916197	1916199
2020-08-20 16:05:26,012 #  7 - read 1000 times 2 byte:			37956	37958
2020-08-20 16:05:27,913 #  8 - read 1000 times 100 byte:		1896418	1896421
2020-08-20 16:05:27,976 #  9 - read 1000 times 2 byte from register:	57558	57561
2020-08-20 16:05:29,897 # 10 - read 1000 times 100 byte from register:	1916040	1916042
2020-08-20 16:05:29,939 # 11 - transfer 1000 times 2 byte:		38146	38148
2020-08-20 16:05:31,841 # 12 - transfer 1000 times 100 byte:		1896599	1896602
2020-08-20 16:05:31,903 # 13 - transfer 1000 times 2 byte to register:	57623	57625
2020-08-20 16:05:33,825 # 14 - transfer 1000 times 100 byte to register:1915975	1915977
2020-08-20 16:05:33,832 # 15 - acquire/release 1000 times:		2989	2992
2020-08-20 16:05:34,835 # -- - SUM:					11786760	11786798
2020-08-20 16:05:34,835 #
2020-08-20 16:05:34,837 # ### All runs complete ###
init 0 0 2 0 0
2020-08-20 16:05:41,905 #  init 0 0 2 0 0
2020-08-20 16:05:41,911 # SPI_DEV(0) initialized: mode: 0, clk: 2, cs_port: 0, cs_pin: 0
bench 0
2020-08-20 16:05:46,123 #  bench
2020-08-20 16:05:46,127 # ### Running some benchmarks, all values in [us] ###
2020-08-20 16:05:46,131 # ### Test				Transfer time	user time
2020-08-20 16:05:46,131 #
2020-08-20 16:05:46,145 #  1 - write 1000 times 1 byte:			10659	10662
2020-08-20 16:05:46,169 #  2 - write 1000 times 2 byte:			19928	19931
2020-08-20 16:05:47,123 #  3 - write 1000 times 100 byte:		949418	949421
2020-08-20 16:05:47,148 #  4 - write 1000 times 1 byte to register:	21095	21098
2020-08-20 16:05:47,184 #  5 - write 1000 times 2 byte to register:	30401	30403
2020-08-20 16:05:48,148 #  6 - write 1000 times 100 byte to register:	959762	959764
2020-08-20 16:05:48,172 #  7 - read 1000 times 2 byte:			19576	19579
2020-08-20 16:05:49,125 #  8 - read 1000 times 100 byte:		948825	948828
2020-08-20 16:05:49,160 #  9 - read 1000 times 2 byte from register:	30289	30292
2020-08-20 16:05:50,125 # 10 - read 1000 times 100 byte from register:	959558	959561
2020-08-20 16:05:50,148 # 11 - transfer 1000 times 2 byte:		19752	19754
2020-08-20 16:05:51,102 # 12 - transfer 1000 times 100 byte:		948997	949000
2020-08-20 16:05:51,137 # 13 - transfer 1000 times 2 byte to register:	30336	30339
2020-08-20 16:05:52,102 # 14 - transfer 1000 times 100 byte to register:959484	959487
2020-08-20 16:05:52,109 # 15 - acquire/release 1000 times:		2988	2991
2020-08-20 16:05:53,111 # -- - SUM:					5911068	5911110
2020-08-20 16:05:53,112 #
2020-08-20 16:05:53,114 # ### All runs complete ###
init 0 0 3 0 0
2020-08-20 16:05:57,493 #  init 0 0 3 0 0
2020-08-20 16:05:57,499 # SPI_DEV(0) initialized: mode: 0, clk: 3, cs_port: 0, cs_pin: 0
bench 0
2020-08-20 16:05:59,287 #  bench
2020-08-20 16:05:59,291 # ### Running some benchmarks, all values in [us] ###
2020-08-20 16:05:59,294 # ### Test				Transfer time	user time
2020-08-20 16:05:59,294 #
2020-08-20 16:05:59,302 #  1 - write 1000 times 1 byte:			3947	3949
2020-08-20 16:05:59,312 #  2 - write 1000 times 2 byte:			6132	6134
2020-08-20 16:05:59,555 #  3 - write 1000 times 100 byte:		238724	238727
2020-08-20 16:05:59,567 #  4 - write 1000 times 1 byte to register:	7716	7718
2020-08-20 16:05:59,582 #  5 - write 1000 times 2 byte to register:	9938	9940
2020-08-20 16:05:59,829 #  6 - write 1000 times 100 byte to register:	242437	242440
2020-08-20 16:05:59,839 #  7 - read 1000 times 2 byte:			5965	5968
2020-08-20 16:06:00,097 #  8 - read 1000 times 100 byte:		253780	253782
2020-08-20 16:06:00,111 #  9 - read 1000 times 2 byte from register:	10012	10014
2020-08-20 16:06:00,374 # 10 - read 1000 times 100 byte from register:	257845	257848
2020-08-20 16:06:00,385 # 11 - transfer 1000 times 2 byte:		6192	6195
2020-08-20 16:06:00,647 # 12 - transfer 1000 times 100 byte:		258099	258102
2020-08-20 16:06:00,662 # 13 - transfer 1000 times 2 byte to register:	10113	10116
2020-08-20 16:06:00,929 # 14 - transfer 1000 times 100 byte to register:261920	261922
2020-08-20 16:06:00,936 # 15 - acquire/release 1000 times:		2988	2991
2020-08-20 16:06:01,939 # -- - SUM:					1575808	1575846
2020-08-20 16:06:01,940 #
2020-08-20 16:06:01,942 # ### All runs complete ###
init 0 0 4 0 0
2020-08-20 16:06:07,535 #  init 0 0 4 0 0
2020-08-20 16:06:07,540 # SPI_DEV(0) initialized: mode: 0, clk: 4, cs_port: 0, cs_pin: 0
bench 0
2020-08-20 16:06:09,801 #  bench
2020-08-20 16:06:09,806 # ### Running some benchmarks, all values in [us] ###
2020-08-20 16:06:09,809 # ### Test				Transfer time	user time
2020-08-20 16:06:09,809 #
2020-08-20 16:06:09,815 #  1 - write 1000 times 1 byte:			2872	2875
2020-08-20 16:06:09,823 #  2 - write 1000 times 2 byte:			3863	3866
2020-08-20 16:06:09,948 #  3 - write 1000 times 100 byte:		120298	120301
2020-08-20 16:06:09,958 #  4 - write 1000 times 1 byte to register:	5530	5532
2020-08-20 16:06:09,968 #  5 - write 1000 times 2 byte to register:	6512	6515
2020-08-20 16:06:10,097 #  6 - write 1000 times 100 byte to register:	122855	122857
2020-08-20 16:06:10,104 #  7 - read 1000 times 2 byte:			3743	3746
2020-08-20 16:06:10,251 #  8 - read 1000 times 100 byte:		142669	142671
2020-08-20 16:06:10,262 #  9 - read 1000 times 2 byte from register:	6679	6681
2020-08-20 16:06:10,413 # 10 - read 1000 times 100 byte from register:	145623	145625
2020-08-20 16:06:10,420 # 11 - transfer 1000 times 2 byte:		4043	4047
2020-08-20 16:06:10,576 # 12 - transfer 1000 times 100 byte:		150691	150694
2020-08-20 16:06:10,587 # 13 - transfer 1000 times 2 byte to register:	6854	6857
2020-08-20 16:06:10,746 # 14 - transfer 1000 times 100 byte to register:153401	153403
2020-08-20 16:06:10,753 # 15 - acquire/release 1000 times:		2988	2991
2020-08-20 16:06:11,756 # -- - SUM:					878621	878661
2020-08-20 16:06:11,756 #
2020-08-20 16:06:11,758 # ### All runs complete ###
init 1 0 0 0 0
2020-08-20 16:06:23,331 #  init 1 0 0 0 0
2020-08-20 16:06:23,336 # SPI_DEV(1) initialized: mode: 0, clk: 0, cs_port: 0, cs_pin: 0
bench 0
2020-08-20 16:06:25,408 #  bench
2020-08-20 16:06:25,413 # ### Running some benchmarks, all values in [us] ###
2020-08-20 16:06:25,416 # ### Test				Transfer time	user time
2020-08-20 16:06:25,416 #
2020-08-20 16:06:25,439 #  1 - write 1000 times 1 byte:			19521	19522
2020-08-20 16:06:25,481 #  2 - write 1000 times 2 byte:			38308	38310
2020-08-20 16:06:27,383 #  3 - write 1000 times 100 byte:		1896965	1896968
2020-08-20 16:06:27,426 #  4 - write 1000 times 1 byte to register:	38845	38848
2020-08-20 16:06:27,489 #  5 - write 1000 times 2 byte to register:	57623	57626
2020-08-20 16:06:29,410 #  6 - write 1000 times 100 byte to register:	1916197	1916199
2020-08-20 16:06:29,452 #  7 - read 1000 times 2 byte:			37955	37958
2020-08-20 16:06:31,353 #  8 - read 1000 times 100 byte:		1896419	1896421
2020-08-20 16:06:31,415 #  9 - read 1000 times 2 byte from register:	57558	57561
2020-08-20 16:06:33,336 # 10 - read 1000 times 100 byte from register:	1916039	1916042
2020-08-20 16:06:33,379 # 11 - transfer 1000 times 2 byte:		38145	38148
2020-08-20 16:06:35,280 # 12 - transfer 1000 times 100 byte:		1896599	1896602
2020-08-20 16:06:35,342 # 13 - transfer 1000 times 2 byte to register:	57623	57625
2020-08-20 16:06:37,264 # 14 - transfer 1000 times 100 byte to register:1915975	1915978
2020-08-20 16:06:37,271 # 15 - acquire/release 1000 times:		2989	2991
2020-08-20 16:06:38,274 # -- - SUM:					11786761	11786799
2020-08-20 16:06:38,274 #
2020-08-20 16:06:38,276 # ### All runs complete ###
init 1 0 1 0 0
2020-08-20 16:06:42,532 #  init 1 0 1 0 0
2020-08-20 16:06:42,538 # SPI_DEV(1) initialized: mode: 0, clk: 1, cs_port: 0, cs_pin: 0
bench 0
2020-08-20 16:06:45,491 #  bench
2020-08-20 16:06:45,495 # ### Running some benchmarks, all values in [us] ###
2020-08-20 16:06:45,498 # ### Test				Transfer time	user time
2020-08-20 16:06:45,499 #
2020-08-20 16:06:45,521 #  1 - write 1000 times 1 byte:			19520	19523
2020-08-20 16:06:45,564 #  2 - write 1000 times 2 byte:			38307	38310
2020-08-20 16:06:47,466 #  3 - write 1000 times 100 byte:		1896964	1896967
2020-08-20 16:06:47,509 #  4 - write 1000 times 1 byte to register:	38845	38848
2020-08-20 16:06:47,572 #  5 - write 1000 times 2 byte to register:	57623	57625
2020-08-20 16:06:49,493 #  6 - write 1000 times 100 byte to register:	1916197	1916199
2020-08-20 16:06:49,534 #  7 - read 1000 times 2 byte:			37956	37958
2020-08-20 16:06:51,435 #  8 - read 1000 times 100 byte:		1896418	1896421
2020-08-20 16:06:51,498 #  9 - read 1000 times 2 byte from register:	57558	57561
2020-08-20 16:06:53,420 # 10 - read 1000 times 100 byte from register:	1916040	1916042
2020-08-20 16:06:53,462 # 11 - transfer 1000 times 2 byte:		38146	38148
2020-08-20 16:06:55,363 # 12 - transfer 1000 times 100 byte:		1896599	1896602
2020-08-20 16:06:55,426 # 13 - transfer 1000 times 2 byte to register:	57623	57625
2020-08-20 16:06:57,347 # 14 - transfer 1000 times 100 byte to register:1915975	1915977
2020-08-20 16:06:57,354 # 15 - acquire/release 1000 times:		2989	2992
2020-08-20 16:06:58,357 # -- - SUM:					11786760	11786798
2020-08-20 16:06:58,357 #
2020-08-20 16:06:58,359 # ### All runs complete ###
init 1 0 2 0 0
2020-08-20 16:07:03,536 #  init 1 0 2 0 0
2020-08-20 16:07:03,542 # SPI_DEV(1) initialized: mode: 0, clk: 2, cs_port: 0, cs_pin: 0
bench 0
2020-08-20 16:07:06,792 #  bench
2020-08-20 16:07:06,796 # ### Running some benchmarks, all values in [us] ###
2020-08-20 16:07:06,799 # ### Test				Transfer time	user time
2020-08-20 16:07:06,799 #
2020-08-20 16:07:06,814 #  1 - write 1000 times 1 byte:			10660	10662
2020-08-20 16:07:06,838 #  2 - write 1000 times 2 byte:			19927	19930
2020-08-20 16:07:07,792 #  3 - write 1000 times 100 byte:		949419	949421
2020-08-20 16:07:07,817 #  4 - write 1000 times 1 byte to register:	21095	21097
2020-08-20 16:07:07,852 #  5 - write 1000 times 2 byte to register:	30401	30404
2020-08-20 16:07:08,817 #  6 - write 1000 times 100 byte to register:	959762	959764
2020-08-20 16:07:08,841 #  7 - read 1000 times 2 byte:			19576	19578
2020-08-20 16:07:09,794 #  8 - read 1000 times 100 byte:		948826	948828
2020-08-20 16:07:09,829 #  9 - read 1000 times 2 byte from register:	30290	30292
2020-08-20 16:07:10,793 # 10 - read 1000 times 100 byte from register:	959558	959561
2020-08-20 16:07:10,817 # 11 - transfer 1000 times 2 byte:		19752	19755
2020-08-20 16:07:11,771 # 12 - transfer 1000 times 100 byte:		948998	949000
2020-08-20 16:07:11,806 # 13 - transfer 1000 times 2 byte to register:	30336	30338
2020-08-20 16:07:12,771 # 14 - transfer 1000 times 100 byte to register:959485	959487
2020-08-20 16:07:12,778 # 15 - acquire/release 1000 times:		2989	2991
2020-08-20 16:07:13,780 # -- - SUM:					5911074	5911108
2020-08-20 16:07:13,781 #
2020-08-20 16:07:13,783 # ### All runs complete ###
init 1 0 3 0 0
2020-08-20 16:07:18,436 #  init 1 0 3 0 0
2020-08-20 16:07:18,442 # SPI_DEV(1) initialized: mode: 0, clk: 3, cs_port: 0, cs_pin: 0
bench 0
2020-08-20 16:07:20,363 #  bench
2020-08-20 16:07:20,367 # ### Running some benchmarks, all values in [us] ###
2020-08-20 16:07:20,370 # ### Test				Transfer time	user time
2020-08-20 16:07:20,371 #
2020-08-20 16:07:20,378 #  1 - write 1000 times 1 byte:			3947	3949
2020-08-20 16:07:20,388 #  2 - write 1000 times 2 byte:			6131	6134
2020-08-20 16:07:20,631 #  3 - write 1000 times 100 byte:		238724	238726
2020-08-20 16:07:20,643 #  4 - write 1000 times 1 byte to register:	7715	7718
2020-08-20 16:07:20,657 #  5 - write 1000 times 2 byte to register:	9937	9940
2020-08-20 16:07:20,905 #  6 - write 1000 times 100 byte to register:	242438	242441
2020-08-20 16:07:20,915 #  7 - read 1000 times 2 byte:			5965	5968
2020-08-20 16:07:21,172 #  8 - read 1000 times 100 byte:		253779	253782
2020-08-20 16:07:21,187 #  9 - read 1000 times 2 byte from register:	10012	10014
2020-08-20 16:07:21,450 # 10 - read 1000 times 100 byte from register:	257845	257847
2020-08-20 16:07:21,460 # 11 - transfer 1000 times 2 byte:		6192	6195
2020-08-20 16:07:21,723 # 12 - transfer 1000 times 100 byte:		258099	258102
2020-08-20 16:07:21,738 # 13 - transfer 1000 times 2 byte to register:	10114	10117
2020-08-20 16:07:22,005 # 14 - transfer 1000 times 100 byte to register:261919	261922
2020-08-20 16:07:22,012 # 15 - acquire/release 1000 times:		2988	2992
2020-08-20 16:07:23,015 # -- - SUM:					1575805	1575847
2020-08-20 16:07:23,015 #
2020-08-20 16:07:23,017 # ### All runs complete ###
init 1 0 4 0 0
2020-08-20 16:07:31,843 #  init 1 0 4 0 0
2020-08-20 16:07:31,848 # SPI_DEV(1) initialized: mode: 0, clk: 4, cs_port: 0, cs_pin: 0
bench 0
2020-08-20 16:07:34,050 #  bench
2020-08-20 16:07:34,055 # ### Running some benchmarks, all values in [us] ###
2020-08-20 16:07:34,058 # ### Test				Transfer time	user time
2020-08-20 16:07:34,059 #
2020-08-20 16:07:34,065 #  1 - write 1000 times 1 byte:			2873	2875
2020-08-20 16:07:34,073 #  2 - write 1000 times 2 byte:			3863	3865
2020-08-20 16:07:34,197 #  3 - write 1000 times 100 byte:		120298	120300
2020-08-20 16:07:34,207 #  4 - write 1000 times 1 byte to register:	5530	5533
2020-08-20 16:07:34,219 #  5 - write 1000 times 2 byte to register:	6511	6514
2020-08-20 16:07:34,346 #  6 - write 1000 times 100 byte to register:	122854	122857
2020-08-20 16:07:34,354 #  7 - read 1000 times 2 byte:			3742	3745
2020-08-20 16:07:34,500 #  8 - read 1000 times 100 byte:		142669	142671
2020-08-20 16:07:34,512 #  9 - read 1000 times 2 byte from register:	6678	6681
2020-08-20 16:07:34,663 # 10 - read 1000 times 100 byte from register:	145623	145626
2020-08-20 16:07:34,671 # 11 - transfer 1000 times 2 byte:		4044	4046
2020-08-20 16:07:34,826 # 12 - transfer 1000 times 100 byte:		150692	150694
2020-08-20 16:07:34,837 # 13 - transfer 1000 times 2 byte to register:	6854	6857
2020-08-20 16:07:34,996 # 14 - transfer 1000 times 100 byte to register:153401	153404
2020-08-20 16:07:35,003 # 15 - acquire/release 1000 times:		2988	2991
2020-08-20 16:07:36,005 # -- - SUM:					878620	878659
2020-08-20 16:07:36,006 #
2020-08-20 16:07:36,008 # ### All runs complete ###
>

@hugueslarrive
Copy link
Copy Markdown
Contributor Author

hugueslarrive commented Aug 20, 2020

tests/periph_spi_dma:

2020-08-20 16:18:16,714 # main(): This is RIOT! (Version: 2020.10-devel-879-g28958-boards/nucleo-f746zg)
2020-08-20 16:18:16,717 # Manual SPI peripheral driver test
2020-08-20 16:18:16,721 # Refer to the README.md file for more information.
2020-08-20 16:18:16,722 #
2020-08-20 16:18:16,726 # There are 2 SPI devices configured for your platform.
init 0 0 0 0 0
2020-08-20 16:18:20,617 #  init 0 0 0 0 0
2020-08-20 16:18:20,623 # SPI_DEV(0) initialized: mode: 0, clk: 0, cs_port: 0, cs_pin: 0
bench
2020-08-20 16:18:28,038 #  bench
2020-08-20 16:18:28,043 # ### Running some benchmarks, all values in [us] ###
2020-08-20 16:18:28,046 # ### Test				Transfer time	user time
2020-08-20 16:18:28,046 #
2020-08-20 16:18:28,079 #  1 - write 1000 times 1 byte:			29538	12133
2020-08-20 16:18:28,131 #  2 - write 1000 times 2 byte:			48372	12299
2020-08-20 16:18:30,043 #  3 - write 1000 times 100 byte:		1906556	10226
2020-08-20 16:18:30,106 #  4 - write 1000 times 1 byte to register:	58705	24224
2020-08-20 16:18:30,189 #  5 - write 1000 times 2 byte to register:	77927	24597
2020-08-20 16:18:32,129 #  6 - write 1000 times 100 byte to register:	1935890	22226
2020-08-20 16:18:32,181 #  7 - read 1000 times 2 byte:			48001	12004
2020-08-20 16:18:34,092 #  8 - read 1000 times 100 byte:		1906241	9708
2020-08-20 16:18:34,174 #  9 - read 1000 times 2 byte from register:	77446	24224
2020-08-20 16:18:36,115 # 10 - read 1000 times 100 byte from register:	1935649	21780
2020-08-20 16:18:36,167 # 11 - transfer 1000 times 2 byte:		48094	11966
2020-08-20 16:18:38,078 # 12 - transfer 1000 times 100 byte:		1906436	9911
2020-08-20 16:18:38,160 # 13 - transfer 1000 times 2 byte to register:	77557	24225
2020-08-20 16:18:40,101 # 14 - transfer 1000 times 100 byte to register:1935594	21967
2020-08-20 16:18:40,115 # 15 - acquire/release 1000 times:		9794	9797
2020-08-20 16:18:41,118 # -- - SUM:					12001800	251287
2020-08-20 16:18:41,118 #
2020-08-20 16:18:41,120 # ### All runs complete ###
init 0 0 1 0 0
2020-08-20 16:18:58,150 #  init 0 0 1 0 0
2020-08-20 16:18:58,156 # SPI_DEV(0) initialized: mode: 0, clk: 1, cs_port: 0, cs_pin: 0
bench 0
2020-08-20 16:19:00,543 #  bench
2020-08-20 16:19:00,548 # ### Running some benchmarks, all values in [us] ###
2020-08-20 16:19:00,551 # ### Test				Transfer time	user time
2020-08-20 16:19:00,551 #
2020-08-20 16:19:00,585 #  1 - write 1000 times 1 byte:			29538	12133
2020-08-20 16:19:00,637 #  2 - write 1000 times 2 byte:			48372	12300
2020-08-20 16:19:02,548 #  3 - write 1000 times 100 byte:		1906557	10226
2020-08-20 16:19:02,611 #  4 - write 1000 times 1 byte to register:	58704	24227
2020-08-20 16:19:02,694 #  5 - write 1000 times 2 byte to register:	77927	24596
2020-08-20 16:19:04,635 #  6 - write 1000 times 100 byte to register:	1935890	22226
2020-08-20 16:19:04,687 #  7 - read 1000 times 2 byte:			48002	12003
2020-08-20 16:19:06,597 #  8 - read 1000 times 100 byte:		1906242	9706
2020-08-20 16:19:06,679 #  9 - read 1000 times 2 byte from register:	77445	24226
2020-08-20 16:19:08,620 # 10 - read 1000 times 100 byte from register:	1935649	21782
2020-08-20 16:19:08,672 # 11 - transfer 1000 times 2 byte:		48094	11968
2020-08-20 16:19:10,583 # 12 - transfer 1000 times 100 byte:		1906436	9912
2020-08-20 16:19:10,665 # 13 - transfer 1000 times 2 byte to register:	77557	24225
2020-08-20 16:19:12,607 # 14 - transfer 1000 times 100 byte to register:1935594	21967
2020-08-20 16:19:12,620 # 15 - acquire/release 1000 times:		9794	9797
2020-08-20 16:19:13,623 # -- - SUM:					12001801	251294
2020-08-20 16:19:13,623 #
2020-08-20 16:19:13,625 # ### All runs complete ###
init 0 0 2 0 0
2020-08-20 16:19:19,111 #  init 0 0 2 0 0
2020-08-20 16:19:19,117 # SPI_DEV(0) initialized: mode: 0, clk: 2, cs_port: 0, cs_pin: 0
bench 0
2020-08-20 16:19:21,379 #  bench
2020-08-20 16:19:21,384 # ### Running some benchmarks, all values in [us] ###
2020-08-20 16:19:21,387 # ### Test				Transfer time	user time
2020-08-20 16:19:21,387 #
2020-08-20 16:19:21,412 #  1 - write 1000 times 1 byte:			20649	12131
2020-08-20 16:19:21,446 #  2 - write 1000 times 2 byte:			30001	13003
2020-08-20 16:19:22,409 #  3 - write 1000 times 100 byte:		959001	11002
2020-08-20 16:19:22,454 #  4 - write 1000 times 1 byte to register:	40927	24225
2020-08-20 16:19:22,510 #  5 - write 1000 times 2 byte to register:	50668	24670
2020-08-20 16:19:23,494 #  6 - write 1000 times 100 byte to register:	979445	22226
2020-08-20 16:19:23,528 #  7 - read 1000 times 2 byte:			29631	11893
2020-08-20 16:19:24,490 #  8 - read 1000 times 100 byte:		958686	9707
2020-08-20 16:19:24,545 #  9 - read 1000 times 2 byte from register:	50187	24152
2020-08-20 16:19:25,529 # 10 - read 1000 times 100 byte from register:	979205	21778
2020-08-20 16:19:25,563 # 11 - transfer 1000 times 2 byte:		29723	12004
2020-08-20 16:19:26,526 # 12 - transfer 1000 times 100 byte:		958881	9912
2020-08-20 16:19:26,582 # 13 - transfer 1000 times 2 byte to register:	50297	24299
2020-08-20 16:19:27,566 # 14 - transfer 1000 times 100 byte to register:979149	21966
2020-08-20 16:19:27,580 # 15 - acquire/release 1000 times:		9794	9797
2020-08-20 16:19:28,583 # -- - SUM:					6126244	252765
2020-08-20 16:19:28,583 #
2020-08-20 16:19:28,586 # ### All runs complete ###
init 0 0 3 0 0
2020-08-20 16:19:34,096 #  init 0 0 3 0 0
2020-08-20 16:19:34,102 # SPI_DEV(0) initialized: mode: 0, clk: 3, cs_port: 0, cs_pin: 0
bench 0
2020-08-20 16:19:35,902 #  bench
2020-08-20 16:19:35,906 # ### Running some benchmarks, all values in [us] ###
2020-08-20 16:19:35,910 # ### Test				Transfer time	user time
2020-08-20 16:19:35,910 #
2020-08-20 16:19:35,926 #  1 - write 1000 times 1 byte:			12594	12597
2020-08-20 16:19:35,948 #  2 - write 1000 times 2 byte:			18335	12337
2020-08-20 16:19:36,201 #  3 - write 1000 times 100 byte:		248335	10004
2020-08-20 16:19:36,230 #  4 - write 1000 times 1 byte to register:	24797	24801
2020-08-20 16:19:36,266 #  5 - write 1000 times 2 byte to register:	31075	25078
2020-08-20 16:19:36,532 #  6 - write 1000 times 100 byte to register:	260853	22892
2020-08-20 16:19:36,554 #  7 - read 1000 times 2 byte:			17908	11892
2020-08-20 16:19:36,806 #  8 - read 1000 times 100 byte:		248019	9716
2020-08-20 16:19:36,841 #  9 - read 1000 times 2 byte from register:	30760	24763
2020-08-20 16:19:37,107 # 10 - read 1000 times 100 byte from register:	260816	22819
2020-08-20 16:19:37,129 # 11 - transfer 1000 times 2 byte:		17983	11965
2020-08-20 16:19:37,382 # 12 - transfer 1000 times 100 byte:		248214	9912
2020-08-20 16:19:37,418 # 13 - transfer 1000 times 2 byte to register:	30890	24782
2020-08-20 16:19:37,683 # 14 - transfer 1000 times 100 byte to register:260650	22707
2020-08-20 16:19:37,697 # 15 - acquire/release 1000 times:		9794	9797
2020-08-20 16:19:38,700 # -- - SUM:					1721023	256062
2020-08-20 16:19:38,701 #
2020-08-20 16:19:38,704 # ### All runs complete ###
init 0 0 4 0 0
2020-08-20 16:19:43,875 #  init 0 0 4 0 0
2020-08-20 16:19:43,881 # SPI_DEV(0) initialized: mode: 0, clk: 4, cs_port: 0, cs_pin: 0
bench 0
2020-08-20 16:19:45,405 #  bench
2020-08-20 16:19:45,409 # ### Running some benchmarks, all values in [us] ###
2020-08-20 16:19:45,412 # ### Test				Transfer time	user time
2020-08-20 16:19:45,413 #
2020-08-20 16:19:45,424 #  1 - write 1000 times 1 byte:			7889	7892
2020-08-20 16:19:45,441 #  2 - write 1000 times 2 byte:			12594	12597
2020-08-20 16:19:45,575 #  3 - write 1000 times 100 byte:		129890	10226
2020-08-20 16:19:45,595 #  4 - write 1000 times 1 byte to register:	15270	15274
2020-08-20 16:19:45,620 #  5 - write 1000 times 2 byte to register:	20029	20033
2020-08-20 16:19:45,763 #  6 - write 1000 times 100 byte to register:	137946	18334
2020-08-20 16:19:45,778 #  7 - read 1000 times 2 byte:			12141	12143
2020-08-20 16:19:45,912 #  8 - read 1000 times 100 byte:		129575	9707
2020-08-20 16:19:45,937 #  9 - read 1000 times 2 byte from register:	19798	19801
2020-08-20 16:19:46,080 # 10 - read 1000 times 100 byte from register:	137853	18449
2020-08-20 16:19:46,096 # 11 - transfer 1000 times 2 byte:		12409	12411
2020-08-20 16:19:46,230 # 12 - transfer 1000 times 100 byte:		129769	9912
2020-08-20 16:19:46,255 # 13 - transfer 1000 times 2 byte to register:	19835	19838
2020-08-20 16:19:46,398 # 14 - transfer 1000 times 100 byte to register:137854	18263
2020-08-20 16:19:46,411 # 15 - acquire/release 1000 times:		9794	9797
2020-08-20 16:19:47,414 # -- - SUM:					932646	214677
2020-08-20 16:19:47,415 #
2020-08-20 16:19:47,416 # ### All runs complete ###
init 1 0 0 0 0
2020-08-20 16:19:59,346 #  init 1 0 0 0 0
2020-08-20 16:19:59,351 # SPI_DEV(1) initialized: mode: 0, clk: 0, cs_port: 0, cs_pin: 0
bench 0
2020-08-20 16:20:01,604 #  bench
2020-08-20 16:20:01,609 # ### Running some benchmarks, all values in [us] ###
2020-08-20 16:20:01,612 # ### Test				Transfer time	user time
2020-08-20 16:20:01,612 #
2020-08-20 16:20:01,646 #  1 - write 1000 times 1 byte:			29724	12058
2020-08-20 16:20:01,698 #  2 - write 1000 times 2 byte:			48428	12207
2020-08-20 16:20:03,609 #  3 - write 1000 times 100 byte:		1906612	10171
2020-08-20 16:20:03,672 #  4 - write 1000 times 1 byte to register:	58853	24114
2020-08-20 16:20:03,755 #  5 - write 1000 times 2 byte to register:	78038	24410
2020-08-20 16:20:05,696 #  6 - write 1000 times 100 byte to register:	1936002	22004
2020-08-20 16:20:05,748 #  7 - read 1000 times 2 byte:			48057	11781
2020-08-20 16:20:07,658 #  8 - read 1000 times 100 byte:		1906297	9708
2020-08-20 16:20:07,741 #  9 - read 1000 times 2 byte from register:	77575	23985
2020-08-20 16:20:09,682 # 10 - read 1000 times 100 byte from register:	1935630	21820
2020-08-20 16:20:09,734 # 11 - transfer 1000 times 2 byte:		48149	11892
2020-08-20 16:20:11,645 # 12 - transfer 1000 times 100 byte:		1906501	10003
2020-08-20 16:20:11,727 # 13 - transfer 1000 times 2 byte to register:	77667	24004
2020-08-20 16:20:13,669 # 14 - transfer 1000 times 100 byte to register:1935909	21869
2020-08-20 16:20:13,682 # 15 - acquire/release 1000 times:		9780	9783
2020-08-20 16:20:14,685 # -- - SUM:					12003222	249809
2020-08-20 16:20:14,685 #
2020-08-20 16:20:14,687 # ### All runs complete ###
init 1 0 1 0 0
2020-08-20 16:20:27,038 #  init 1 0 1 0 0
2020-08-20 16:20:27,044 # SPI_DEV(1) initialized: mode: 0, clk: 1, cs_port: 0, cs_pin: 0
bench 0
2020-08-20 16:20:28,688 #  bench
2020-08-20 16:20:28,693 # ### Running some benchmarks, all values in [us] ###
2020-08-20 16:20:28,696 # ### Test				Transfer time	user time
2020-08-20 16:20:28,696 #
2020-08-20 16:20:28,730 #  1 - write 1000 times 1 byte:			29723	12058
2020-08-20 16:20:28,782 #  2 - write 1000 times 2 byte:			48427	12206
2020-08-20 16:20:30,693 #  3 - write 1000 times 100 byte:		1906612	10171
2020-08-20 16:20:30,756 #  4 - write 1000 times 1 byte to register:	58853	24116
2020-08-20 16:20:30,839 #  5 - write 1000 times 2 byte to register:	78038	24410
2020-08-20 16:20:32,780 #  6 - write 1000 times 100 byte to register:	1936001	22003
2020-08-20 16:20:32,832 #  7 - read 1000 times 2 byte:			48056	11783
2020-08-20 16:20:34,742 #  8 - read 1000 times 100 byte:		1906297	9708
2020-08-20 16:20:34,825 #  9 - read 1000 times 2 byte from register:	77575	23983
2020-08-20 16:20:36,766 # 10 - read 1000 times 100 byte from register:	1935631	21818
2020-08-20 16:20:36,818 # 11 - transfer 1000 times 2 byte:		48150	11892
2020-08-20 16:20:38,729 # 12 - transfer 1000 times 100 byte:		1906501	10004
2020-08-20 16:20:38,811 # 13 - transfer 1000 times 2 byte to register:	77668	24003
2020-08-20 16:20:40,753 # 14 - transfer 1000 times 100 byte to register:1935909	21874
2020-08-20 16:20:40,766 # 15 - acquire/release 1000 times:		9780	9783
2020-08-20 16:20:41,769 # -- - SUM:					12003221	249812
2020-08-20 16:20:41,769 #
2020-08-20 16:20:41,771 # ### All runs complete ###
init 1 0 2 0 0
2020-08-20 16:20:48,794 #  init 1 0 2 0 0
2020-08-20 16:20:48,801 # SPI_DEV(1) initialized: mode: 0, clk: 2, cs_port: 0, cs_pin: 0
bench 0
2020-08-20 16:20:50,522 #  bench
2020-08-20 16:20:50,527 # ### Running some benchmarks, all values in [us] ###
2020-08-20 16:20:50,531 # ### Test				Transfer time	user time
2020-08-20 16:20:50,531 #
2020-08-20 16:20:50,555 #  1 - write 1000 times 1 byte:			20835	12169
2020-08-20 16:20:50,589 #  2 - write 1000 times 2 byte:			30056	12169
2020-08-20 16:20:51,552 #  3 - write 1000 times 100 byte:		959057	10170
2020-08-20 16:20:51,598 #  4 - write 1000 times 1 byte to register:	41076	24042
2020-08-20 16:20:51,653 #  5 - write 1000 times 2 byte to register:	50779	24447
2020-08-20 16:20:52,638 #  6 - write 1000 times 100 byte to register:	979556	22226
2020-08-20 16:20:52,671 #  7 - read 1000 times 2 byte:			29686	11800
2020-08-20 16:20:53,634 #  8 - read 1000 times 100 byte:		958741	9708
2020-08-20 16:20:53,689 #  9 - read 1000 times 2 byte from register:	50316	23983
2020-08-20 16:20:54,674 # 10 - read 1000 times 100 byte from register:	979186	21782
2020-08-20 16:20:54,708 # 11 - transfer 1000 times 2 byte:		29779	11893
2020-08-20 16:20:55,671 # 12 - transfer 1000 times 100 byte:		958945	9948
2020-08-20 16:20:55,727 # 13 - transfer 1000 times 2 byte to register:	50409	24114
2020-08-20 16:20:56,711 # 14 - transfer 1000 times 100 byte to register:979464	21876
2020-08-20 16:20:56,725 # 15 - acquire/release 1000 times:		9780	9783
2020-08-20 16:20:57,728 # -- - SUM:					6127665	250110
2020-08-20 16:20:57,728 #
2020-08-20 16:20:57,730 # ### All runs complete ###
init 1 0 3 0 0
2020-08-20 16:21:02,445 #  init 1 0 3 0 0
2020-08-20 16:21:02,451 # SPI_DEV(1) initialized: mode: 0, clk: 3, cs_port: 0, cs_pin: 0
bench 0
2020-08-20 16:21:04,817 #  bench
2020-08-20 16:21:04,822 # ### Running some benchmarks, all values in [us] ###
2020-08-20 16:21:04,825 # ### Test				Transfer time	user time
2020-08-20 16:21:04,826 #
2020-08-20 16:21:04,842 #  1 - write 1000 times 1 byte:			12302	12306
2020-08-20 16:21:04,863 #  2 - write 1000 times 2 byte:			18297	12225
2020-08-20 16:21:05,116 #  3 - write 1000 times 100 byte:		248390	10171
2020-08-20 16:21:05,146 #  4 - write 1000 times 1 byte to register:	24594	24597
2020-08-20 16:21:05,181 #  5 - write 1000 times 2 byte to register:	30687	24616
2020-08-20 16:21:05,447 #  6 - write 1000 times 100 byte to register:	260798	22800
2020-08-20 16:21:05,469 #  7 - read 1000 times 2 byte:			17872	11800
2020-08-20 16:21:05,721 #  8 - read 1000 times 100 byte:		248075	9707
2020-08-20 16:21:05,756 #  9 - read 1000 times 2 byte from register:	30557	24504
2020-08-20 16:21:06,022 # 10 - read 1000 times 100 byte from register:	260741	22651
2020-08-20 16:21:06,044 # 11 - transfer 1000 times 2 byte:		17946	11893
2020-08-20 16:21:06,296 # 12 - transfer 1000 times 100 byte:		248279	9893
2020-08-20 16:21:06,332 # 13 - transfer 1000 times 2 byte to register:	30594	24522
2020-08-20 16:21:06,598 # 14 - transfer 1000 times 100 byte to register:260483	22486
2020-08-20 16:21:06,611 # 15 - acquire/release 1000 times:		9780	9783
2020-08-20 16:21:07,613 # -- - SUM:					1719395	253954
2020-08-20 16:21:07,614 #
2020-08-20 16:21:07,617 # ### All runs complete ###
init 1 0 4 0 0
2020-08-20 16:21:12,501 #  init 1 0 4 0 0
2020-08-20 16:21:12,507 # SPI_DEV(1) initialized: mode: 0, clk: 4, cs_port: 0, cs_pin: 0
bench 0
2020-08-20 16:21:14,389 #  bench
2020-08-20 16:21:14,394 # ### Running some benchmarks, all values in [us] ###
2020-08-20 16:21:14,397 # ### Test				Transfer time	user time
2020-08-20 16:21:14,397 #
2020-08-20 16:21:14,408 #  1 - write 1000 times 1 byte:			7456	7458
2020-08-20 16:21:14,424 #  2 - write 1000 times 2 byte:			12316	12319
2020-08-20 16:21:14,558 #  3 - write 1000 times 100 byte:		129945	10172
2020-08-20 16:21:14,578 #  4 - write 1000 times 1 byte to register:	15113	15116
2020-08-20 16:21:14,603 #  5 - write 1000 times 2 byte to register:	20011	20013
2020-08-20 16:21:14,745 #  6 - write 1000 times 100 byte to register:	137557	18115
2020-08-20 16:21:14,761 #  7 - read 1000 times 2 byte:			11839	11843
2020-08-20 16:21:14,895 #  8 - read 1000 times 100 byte:		129630	9708
2020-08-20 16:21:14,920 #  9 - read 1000 times 2 byte from register:	20205	20207
2020-08-20 16:21:15,063 # 10 - read 1000 times 100 byte from register:	138088	18546
2020-08-20 16:21:15,079 # 11 - transfer 1000 times 2 byte:		12159	12162
2020-08-20 16:21:15,213 # 12 - transfer 1000 times 100 byte:		129835	9837
2020-08-20 16:21:15,238 # 13 - transfer 1000 times 2 byte to register:	19548	19551
2020-08-20 16:21:15,381 # 14 - transfer 1000 times 100 byte to register:137548	17957
2020-08-20 16:21:15,394 # 15 - acquire/release 1000 times:		9780	9783
2020-08-20 16:21:16,397 # -- - SUM:					931030	212787
2020-08-20 16:21:16,397 #
2020-08-20 16:21:16,399 # ### All runs complete ###
>

@hugueslarrive
Copy link
Copy Markdown
Contributor Author

hugueslarrive commented Aug 20, 2020

tests/periph_pwm:

2020-08-20 16:33:45,631 # PWM peripheral driver test
2020-08-20 16:33:45,631 #
> osci
2020-08-20 16:33:50,651 #  osci
2020-08-20 16:33:50,651 #
2020-08-20 16:33:50,652 # RIOT PWM test
2020-08-20 16:33:50,657 # Connect an LED or scope to PWM pins to see something.
2020-08-20 16:33:50,657 #
2020-08-20 16:33:50,660 # Available PWM device between 0 and 1
2020-08-20 16:33:50,663 # Initialized PWM_0 @ 1000Hz.
2020-08-20 16:33:50,665 # Initialized PWM_1 @ 1002Hz.
2020-08-20 16:33:50,665 #
2020-08-20 16:33:50,669 # Letting the PWM pins oscillate now...

osci

aabadie
aabadie approved these changes Aug 21, 2020
View reviewed changes
Copy link
Copy Markdown
Contributor

@aabadie aabadie left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Compared with datasheet and reference manual and all values are correct AFAICS.

ACK

@aabadie aabadie merged commit a95dfa4 into RIOT-OS:master Aug 21, 2020
@hugueslarrive hugueslarrive deleted the boards/nucleo-f746zg branch August 21, 2020 10:38
Sign up for free to join this conversation on GitHub. Already have an account? Sign in to comment

Reviewers

@benpicco benpicco benpicco approved these changes

@aabadie aabadie aabadie approved these changes

@fjmolinas fjmolinas Awaiting requested review from fjmolinas

@bergzand bergzand Awaiting requested review from bergzand

@cgundogan cgundogan Awaiting requested review from cgundogan

@jia200x jia200x Awaiting requested review from jia200x jia200x is a code owner

@leandrolanzieri leandrolanzieri Awaiting requested review from leandrolanzieri leandrolanzieri is a code owner

Assignees

No one assigned

Labels

Area: boards Area: Board ports CI: ready for build If set, CI server will compile all applications for all available boards for the labeled PR Type: new feature The issue requests / The PR implemements a new feature for RIOT

Projects

None yet

Milestone

No milestone

Development

Successfully merging this pull request may close these issues.

4 participants

@hugueslarrive @benpicco @bergzand @aabadie
