Hi GEONETCasters! Here’s the updated map of the GNC-A Community:
Do you have a newly installed GNC-A instation that hasn’t been shown in the Blog? Please send us a photo to [email protected].
GNC-A Community Map: January 2019
Reply
Monthly Archives: January 2019
New Operational GNC-A Station: CIRA-CSU (Station n° 83!)
We have a new GNC-A operational station! It was installed at CIRA (Cooperative Institute for Research in the Atmosphere), Colorado State University, USA. Their GNC-A antenna is shown at the picture below:
This is the setup being used:
Antenna:
- Manufacturer: PRODELIN
- Model: 2.4 m
LNB:
- Manufacturer: NORSAT
- Model: 3525 C-Band (3.4-4.2 GHz) PLL LNB
- Manual: Link
DVB-S Receiver:
- Manufacturer: NOVRA
- Model: S300D
- Supported technology: DVB-S and DVB-S2
- Webpage: Link
CIRA is testing the SIGMACast software, and sent the screeshot below.
Do you have a newly installed GNC-A instation that hasn’t been shown in the Blog? Please send us a photo to [email protected].
“New Operational GNC-A Station” Series:
- New Operational GNC-A Station: UHM – Haiti (Station n° 82!)
- New Operational GNC-A Station: SSEC (Station n° 81!)
- New Operational GNC-A Station: INSIVUMEH (Station n° 80!)
- GNC-A Station From NWS / NOAA (Station n° 79!)
- New Operational GNC-A Station: SMN-ARGENTINA (Station n° 78!)
- New Operational GNC-A Station: FURNAS (Station n° 77!)
- New Operational GNC-A Station: COPECO (Station n° 76!)
- New Operational GNC-A Station: INAMHI (Station n° 75!)
- GNC-A Stations From Knight-Sky (Stations 73 and 74!)
- New Operational GNC-A Station: DMH-DINAC (Station n° 72!)
- New Operational GNC-A Station: INUMET (Station n° 71!)
- New Operational GNC-A Station: SENAMHI-PERU (Station n° 70!)
- New Operational GNC-A Station: LAPIG (Station n° 69!)
- New Operational GNC-A Station: DSA-2 (Station n° 68!)
- New Operational GNC-A Station: UNAM (Station n° 67!)
- New Operational GNC-A Station: CLIMATEMPO (Station n° 66!)
- New Operational GNC-A Station: ESPOL (Station n° 65!)
- New Operational GNC-A Station: CENUR (Station n° 64!)
- New Operational GNC-A Station: ONAMET (Station n° 63!)
- New Operational GNC-A Station: CICESE (Station n° 62!)
- Three New GNC-A Stations Being Installed and a New Operational One (Station n° 61!)
GEONETCast-Americas Imagery of The Day [8]: Moonlight
… and eclipse!
Please find below the other posts from this Blog series:
- GEONETCast-Americas Imagery of The Day [1]: VIIRS Day Night Band
- GEONETCast-Americas Imagery of The Day [2]: GCOM-W1 AMSR-2 Sea Surface Temperature
- GEONETCast-Americas Imagery of The Day [3]: GOES-16 Band 13 + GCOM-W1 Rain Rate
- GEONETCast-Americas Imagery of The Day [4]: Hourly Global Blended TPW and TPW Anomaly
- GEONETCast-Americas Imagery of The Day [5]: GOES-16 + GFS Model
- GEONETCast-Americas Imagery of The Day [6]: Total Ozone Analysis using SBUV/2 and TOVS
- GEONETCast-Americas Imagery of The Day [7]: Snow and Ice!
New Operational GNC-A Station: UHM – Haiti (Station n° 82!)
We have a new GNC-A operational station! It was installed at UHM (Unité d’Hydrométéorologie), Haiti. Their GNC-A antenna is shown at the picture below:
Huge thanks to CIMO, the “Center of Instruments and Observation Methods” from INSMET, Cuba, who assisted UHM in the installation and configuration, and kindly provided photos and information.

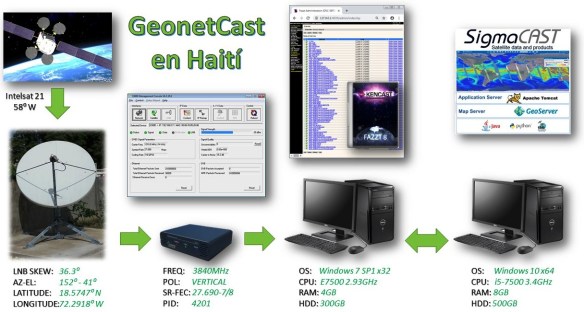

Below, the installation diagram:
Both ingestion and visualization machines are seen on the photo below:
SIGMACast and Python were installed in the visualization machine and remote access was provided in the UHM network:
Great job UHM / INSMET!
