Attaching TransformHelper to CameraHelper (With Raycasting)

Questions
, , , ,
1

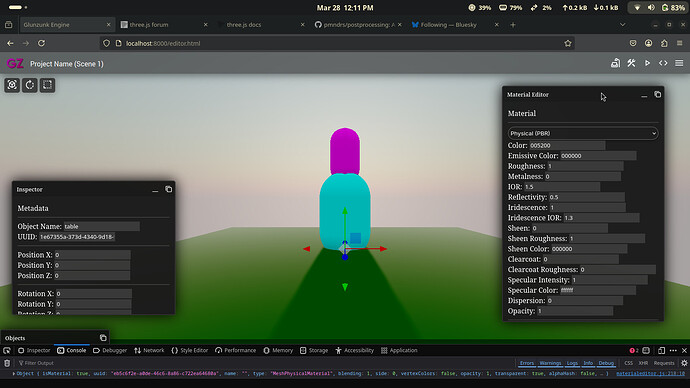

Hey, so ive gotten a good amount of progress done on my engine, however recently, ive realized that i havent even started building the scene editor itself, apart of adding TransformHelpers.

image1600×900 200 KB

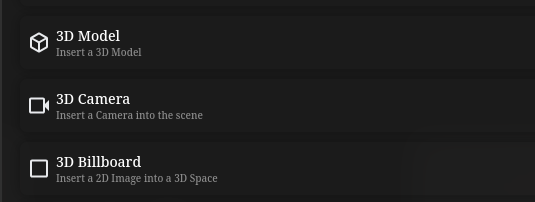

now i wanna add camera objects (aside from the editor camera)

image535×202 9.49 KB

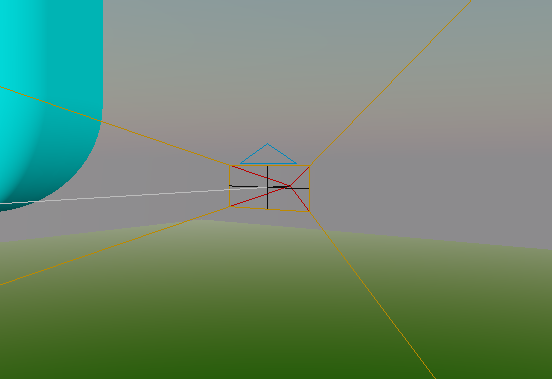

and well, the camera does get created, alongside the camera helper

image552×379 15.9 KB

i cant actually click on it, and drag the camera
( theres no errors to share )

/scripts/engine/gzjs/gzjs.objects.js

import * as THREE from 'three';
import { gzjs } from './../glunzunk.js';
// import { objects } from './../../default-project.js';
import { scene, gizmoObjects, sceneObjects, inEngine } from './../../editor/init.js';

var object = null
gzjs.createMaterial = function(type, options) {
    switch (type) {
        case 'basic': return new THREE.MeshBasicMaterial(options);
        case 'depth': return new THREE.MeshDepthMaterial(options);
        case 'lambert': return new THREE.MeshLambertMaterial(options);
        case 'matcap': return new THREE.MeshMatcapMaterial(options);
        case 'normal': return new THREE.MeshNormalMaterial(options);
        case 'phong': return new THREE.MeshPhongMaterial(options);
        case 'physical': return new THREE.MeshPhysicalMaterial(options);
        case 'standard': return new THREE.MeshStandardMaterial(options);
        case 'toon': return new THREE.MeshToonMaterial(options);
        default: return new THREE.MeshStandardMaterial(options);
    }
}

gzjs.newObject = function(name, type, color, position, params = {}, materialType = 'standard', materialProps = {}){
    const geometryMap = {
        'box': () => new THREE.BoxGeometry(params.width || 1, params.height || 1, params.depth || 1),
        'capsule': () => new THREE.CapsuleGeometry(params.radius || 1, params.length || 2, params.capSegments || 4, params.radialSegments || 8),
        'circle': () => new THREE.CircleGeometry(params.radius || 1, params.segments || 32, params.thetaStart || 0, params.thetaLength || Math.PI * 2),
        'cone': () => new THREE.ConeGeometry(params.radius || 1, params.height || 2, params.radialSegments || 8, params.heightSegments || 1, params.openEnded || false, params.thetaStart || 0, params.thetaLength || Math.PI * 2),
        'cylinder': () => new THREE.CylinderGeometry(params.radiusTop || 1, params.radiusBottom || 1, params.height || 2, params.radialSegments || 8, params.heightSegments || 1, params.openEnded || false, params.thetaStart || 0, params.thetaLength || Math.PI * 2),
        'dodecahedron': () => new THREE.DodecahedronGeometry(params.radius || 1, params.detail || 0),
        'icosahedron': () => new THREE.IcosahedronGeometry(params.radius || 1, params.detail || 0),
        'lathe': () => new THREE.LatheGeometry(params.points || [], params.segments || 12, params.phiStart || 0, params.phiLength || Math.PI * 2),
        'octahedron': () => new THREE.OctahedronGeometry(params.radius || 1, params.detail || 0),
        'plane': () => new THREE.PlaneGeometry(params.width || 1, params.height || 1, params.widthSegments || 1, params.heightSegments || 1),
        'ring': () => new THREE.RingGeometry(params.innerRadius || 0.5, params.outerRadius || 1, params.thetaSegments || 8, params.phiSegments || 1, params.thetaStart || 0, params.thetaLength || Math.PI * 2),
        'sphere': () => new THREE.SphereGeometry(params.radius || 1, params.widthSegments || 32, params.heightSegments || 16, params.phiStart || 0, params.phiLength || Math.PI * 2, params.thetaStart || 0, params.thetaLength || Math.PI),
        'tetrahedron': () => new THREE.TetrahedronGeometry(params.radius || 1, params.detail || 0),
        'torus': () => new THREE.TorusGeometry(params.radius || 1, params.tube || 0.4, params.radialSegments || 8, params.tubularSegments || 6, params.arc || Math.PI * 2),
        'torusknot': () => new THREE.TorusKnotGeometry(params.radius || 1, params.tube || 0.4, params.tubularSegments || 64, params.radialSegments || 8, params.p || 2, params.q || 3),
    };

    if (type === 'camera') {
        if (inEngine === true) {
            const helper = new THREE.CameraHelper( camera );
            scene.add( helper );
        }

        return new THREE.PerspectiveCamera(60, window.innerWidth / window.innerHeight, 0.1, 1000);
    }

    if (!geometryMap[type]) {
        console.error('Unknown type:', type);
        return null;
    }


    const materialOptions = { color: Number(color), ...materialProps };
    object = new THREE.Mesh(geometryMap[type](), gzjs.createMaterial(materialType, materialOptions));

    object.position.set(...position);
    object.castShadow = true;
    object.receiveShadow = true;
    object.name = name;

		gizmoObjects.push( object )

		sceneObjects[object.uuid] = name

    scene.add(object);
    return object;
};


gzjs.newCamera = function(name, type, position, rotation, params = {}) {
    var camera = null;
    if (type === 'perspective' || type === 'PerspectiveCamera') {
        camera = new THREE.PerspectiveCamera(params.fov || 60, params.aspect || window.innerWidth / window.innerHeight, params.near || 0.1, params.far || 2000)
    }
    // } else if (type === 'orthographic' || type === 'OrthographicCamera') {
    //     camera = new THREE.PerspectiveCamera(params.fov || 60, params.aspect || window.innerWidth / window.innerHeight, params.near || 0.1, params.far || 2000, params.zoom || 1)
    //     camera.name = name;
    // }

    camera.name = name;
    camera.position.set(...position)
    // camera.rotation.set( rotation.x, rotation.y, rotation.z )

    const cameraHitbox = new THREE.Mesh(
        new THREE.BoxGeometry(1, 1, 1),
        new THREE.MeshBasicMaterial({ color: 0xff0000, visible: false }) // hitbox for camera
    );

    cameraHitbox.position.copy(camera.position);
    cameraHitbox.userData.isCameraHitbox = true; // mark as camera hitbox
    // camera.userData.isCamera = true; // mark as actual camera
    cameraHitbox.userData.cameraName = name

    gizmoObjects.push( cameraHitbox )
    sceneObjects[camera.uuid] = name

    scene.add( camera );
    scene.add( cameraHitbox );

    camera.matrixAutoUpdate = true;
    camera.updateProjectionMatrix();

    camera.userData.isSelectable = true;

    if (inEngine === true) {
        const helper = new THREE.CameraHelper( camera );
        scene.add( helper );
    }

    return camera;
}

// if (object.material.opacity < 1) {
//     object.material.transparent = true
// } else {
//     object.material.transparent = false
// }

export { object };

/scripts/editor/gizmo.js

import * as THREE from 'three';
import { TransformControls } from 'three/addons/controls/TransformControls.js';
import { scene, camera, renderer, gizmoObjects, sceneObjects } from './init.js';


// Transform Controls for Gizmos
const transformControls = new TransformControls(camera, renderer.domElement);

// Click detection w/ raycasting
const raycaster = new THREE.Raycaster();
const mouse = new THREE.Vector2();
let selectedObject = null;

var objectSelected = false;


window.addEventListener('keydown', (event) => {
    if (event.key === 'z' || event.key === '1') {
    	transformControls.setMode('translate');	// Move
    };
    if (event.key === 'x' || event.key === '2') {
    	transformControls.setMode('rotate');    // Rotate
    };
    if (event.key === 'c' || event.key === '3') {
    	transformControls.setMode('scale');     // Scale
    };
});

// Click Event Listener
window.addEventListener('pointerdown', (event) => {
    if (event.target !== renderer.domElement) return; // Ignore clicks not on renderer
    if (transformControls.dragging) return; // Ignore clicks while dragging the gizmo

    mouse.x = (event.clientX / window.innerWidth) * 2 - 1;
    mouse.y = -(event.clientY / window.innerHeight) * 2 + 1;

    raycaster.setFromCamera(mouse, camera);
    const intersects = raycaster.intersectObjects(gizmoObjects, true);

    console.log(gizmoObjects)
    console.log(intersects)

    if (intersects.length > 0) {
        selectedObject = intersects[0].object;

        if (selectedObject.userData.isCameraHitbox) {
            selectedObject = scene.getObjectByName(selectedObject.userData.cameraName); // Get the real camera
        }

        transformControls.attach(selectedObject);
        scene.add(transformControls.getHelper());

        var objClickOn = new CustomEvent("objectSelected");
        objClickOn.uuid = selectedObject.uuid; // Attach uuid directly to the event
        objClickOn.obj = selectedObject

        document.dispatchEvent(objClickOn);

    } else {
        transformControls.detach();
        scene.remove(transformControls.getHelper());

        var objClickOff = new CustomEvent("objectUnselected");
        document.dispatchEvent(objClickOff);
    }
});

window.addEventListener('pointerup', (event) => {
    if (event.target !== renderer.domElement) return; // Ignore clicks not on renderer
    if (transformControls.dragging) return; // Ignore clicks while dragging the gizmo

    mouse.x = (event.clientX / window.innerWidth) * 2 - 1;
    mouse.y = -(event.clientY / window.innerHeight) * 2 + 1;

    raycaster.setFromCamera(mouse, camera);
    const intersects = raycaster.intersectObjects(gizmoObjects, true);

    if (intersects.length > 0) {
        var objClickOn = new CustomEvent("objectSelected");
        objClickOn.uuid = selectedObject.uuid; // attach uuid directly to the event
        objClickOn.obj = selectedObject

        document.dispatchEvent(objClickOn);
    }
});

function unselectObject() {
    // transformControls.detach();
    // scene.remove(transformControls.getHelper());

    var objClickOff = new CustomEvent("objectUnselected");
    document.dispatchEvent(objClickOff);
};

export { objectSelected, transformControls, unselectObject }

// Animation Loop
function animate() {
    requestAnimationFrame(animate);
    renderer.render(scene, camera);
}
animate();

no matter what i do, i cant figure it out ;-;

Thank you for your time, in advance :top_hat:
